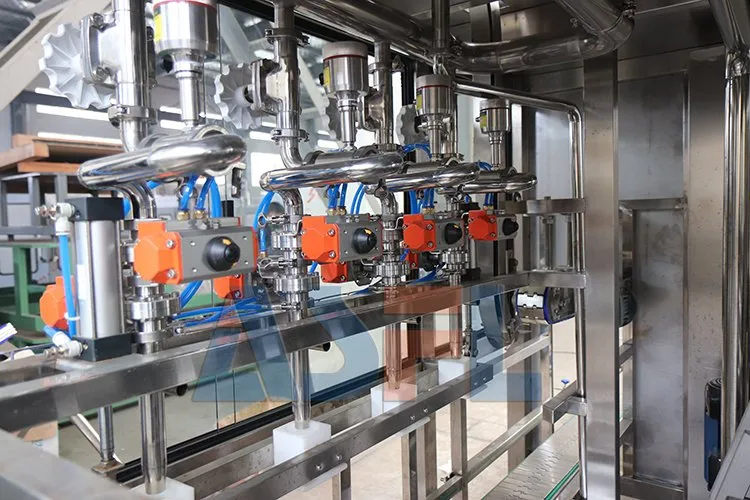

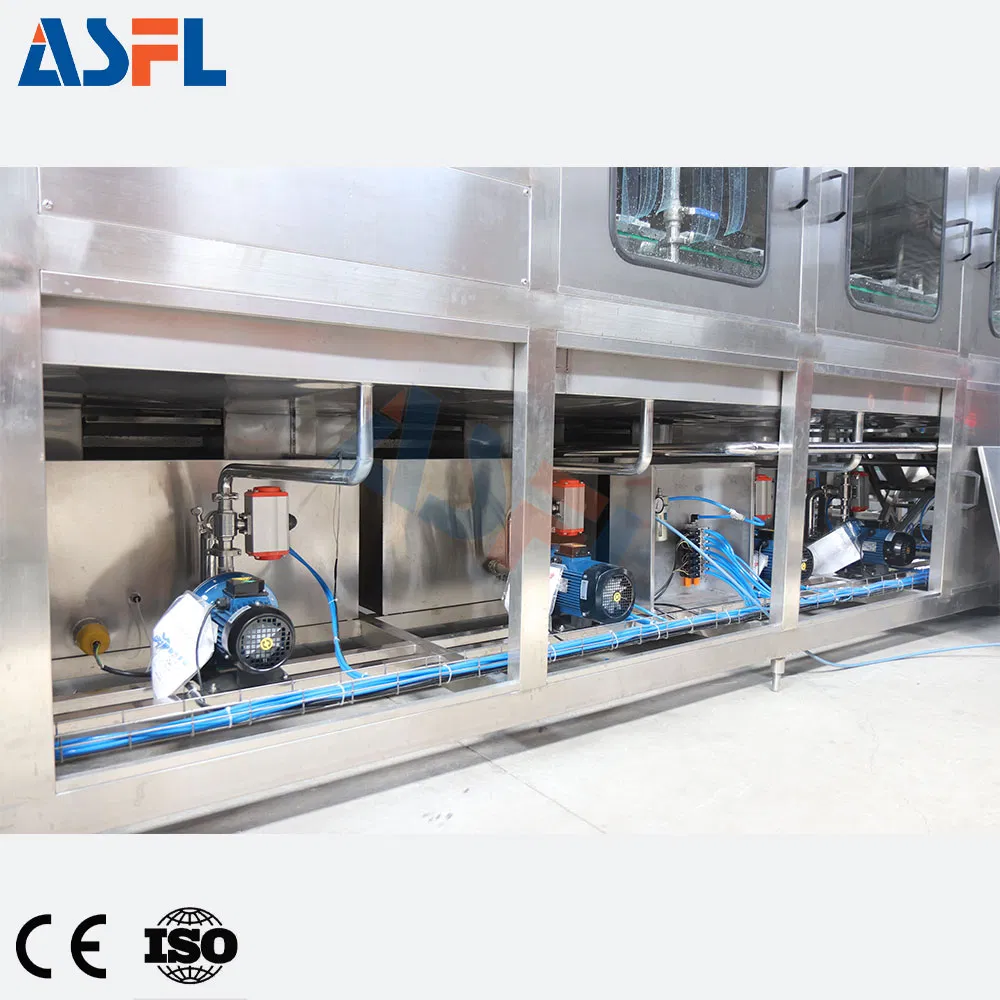

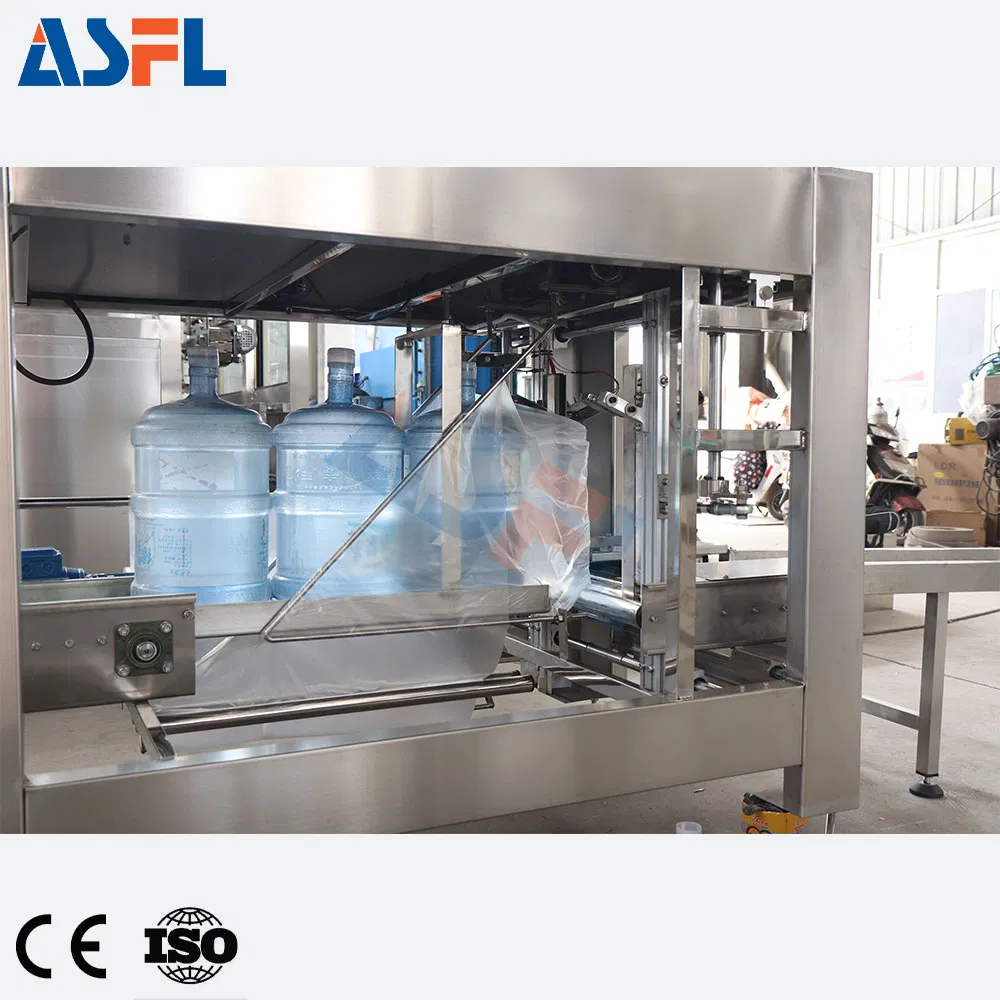

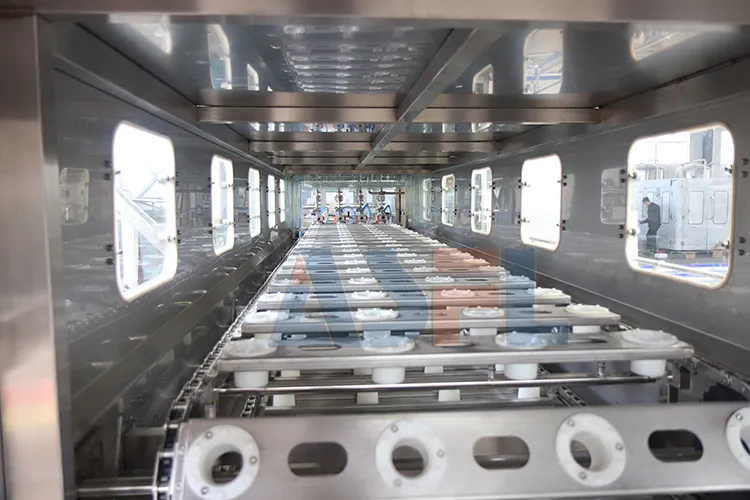

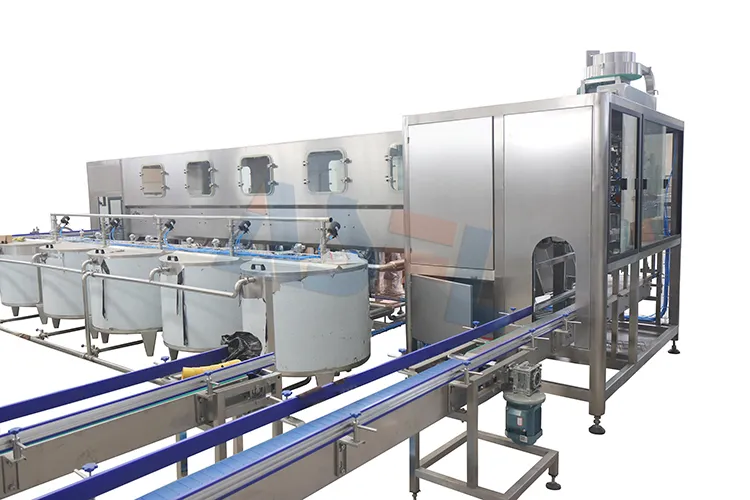

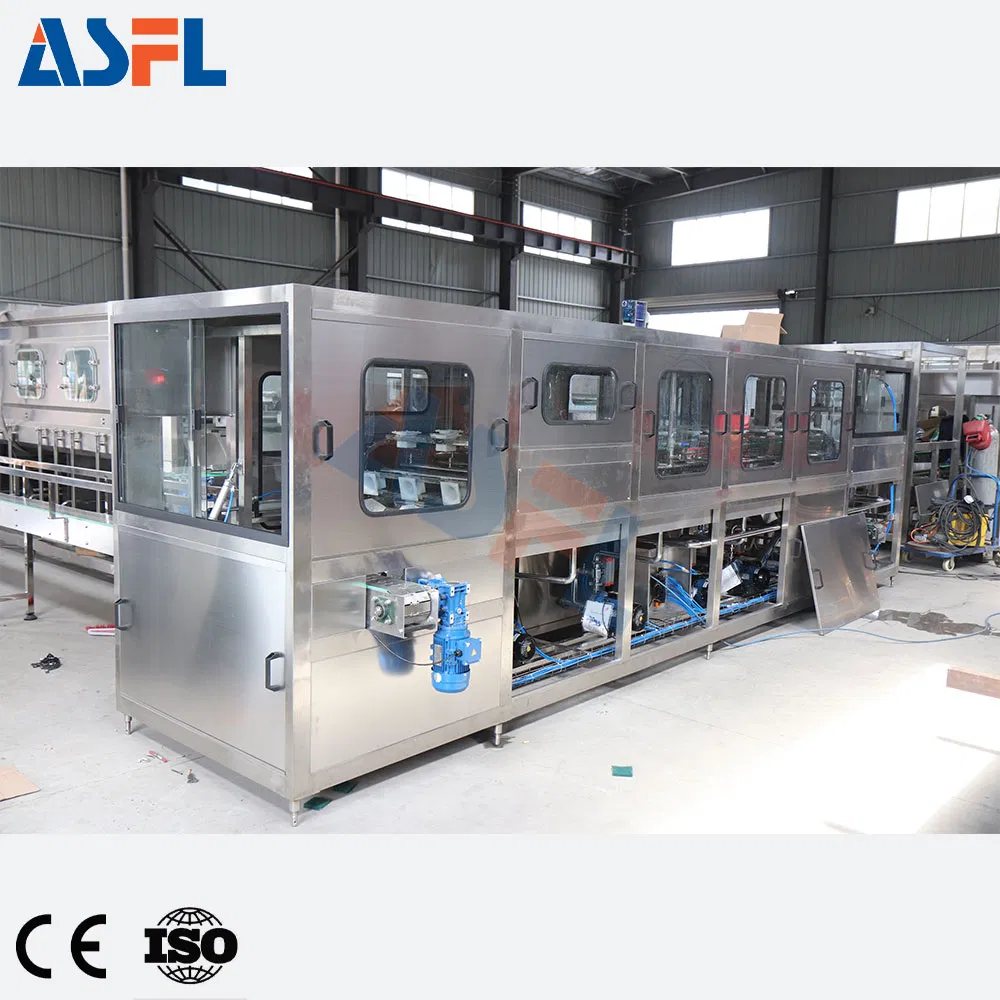

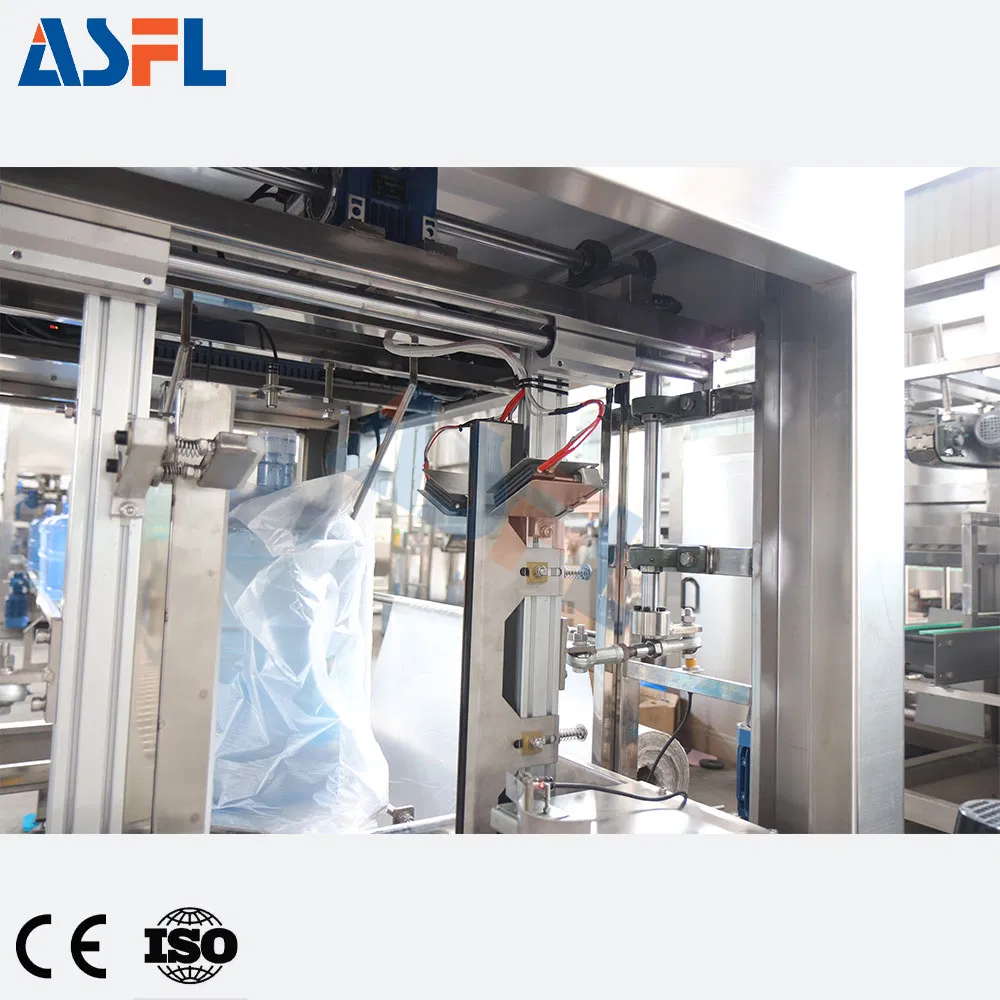

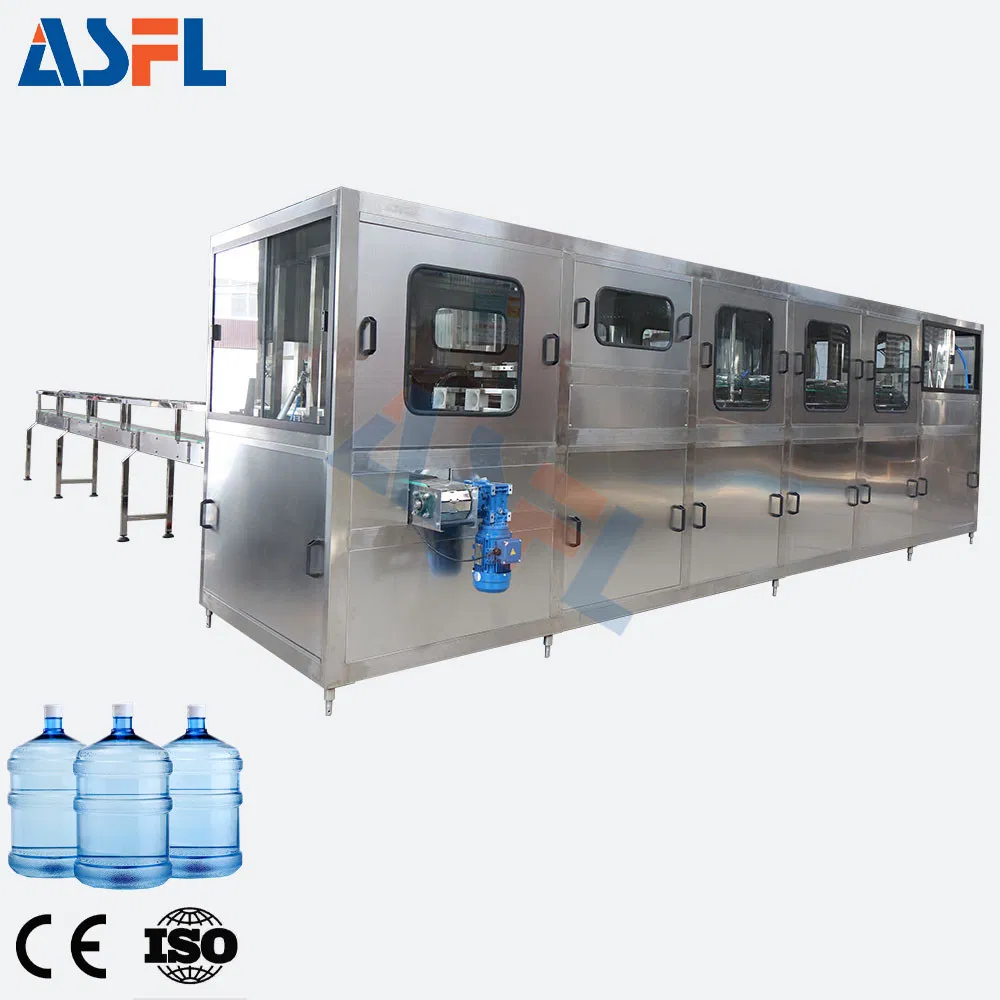

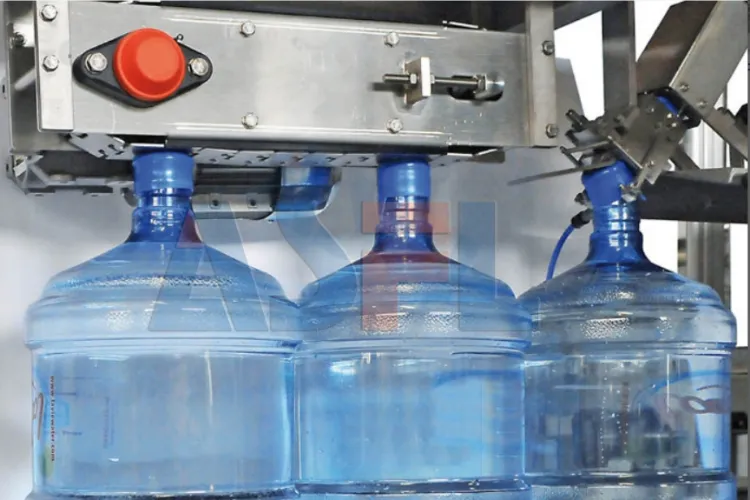

This equipment is mainly composed of five gallons of automatic adjustment available outside the pull out cover machine, rotary brush barrels machines, automatic bucket machine, washing machine, normal pressure filling machine, cover, capping machine, intelligent steam heat shrinkable machine, on-line inspection, straight-line pail bagging machine, and palletizing machine set, connected by a conveying system into a continuous flow operation.
| Final Product Specifications | ||
|---|---|---|
|
Equipment Type | Automatic |
| Bottle Type | 3-5 Gallon Barrel | |
| Capacity (5 gallon / 18.9L) | Up to 1500BPH | |
| Your Product | Mineral Water / Pure Water / Non-gas Wine Drink, etc. | |
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
|---|---|---|---|---|---|---|
| Capacity (for 5 gallon) | 150 | 300 | 450 | 600 | 900 | 1200 |
| Suitable Bottle Shapes | PET PC Circular or Square | |||||
| Bottle Volume | 3 & 5 Gallon | |||||
| Compressed Air | 0.3 - 0.7Mpa | |||||
| Rinsing Pressure | >0.06Mpa <0.2Mpa | |||||
| Total Power (KW) | 1.75kw | 3.8kw | 5.5kw | 7.5kw | 9kw | 12kw |
| Overall Dimensions | 2.5 * 1.1m | 23.5 * 1.3m | 4.2 * 1.6m | 4.8 * 1.8m | 5 * 2m | 5.5 * 2.3m |
| Height | 1.8m | 2m | 2m | 2.2m | 2.3m | 2.5m |
| Weight (kg) | 800kg | 1500kg | 2000kg | 2500kg | 3000kg | 3500kg |
Bottle Water Filling / Carbonated Soft Drink Filling / Juice Tea Hot Filling
3-5 Gallon Barrel Water Filling / 3-10L Big Bottle Water Filling / Glass Bottle Filling

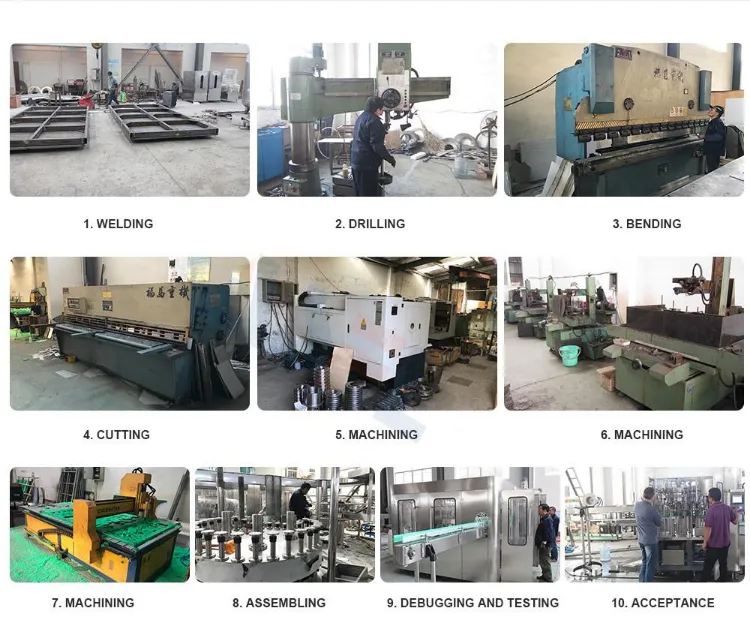

In the production process, we strictly control the quality of the product. It consists of ten processes, including welding, drilling, bending, machining, assembling, debugging & test, and acceptance. After repeated testing, the equipment is finally put into use.
