Advanced Automated Bulk Material Weighing and Packing System

Basic Info

Model NO.

ATP-1600

Application

Powdered Materials, Plastic Pellets, Feed, etc

Packaging Material

Carbon Steel Powder Coating / 304 Stainless Steel

Feeding Method

Gravity Feeding, Horizontal (Vertical) Screw Feed

Main Unit Dimensions

3500 (L) × 2800 (W) × 3000 (H) mm

Total Power

Approx. 13 Kw

Total Weight

3.5 - 6 Tons

Load Cell Accuracy Grade

C3/C6/C10 (Selectable)

Weighing Accuracy

±0.1%

Packaging Speed

5 - 15 Bags/Hour

Bag Storage Capacity

5 - 20 Bags (Expandable)

Control Method

PLC + Touchscreen

Power Supply

380V, Five-Wire Three-Phase

Air Source

0.5-0.7 MPa

Noise Level

≤80 dB (at 1 Meter From Equipment)

Communication Protocol

Supports Pn, Dp, 485, etc. (Optional)

Specification

300-1000 kg/bag

Origin

China

Product Description

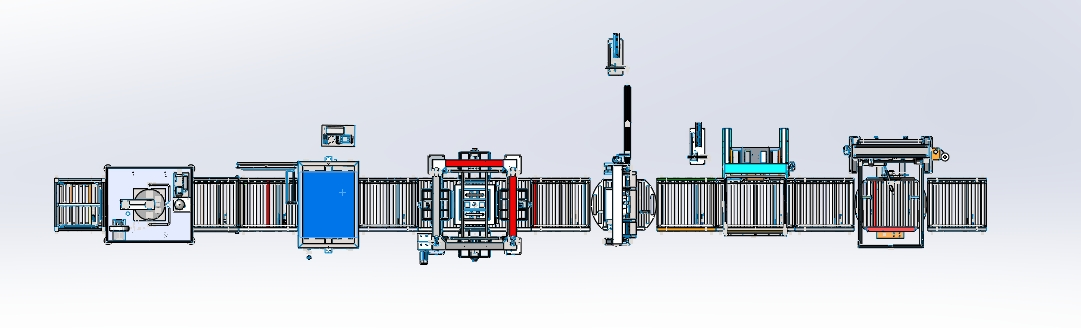

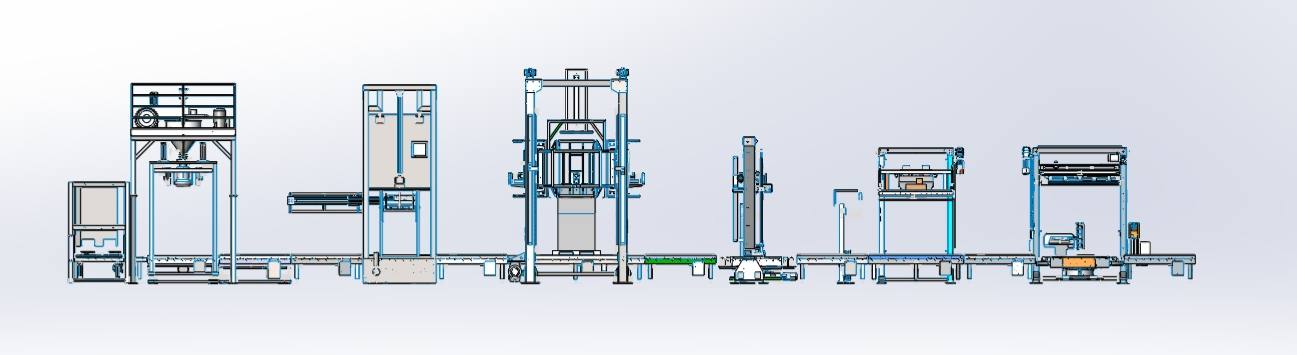

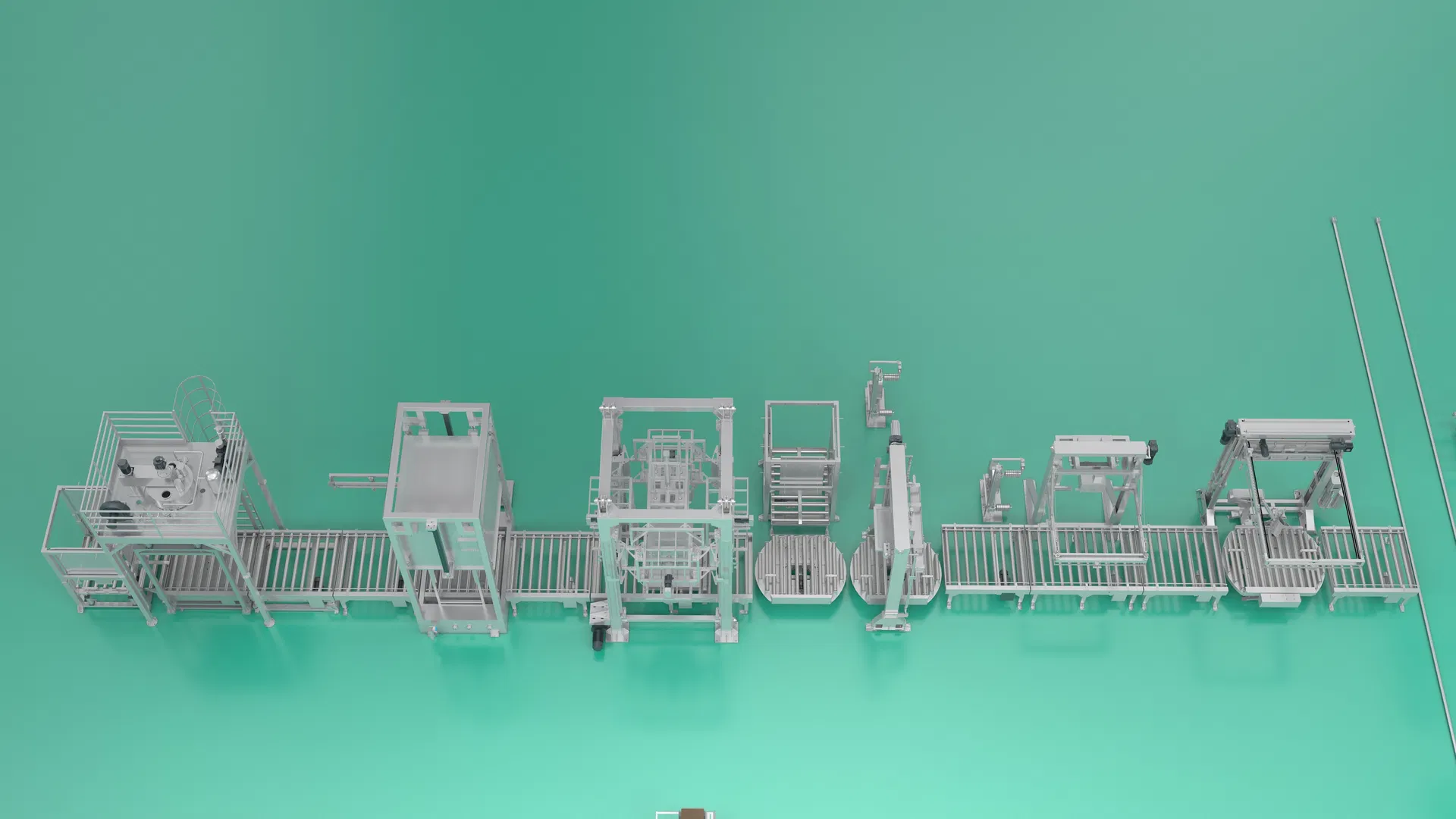

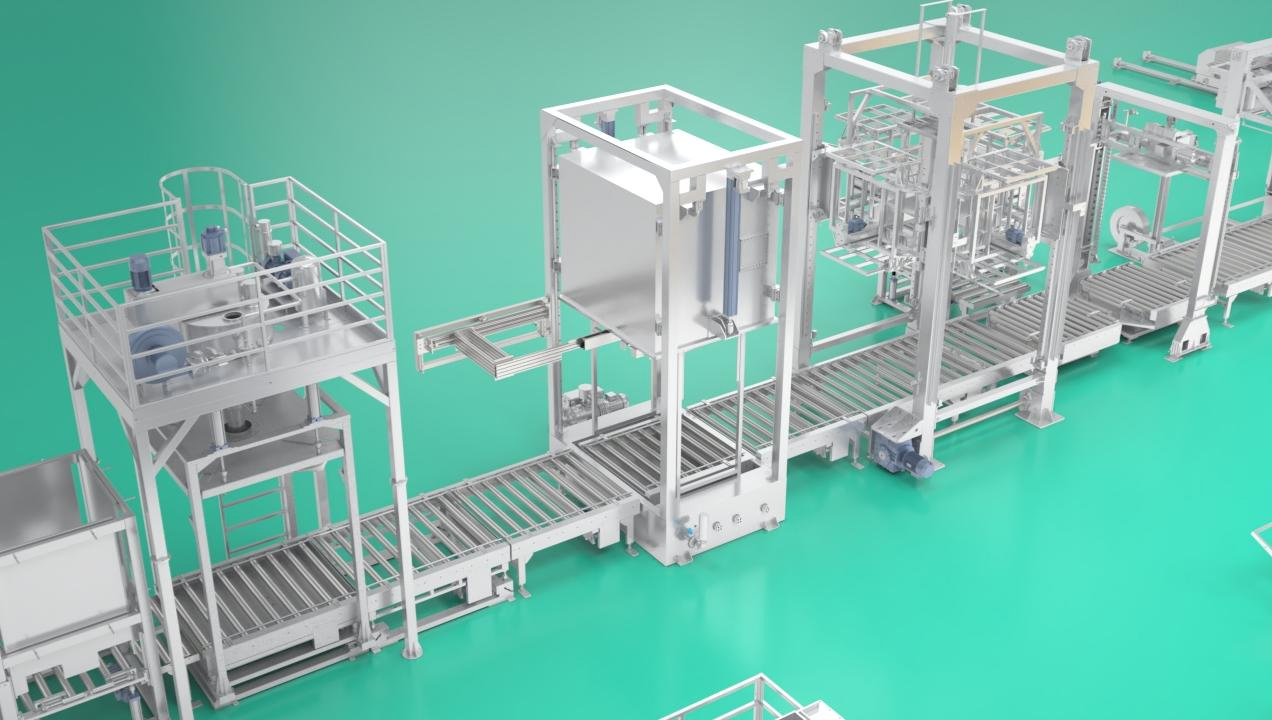

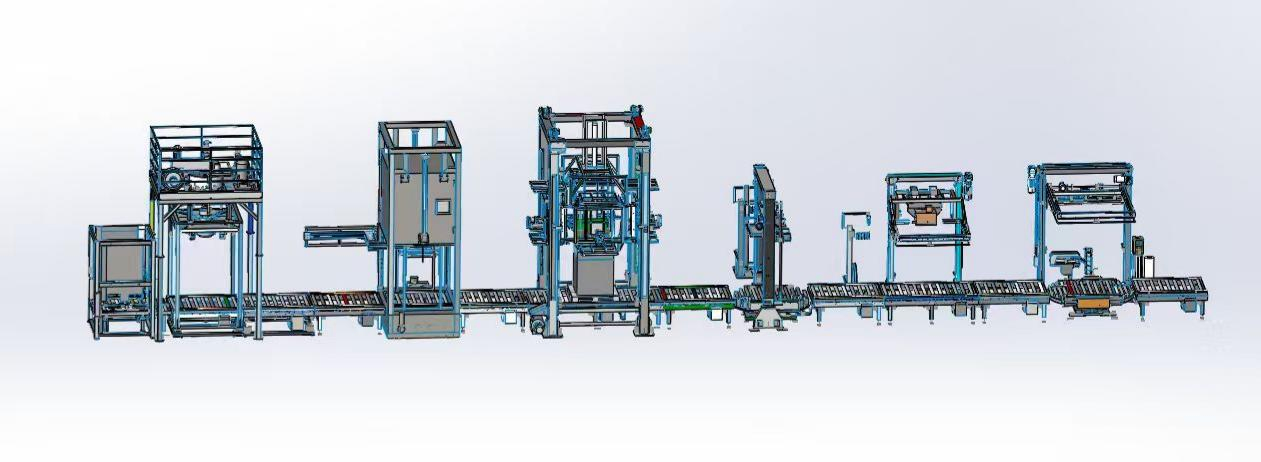

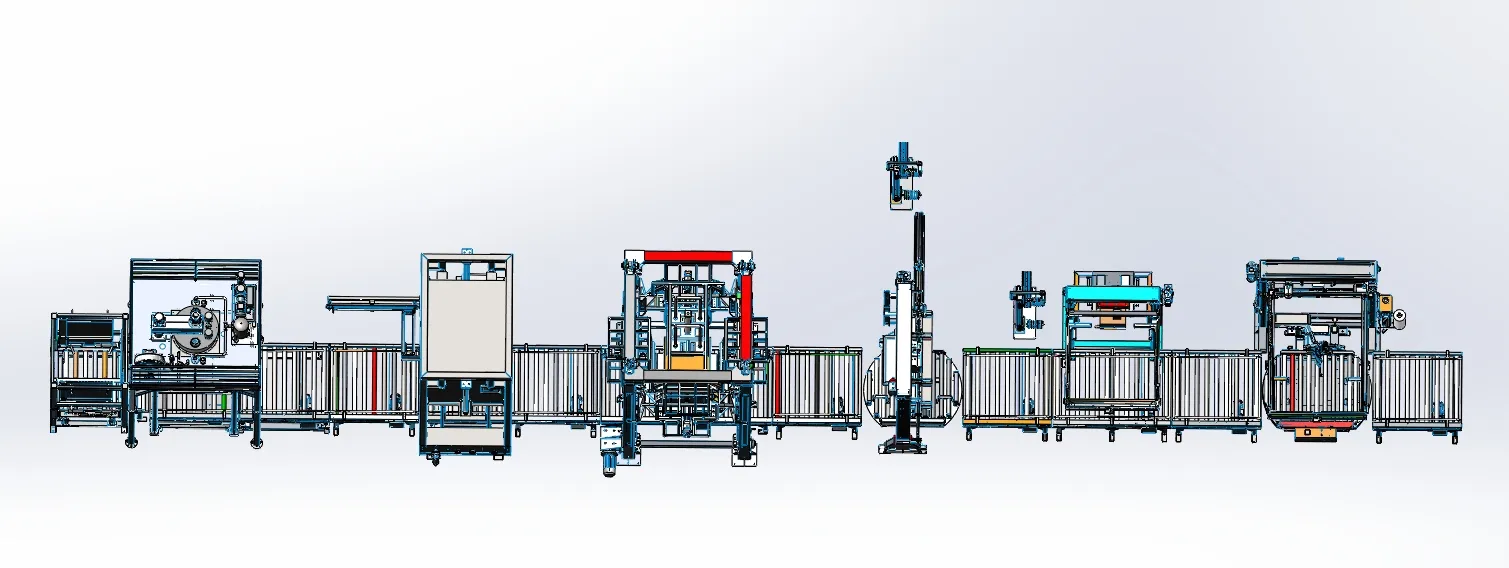

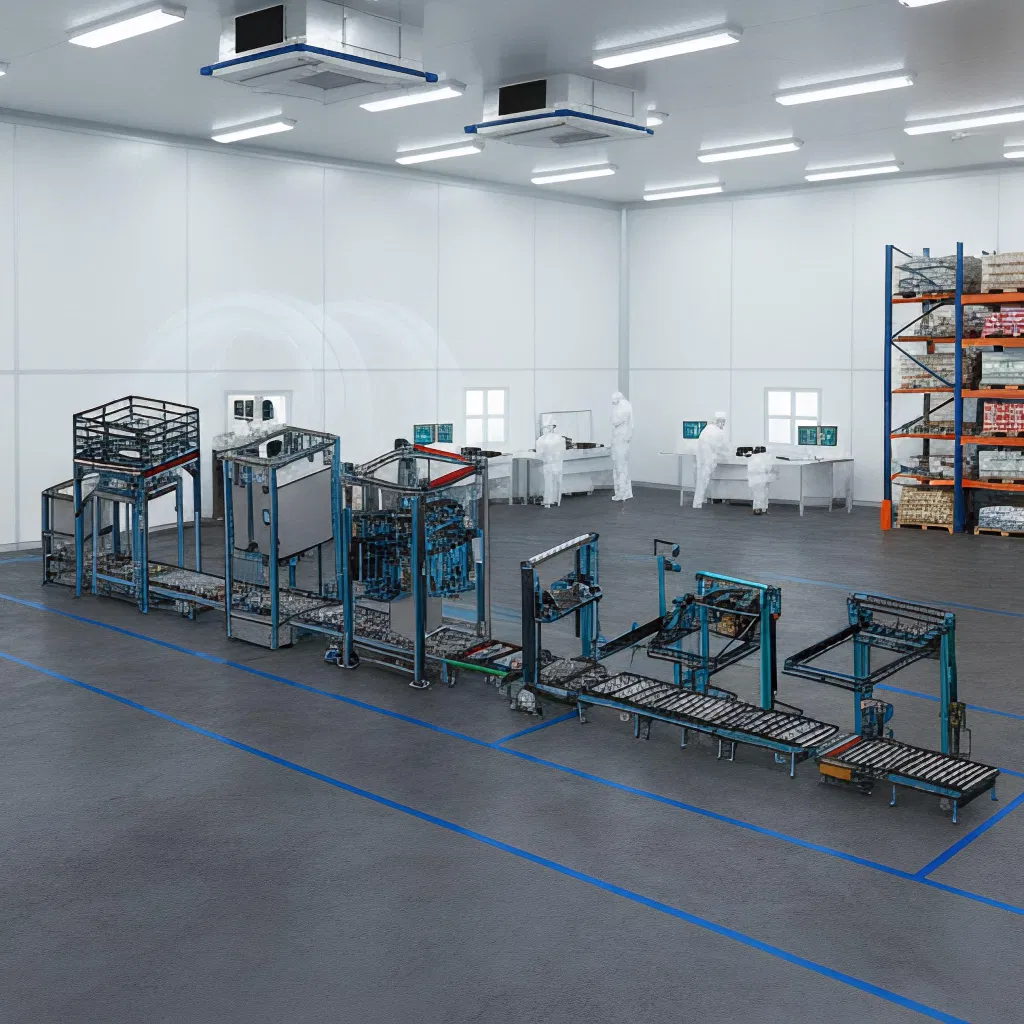

Fully Automatic Ton Bag Packaging Machine

The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.

Advanced Automated Bulk Material Weighing and Packing System

Structural Advantages

⚙

Modular Design

Optional integration of functions including hot sealing, re-inspection, metal detection, and vacuum sealing based on requirements.

🛡

Safety Design

Complies with international PL d safety standards to ensure secure operational procedures.

⚖

Precise Measurement

High-accuracy net-weight electronic scale with strong anti-interference capability and stable continuous operation.

🗂

Bag Loading System

Chain conveyor with centering adjustment; specialized suction cups accommodate various flexible bags; automatic bag detection compatible with M-fold and pillow-style bags.

🔗

Stable Bag Transfer

Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.

Product Specifications
Feeding Method	Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications	300 - 1000 kg/bag
Main Unit Dimensions	3500 (L) × 2800 (W) × 3000 (H) mm
Total Power	Approx. 13 kW
Total Weight	3.5 - 6 tons
Load Cell Accuracy Grade	C3/C6/C10 (optional)
Measurement Accuracy	±0.1%
Packaging Speed	5 - 15 bags/hour (depending on material and feeding mode)
Bag Storage Capacity	5 - 20 bags (expandable)
Control Method	PLC + Touchscreen
Power Supply	380V, Five-wire Three-phase
Air Source	0.5-0.7 MPa
Noise Level	≤80 dB (at 1 meter from equipment)
Exterior Material	Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional)
Communication Protocol	Supports PN, DP, 485, etc. (optional)
