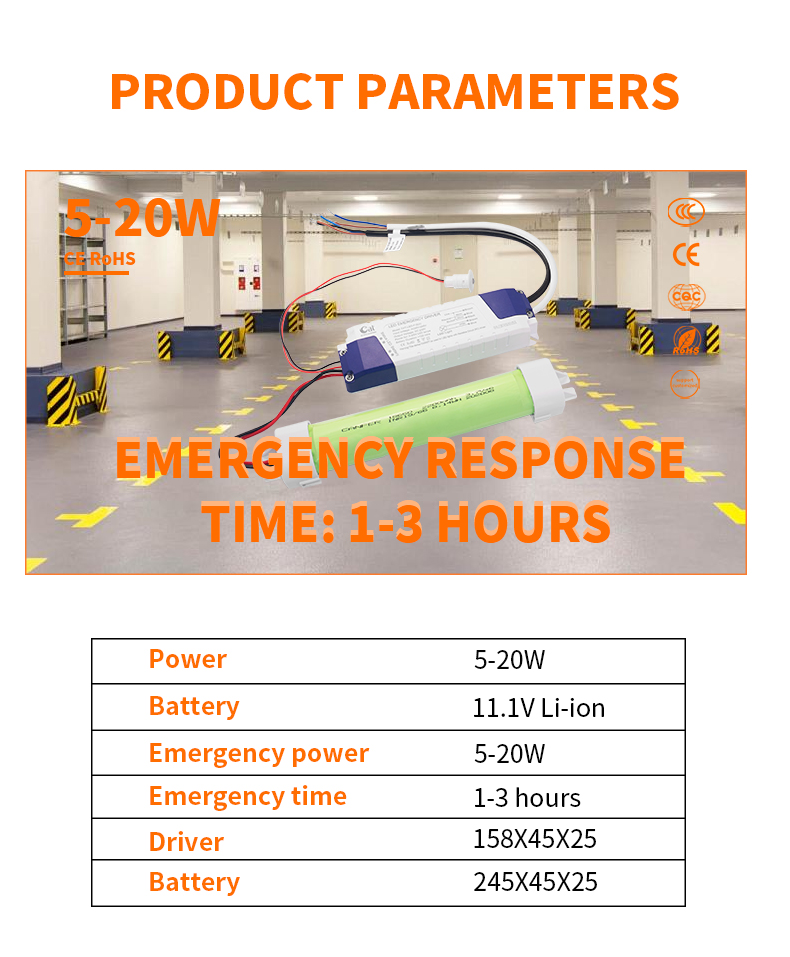

| Model | FAT-LED-F1E(A) | Charging Time | 24 Hours |
| Input Voltage | AC 176V-265V | IP Rating | IP30 |

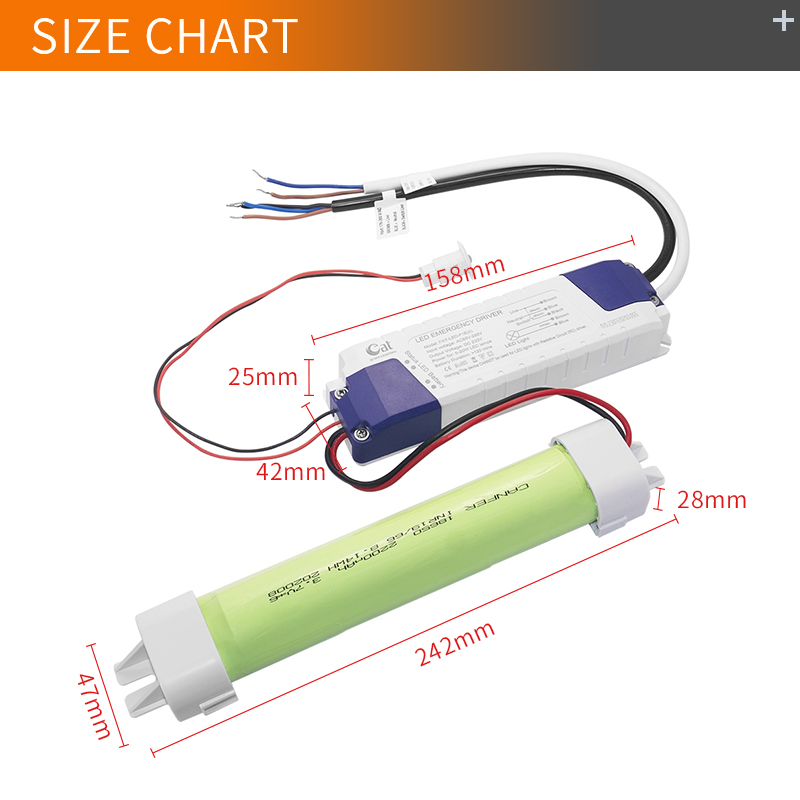

| Input Power | 5-20W (MAX: 25W) | Dimension | 158*42*25 mm |
| Output Power | FULL OUTPUT 5-20W | Working Temperature | -15°C to 40°C |
| Type of Lamp | LED luminaire with external LED driver | Switching time to emergency | 2s |

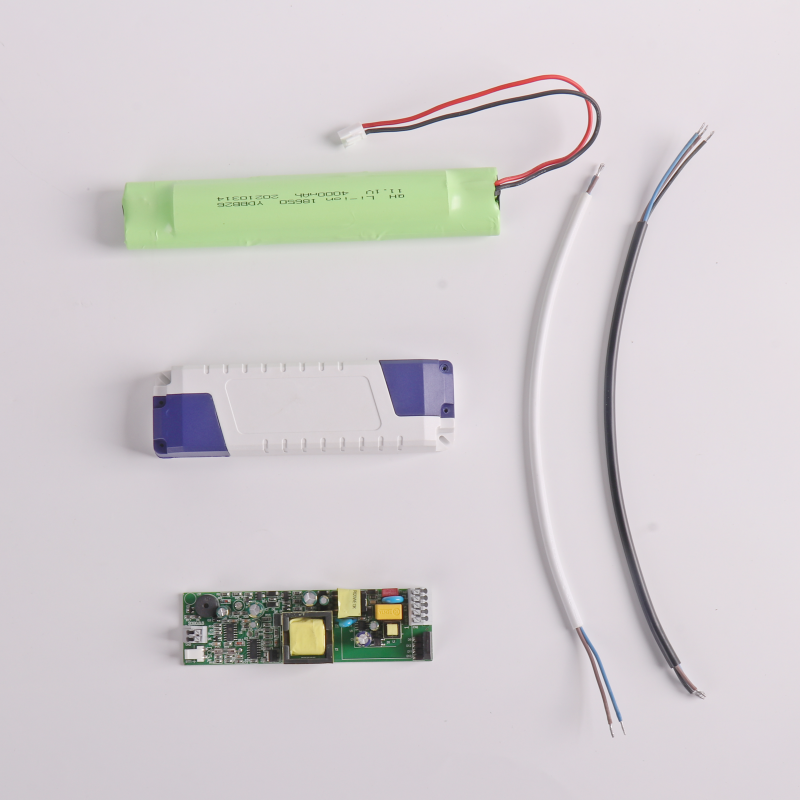

| Battery | Li-ion 11.1V 4400mAh | Backup Duration | 2-3 hours |
The F1E emergency driver features automated monthly and annual self-inspections. This continuous monitoring mechanism ensures potential faults are detected and corrected instantly without risking emergency readiness.
| Status Indicator | Diagnostic Analysis |
|---|---|
| Red Light ON | Full charge / Emergency mode active |
| Red & Green Flashing | Battery Fault (Alternating pattern) |
| Green Light (1Hz Flash) | Emergency status active |
| Green Light (3Hz Flash) | Undergoing monthly self-inspection |
| Green Light (5Hz Flash) | Undergoing annual self-inspection |
| Yellow Light (1Hz Flash) | Performing routine monthly/annual diagnostics |
| Yellow Light (3Hz Flash) | Load disconnected detected during self-check |
| Yellow Light (5Hz Flash) | Load short-circuit detected during self-check |

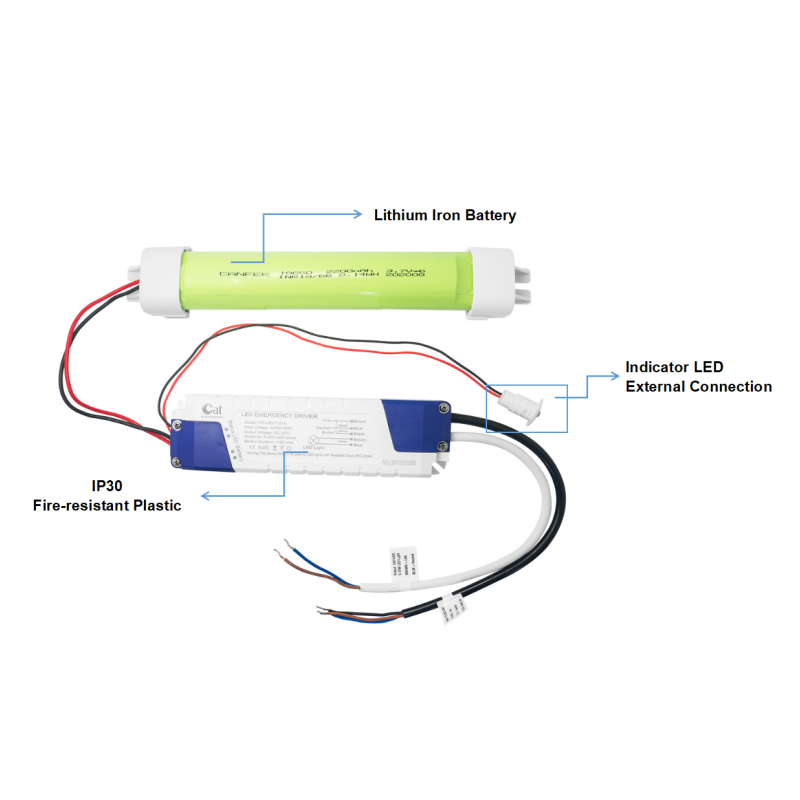

The emergency backup duration is between 2 to 3 hours, powered by a robust and long-lasting Li-ion 11.1V 4400mAh internal battery.
The driver performs automatic monthly and annual diagnostic tests. Visual alerts are displayed via colored indicator lights (Red, Green, and Yellow) to indicate system checks, standard operations, battery issues, or load errors.
The unit includes comprehensive protection features: no-load protection, short circuit protection, overcharge protection, over-discharge protection, and reverse polarity protection.
It is designed for LED luminaires utilizing external drivers. It is suitable for setups from 5W to 20W (with a maximum load capacity of 25W), outputting full power during emergencies.
The battery requires approximately 24 hours of charging to reach full capacity and ensure maximum emergency operation time.
