High-Performance Large Bag Automatic Packing Machine System

Basic Info.

Model NO.

ATP-1600

Application

Powdered Materials, Plastic Pellets, Feed, etc

Packaging Material

Carbon Steel Powder Coating / 304 Stainless Steel

Feeding Method

Gravity Feeding, Horizontal (Vertical) Screw Feed

Main Unit Dimensions

3500 (L) × 2800 (W) × 3000 (H) mm

Total Power

Approx. 13 Kw

Total Weight

3.5 - 6 Tons

Load Cell Accuracy Grade

C3/C6/C10 (Selectable)

Weighing Accuracy

±0.1%

Packaging Speed

5 - 15 Bags/Hour

Bag Storage Capacity

5 - 20 Bags (Expandable)

Control Method

PLC + Touchscreen

Power Supply

380V, Five-Wire Three-Phase

Air Source

0.5 - 0.7 MPa

Noise Level

≤80 dB (at 1 Meter From Equipment)

Communication Protocol

Supports Pn, Dp, 485, etc. (Optional)

Specification

300-1000 kg/bag

Origin

China

Product Description

Fully Automatic Ton Bag Packaging Machine

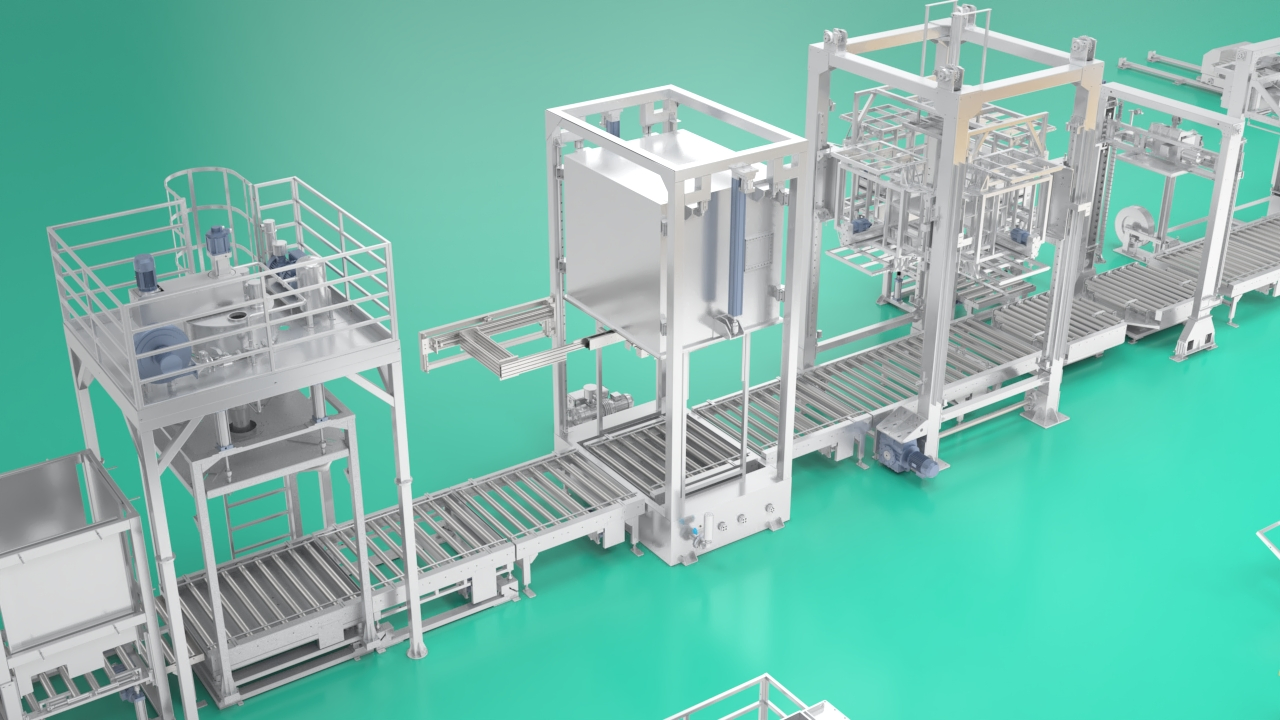

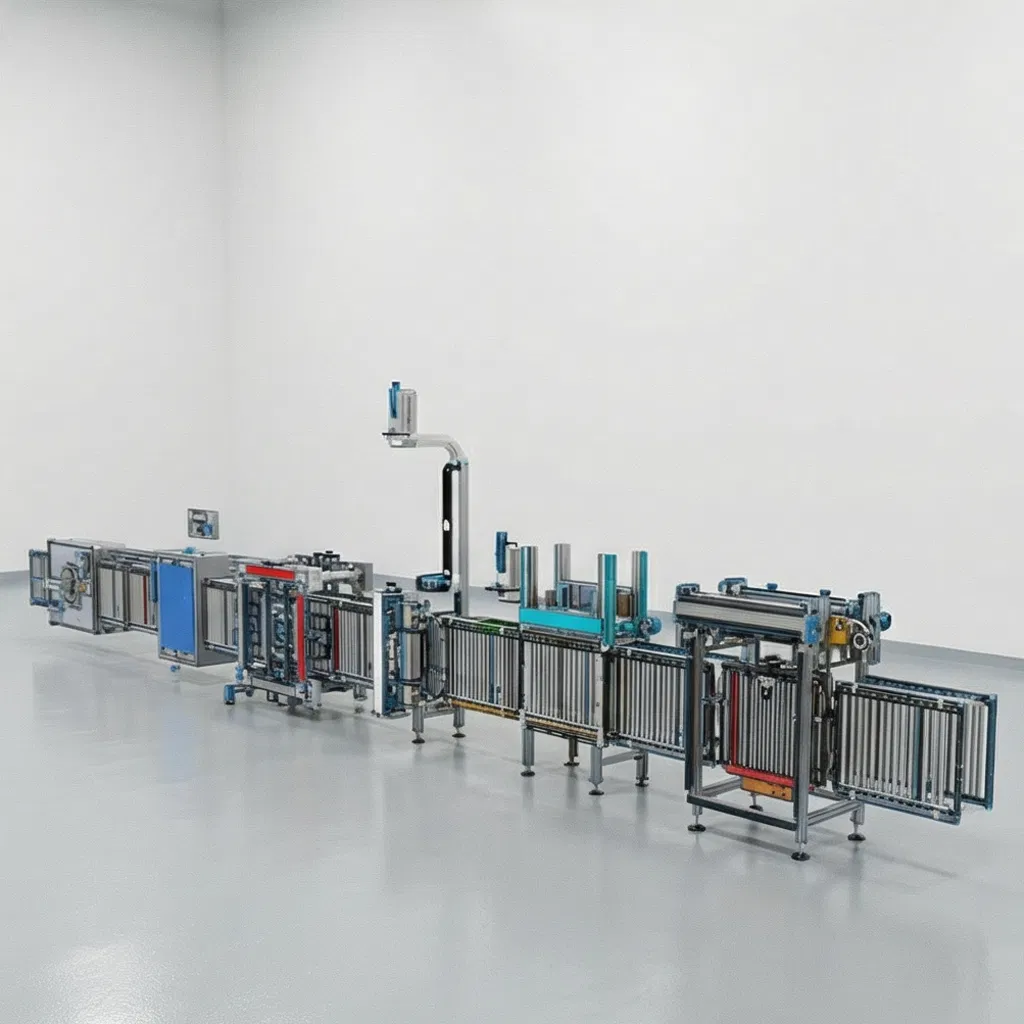

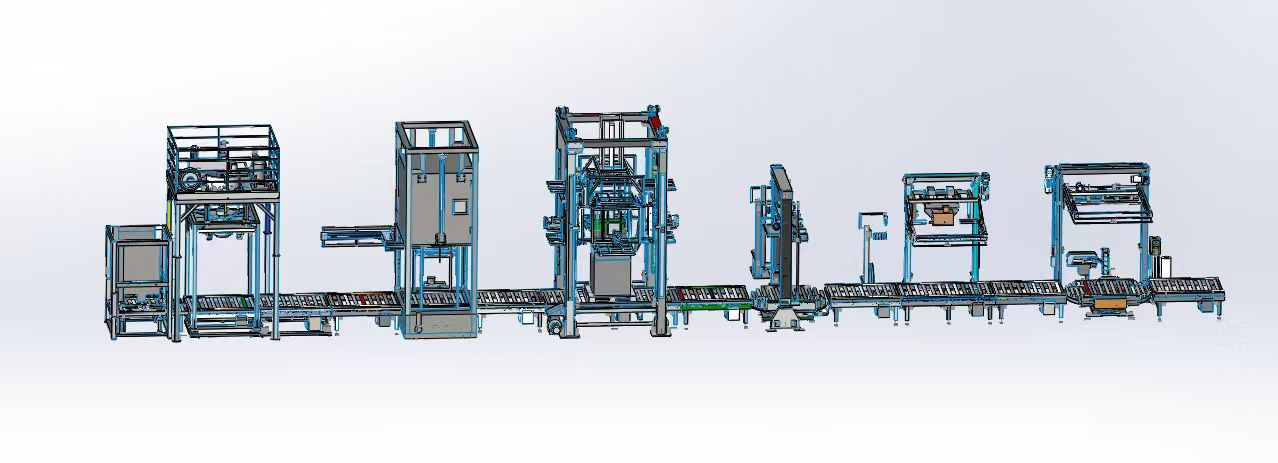

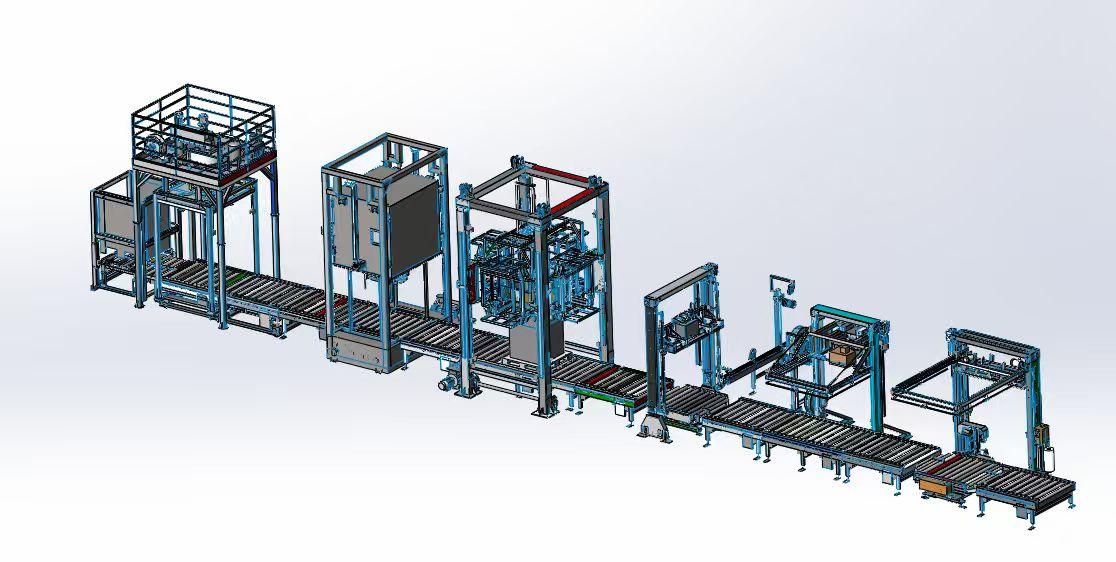

The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.

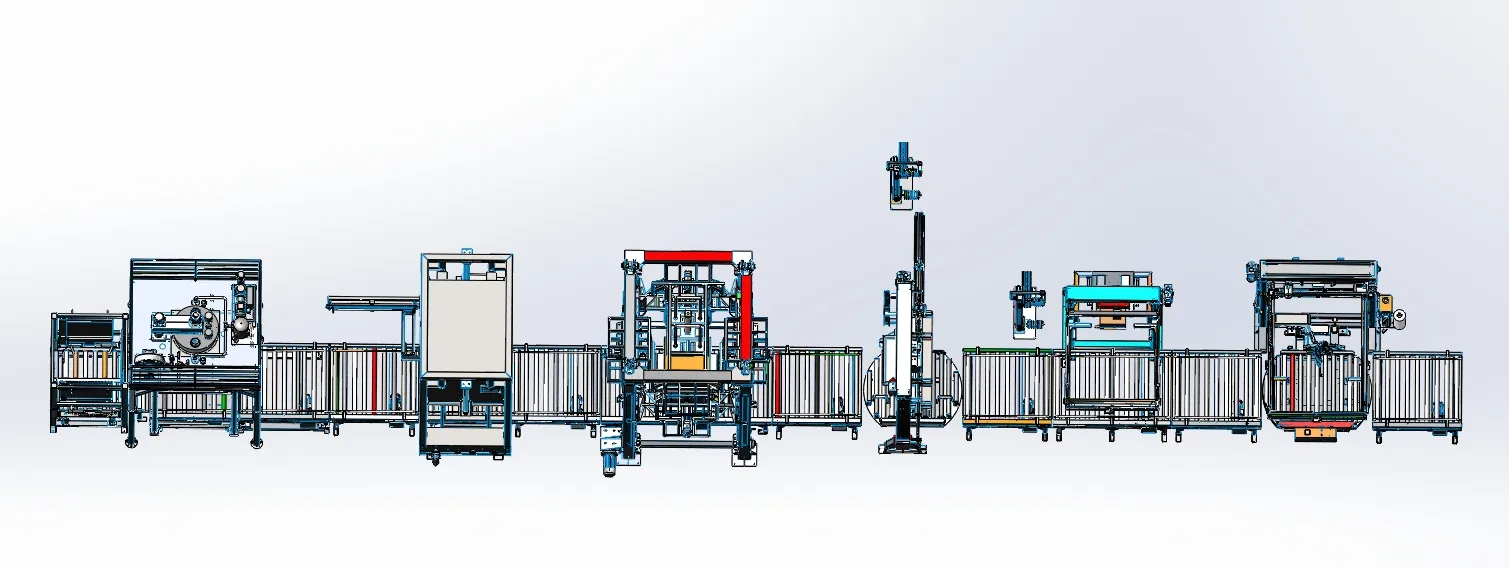

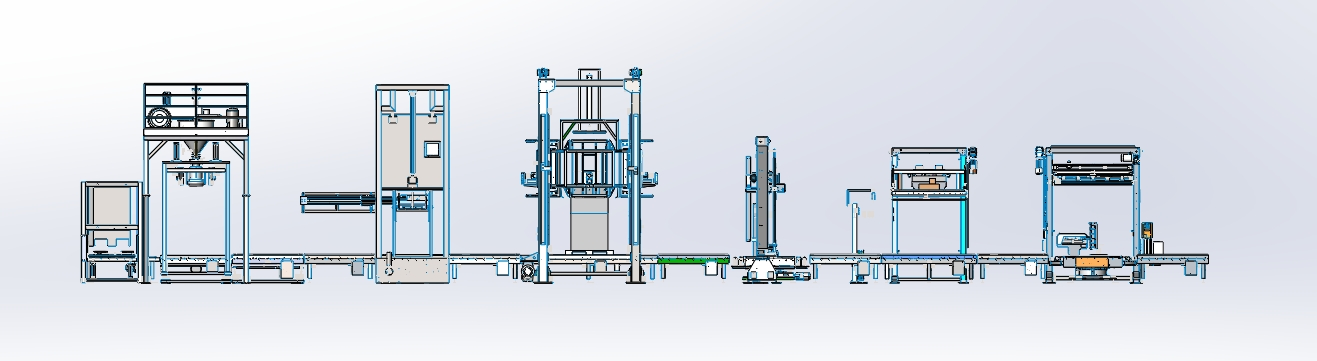

High-Performance Large Bag Automatic Packing Machine System

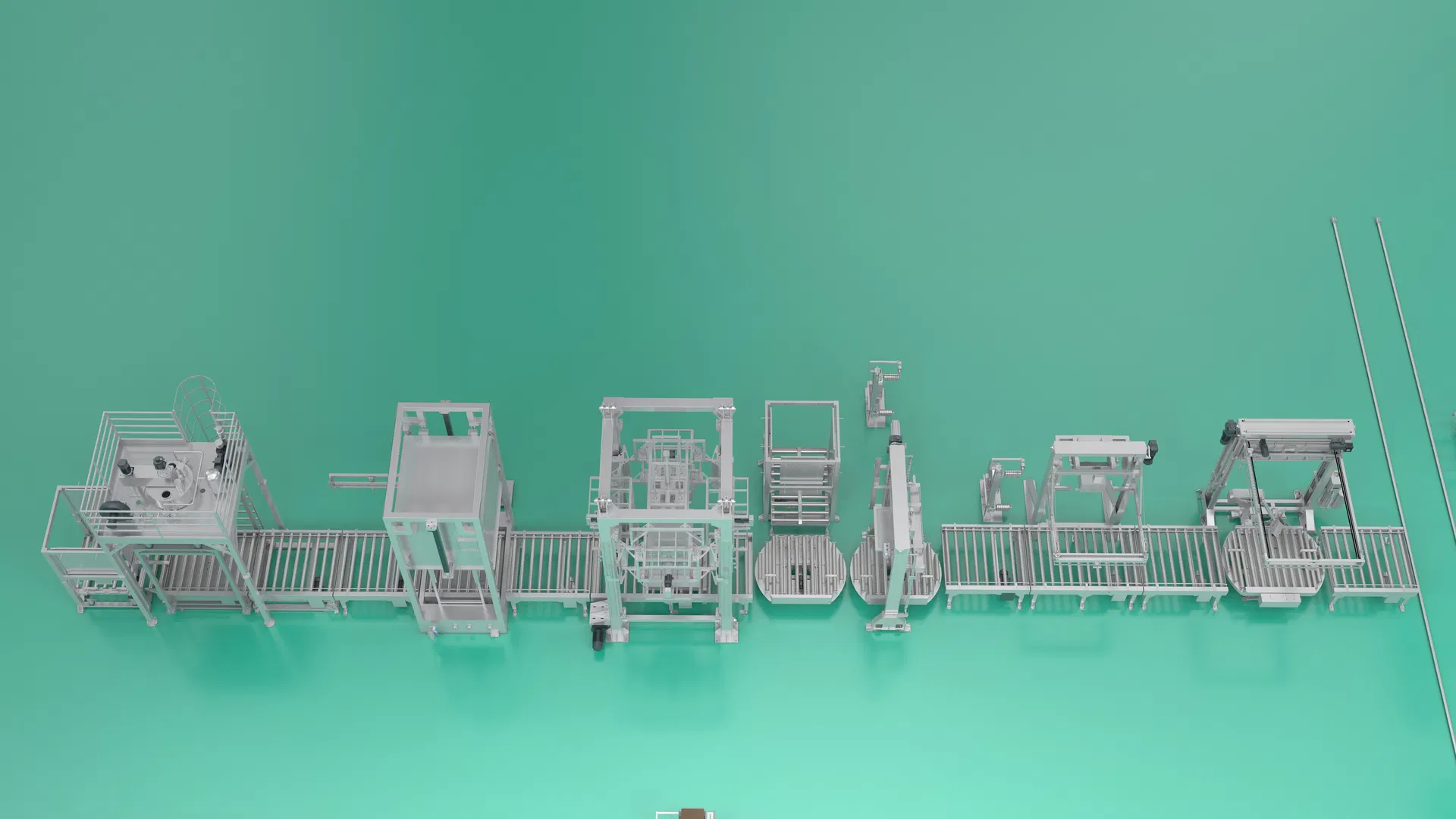

High-Performance Large Bag Automatic Packing Machine System Detail

Structural Advantages

Modular Design: Optional integration of functions including hot sealing, re-inspection, metal detection, and vacuum sealing based on requirements.
Safety Design: Complies with international PL d safety standards.
Precise Measurement: High-accuracy net-weight electronic scale with strong anti-interference capability and stable continuous operation.
Bag Loading System: Chain conveyor with centering adjustment; specialized suction cups accommodate various flexible bags; automatic bag detection compatible with M-fold and pillow-style bags.
Stable Bag Transfer: Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.

Product Specifications

Parameter	Specification Details
Feeding Method	Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications	300 - 1000 kg/bag
Main Unit Dimensions	3500 (L) × 2800 (W) × 3000 (H) mm
Total Power	Approx. 13 kW
Total Weight	3.5 - 6 tons
Load Cell Accuracy Grade	C3/C6/C10 (optional)
Measurement Accuracy	±0.1%
Packaging Speed	5 - 15 bags/hour (depending on material and feeding mode)
Bag Storage Capacity	5 - 20 bags (expandable)
Control Method	PLC + Touchscreen
Power Supply	380V, Five-wire Three-phase
Air Source	0.5-0.7 MPa
Noise Level	≤80 dB (at 1 meter from equipment)
Exterior Material	Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional)
Communication Protocol	Supports PN, DP, 485, etc. (optional)

Main Products

Company Profile

We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment. Our company was established in 2014.

Our primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines and portable IBC.

As a high-tech enterprise, we have profound technical strength and advanced production techniques. We have established a scientifically structured talent pipeline, boasting an engineering team anchored by numerous senior and intermediate technical professionals. This includes specialized technical personnel holding master's and bachelor's degrees, with some members certified as National Senior Engineers.

We have acquired the ISO9001-2015 quality certificate and numerous patents. In 2022, our products obtained the CE certificate. Our customers include world-famous companies like LG Chem, EASPRING, STANLEY, WANHUA, Clearway, BTR, CP GROUP, etc.

We have been upholding the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving" to provide customers with high-quality products and reliable solutions. We strive to bring major innovation and changes to the industry. We look forward to partnering with you to become your trusted long-term collaborator.

Packaging & Shipping

Standard Export Wooden Case Packing and Container Loading

Our Service

📋Pre-sale Service

We accept your inquiries and organize our engineers to analyze your requirements for the equipment. We will provide you with a suitable and detailed technical proposal.

🛠️After-sales Service

One-year warranty and lifetime service under normal circumstances.
Sufficient inventory of wear parts, consumables, and critical components for prompt replacement.
24-hour after-sales support via website and helpline resources.
On-site or video installation guidance and periodic evaluation visits.

Frequently Asked Questions (FAQ)

1. Are you a manufacturer or a trading company?

We are a professional manufacturer with licenses for exporting and importing. We control the complete process from design to manufacturing.

2. What is your main business scope?

We are dedicated to providing our customers with a wide range of packaging equipment alongside robust material handling and transfer systems.

3. What are your main types of packaging products?

Our main products include fully automatic and semi-automatic small bag packaging machines, automatic ton bag packaging machines, quantitative packaging scales, bag-opening machines, mobile IBC containers, and unloading stations.

4. Do you accept customization for your machinery?

Yes. We design and manufacture all equipment based on the actual requirements of our clients. Please share your detailed specifications with us, and we will customize a layout for you.

5. Which industries can your packaging equipment be applied to?

Our machinery is applicable to any industry handling powdered, granular, flaked, or mixed raw materials, including chemicals, plastics, agriculture, and mining.

6. What is the typical delivery lead time for orders?

Generally, packaging scales take up to 30 working days. Complete packaging machines require 30 to 60 working days, and specialized IBC tanks take 45 to 60 working days depending on quantity and configuration.
