High-Efficiency Ton Bag Wrapping System for Seamless Packaging

Basic Info Overview

Model NO.

ATP-1600

Application

Powdered Materials, Plastic Pellets, Feed, etc

Packaging Material

Carbon Steel Powder Coating / 304 Stainless Steel

Feeding Method

Gravity Feeding, Horizontal (Vertical) Screw Feed

Main Unit Dimensions

3500 (L) × 2800 (W) × 3000 (H) mm

Total Power

Approx. 13 Kw

Total Weight

3.5 - 6 Tons

Weighing Accuracy

±0.1%

Packaging Speed

5 - 15 Bags/Hour

Control Method

PLC + Touchscreen

Origin

China

Specification

300-1000 kg/bag

Product Description

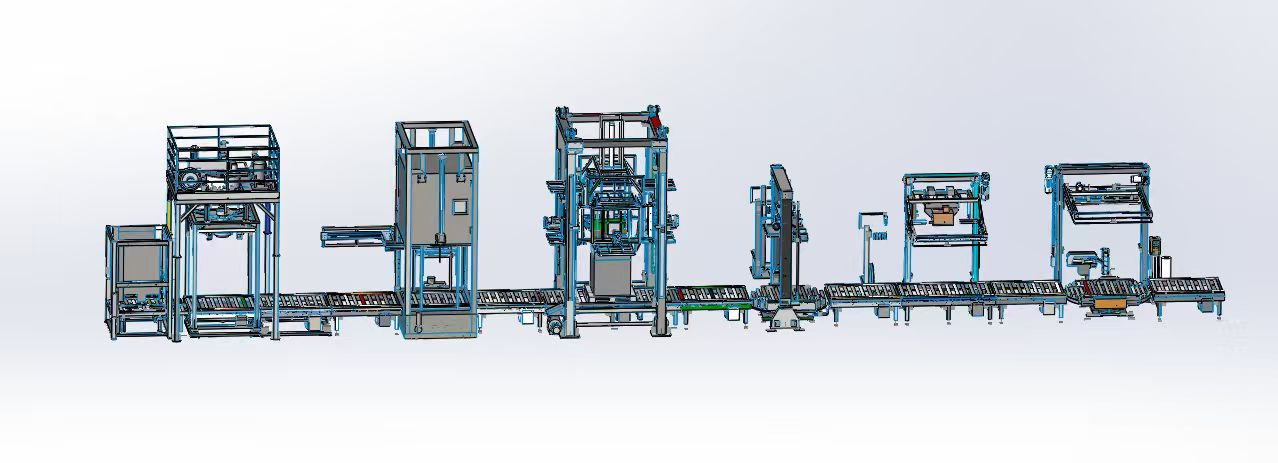

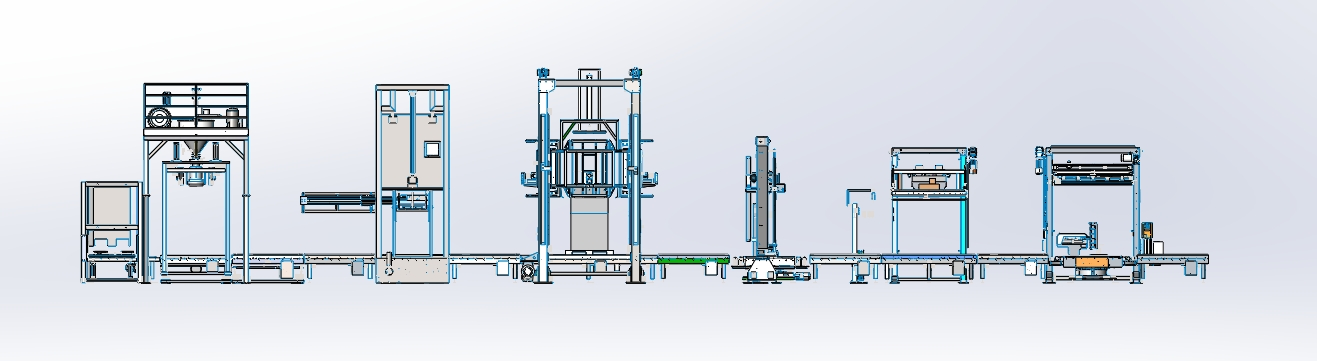

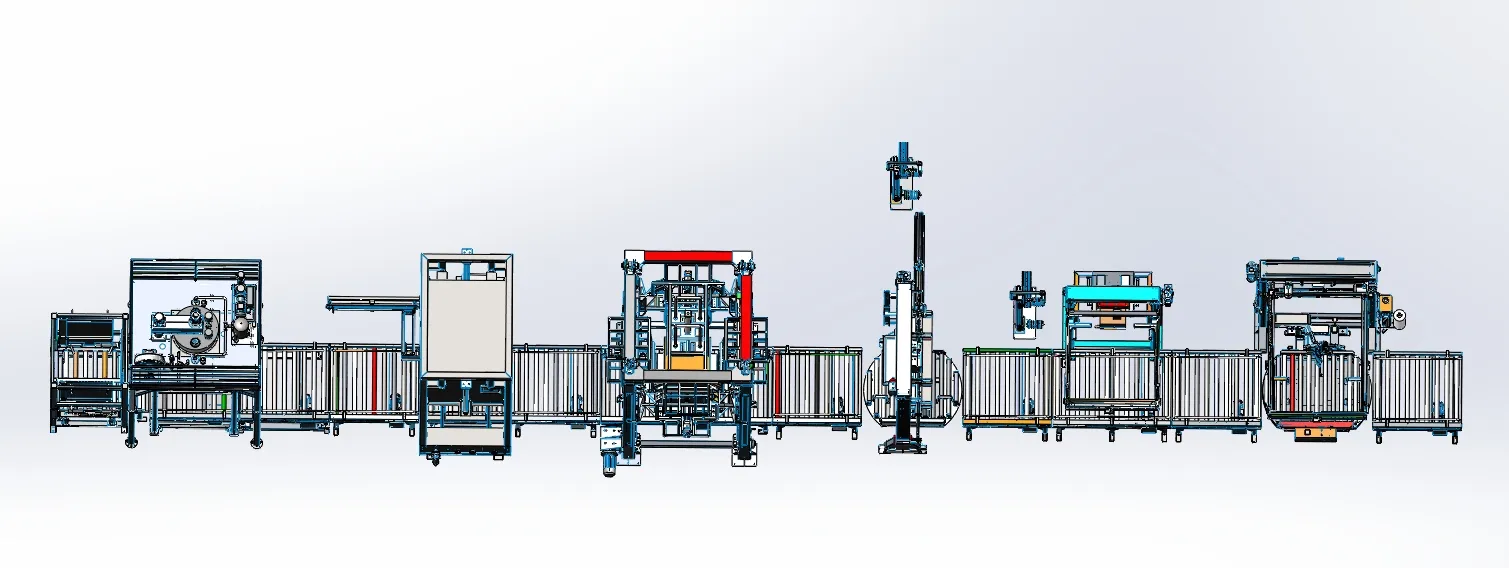

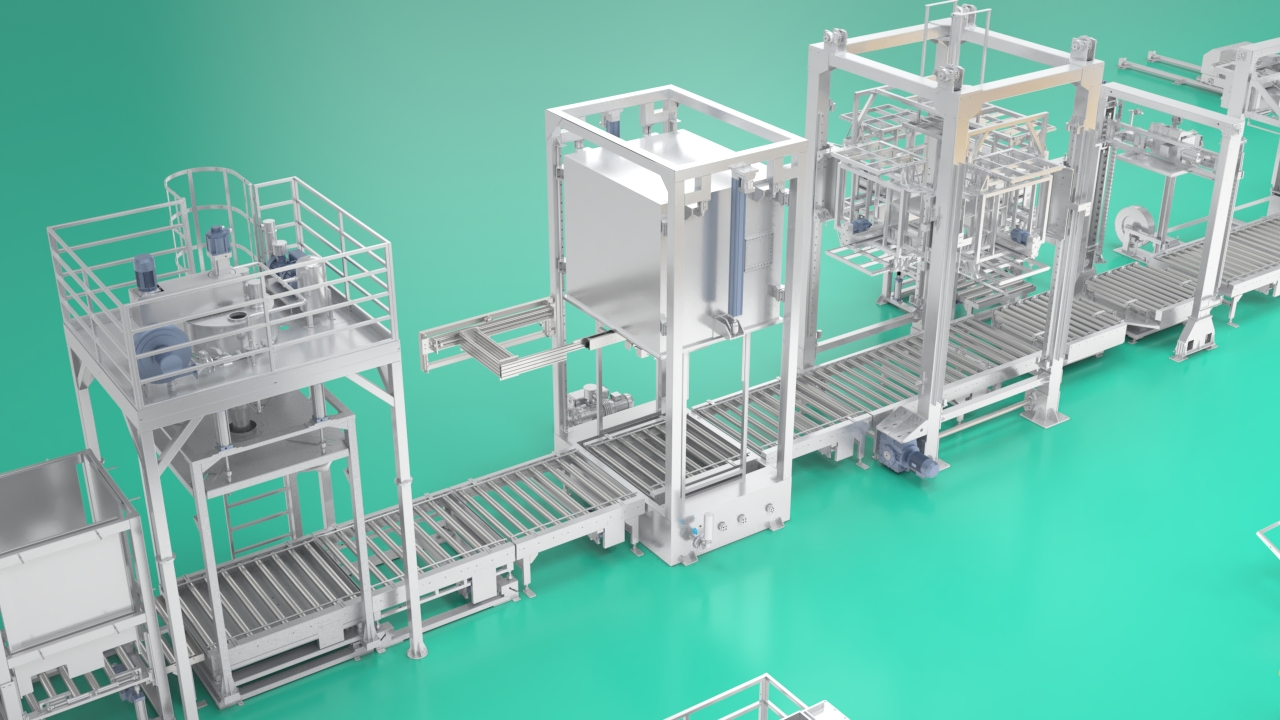

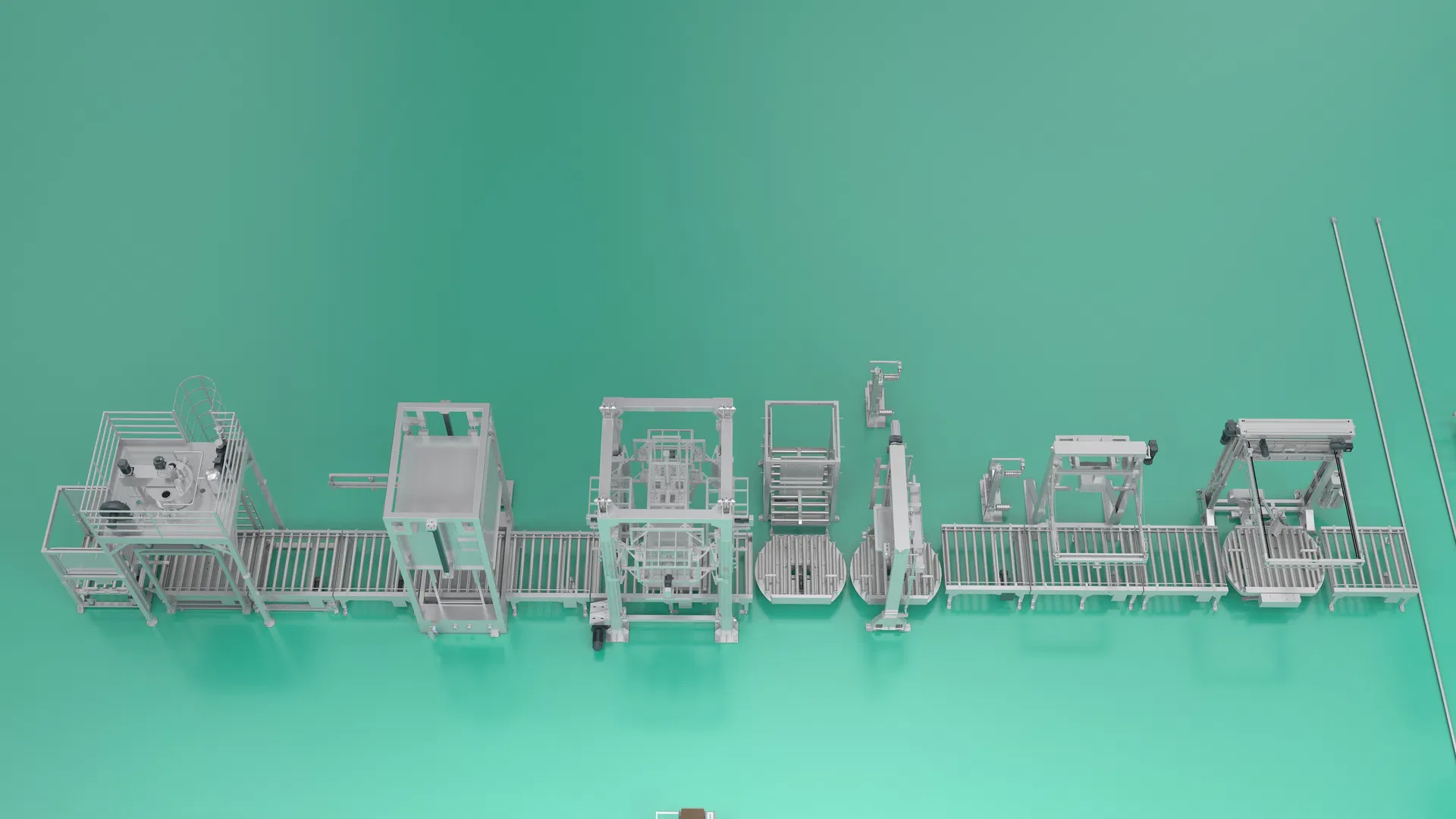

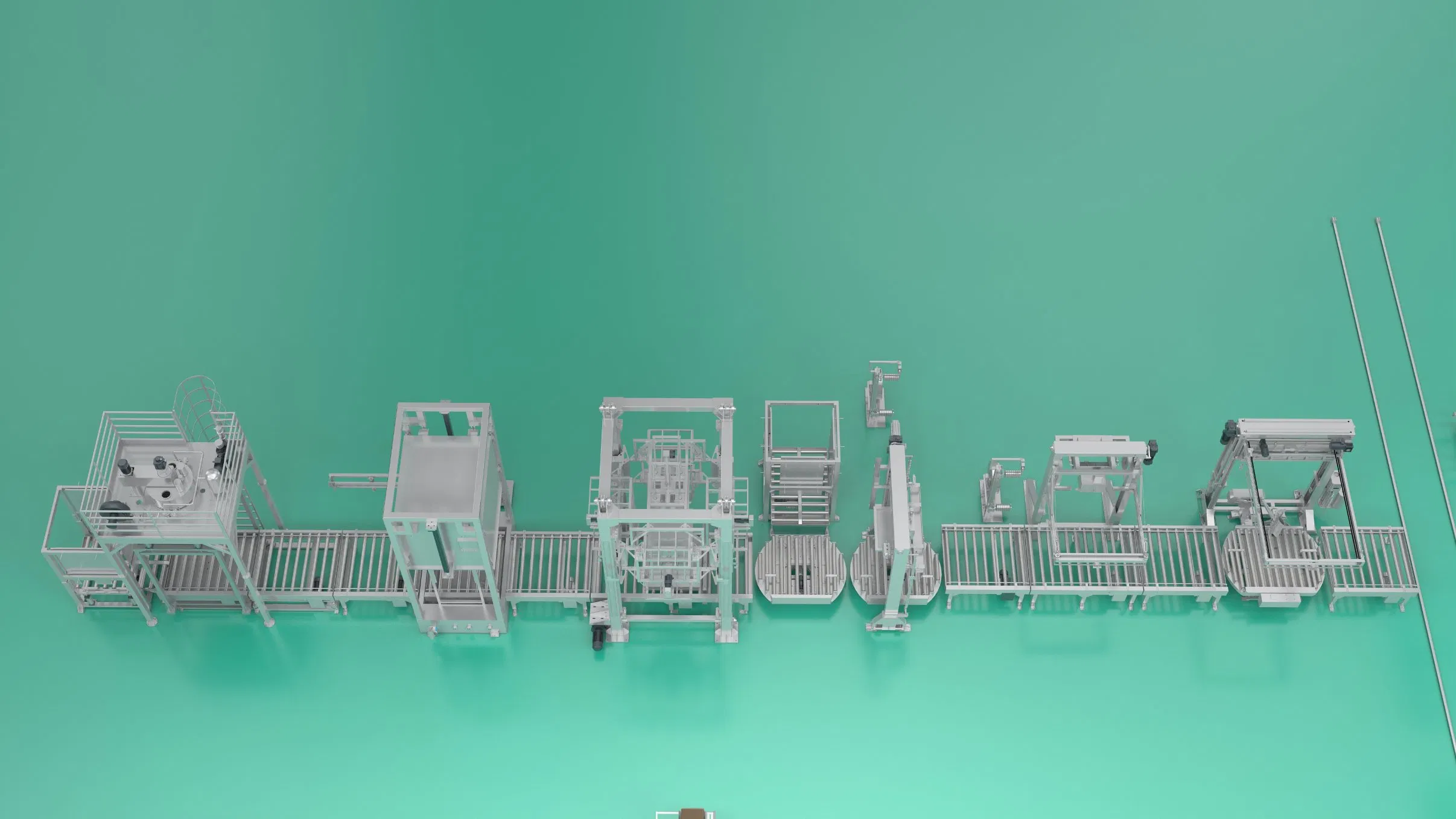

Fully Automatic Ton Bag Packaging Machine

The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.

High-Efficiency Ton Bag Wrapping System for Seamless Packaging

Structural Advantages

1. Modular Design

Optional integration of functions including hot sealing, re-inspection, metal detection, and vacuum sealing based on requirements.

2. Safety Design

Complies with international PL d safety standards.

3. Precise Measurement

High-accuracy net-weight electronic scale with strong anti-interference capability and stable continuous operation.

4. Bag Loading System

Chain conveyor with centering adjustment; specialized suction cups accommodate various flexible bags; automatic bag detection compatible with M-fold and pillow-style bags.

5. Stable Bag Transfer

Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.

Product Specifications
Feeding Method	Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications	300 - 1000 kg/bag
Main Unit Dimensions	3500 (L) × 2800 (W) × 3000 (H) mm
Total Power	Approx. 13 kW
Total Weight	3.5 - 6 tons
Load Cell Accuracy Grade	C3/C6/C10 (optional)
Measurement Accuracy	±0.1%
Packaging Speed	5 - 15 bags/hour (depending on material and feeding mode)
Bag Storage Capacity	5 - 20 bags (expandable)
Control Method	PLC + Touchscreen
Power Supply	380V, Five-wire Three-phase
Air Source	0.5-0.7 MPa
Noise Level	≤80 dB (at 1 meter from equipment)
Exterior Material	Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional)
Communication Protocol	Supports PN, DP, 485, etc. (optional)

Main Products

Company Profile

We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment.

Our primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines and portable IBC.

As a leading high-tech enterprise, we have profound technical strength and advanced production techniques. We have established a scientifically structured talent pipeline, boasting an engineering team anchored by numerous senior and intermediate technical professionals. This includes specialized technical personnel holding master's and bachelor's degrees, with some members certified as National Senior Engineers.

We have acquired the ISO9001-2015 quality certificate and numerous patents. Our products have obtained the CE certificate. Our customers include world-famous enterprises in various chemical, agricultural, and industrial sectors.

We uphold the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving" to provide customers with high-quality products and reliable solutions. We strive to bring major innovation and changes to the industry. We look forward to partnering with you to become your trusted long-term collaborator.

Packaging & Shipping

Our Service

Pre-sale Service

Accept your inquiries and analyze your specific requirements.
Organize professional engineers to perform detailed system analysis.
Provide a detailed, customized project proposal and technical drawings.

After-sales Service

One-year warranty and lifetime service under normal circumstances.
Sufficient spare parts inventory for prompt critical component fulfillment.
24-hour after-sales service and remote technical support.
On-site or video installation guidance and performance assessments.

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer with licenses for exporting and importing.

2. What is your main business?

We are dedicated to providing our customers with a wide range of packaging equipment, material handling, and transfer equipment.

3. What are your main products?

Our main products include fully automatic/semi-automatic small bag packaging machines, fully automatic/semi-automatic ton bag packaging machines, quantitative packaging scales, sewing machines, bag-opening machines, IBC mobile containers, fixed stations, and unloading stations.

4. Do you accept customized equipment?

Yes, we design and manufacture equipment based on our customers' actual requirements. Please contact us to share your specific requirements, and we will design a suitable solution for you.

5. What material industries can your equipment be applied to?

Any industry handling powdered materials, granular materials, flaked materials, or mixed materials is applicable.

6. What is the delivery time?

For packaging scales, the production time is usually within 30 working days. For packaging machines, it is usually 30 to 60 working days. For IBC tanks, the production time is usually 45 to 60 working days. The precise delivery time depends on the exact specifications and quantity of the equipment.
