Product Description

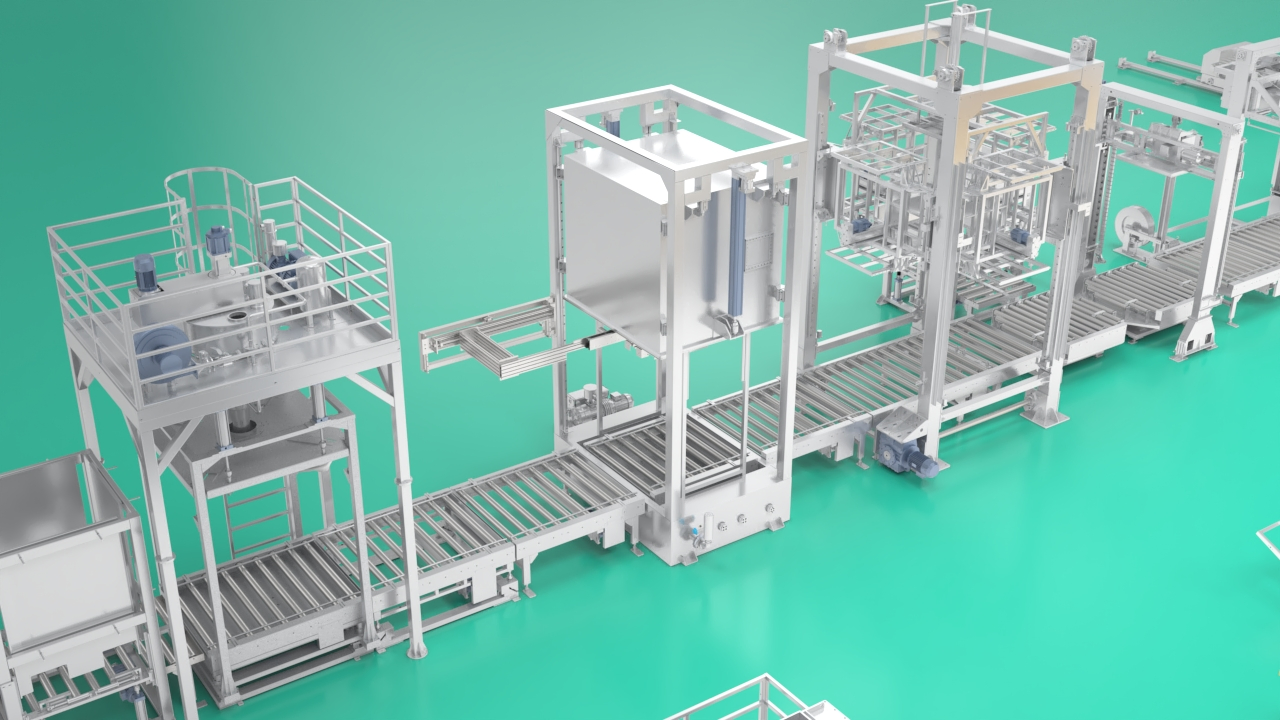

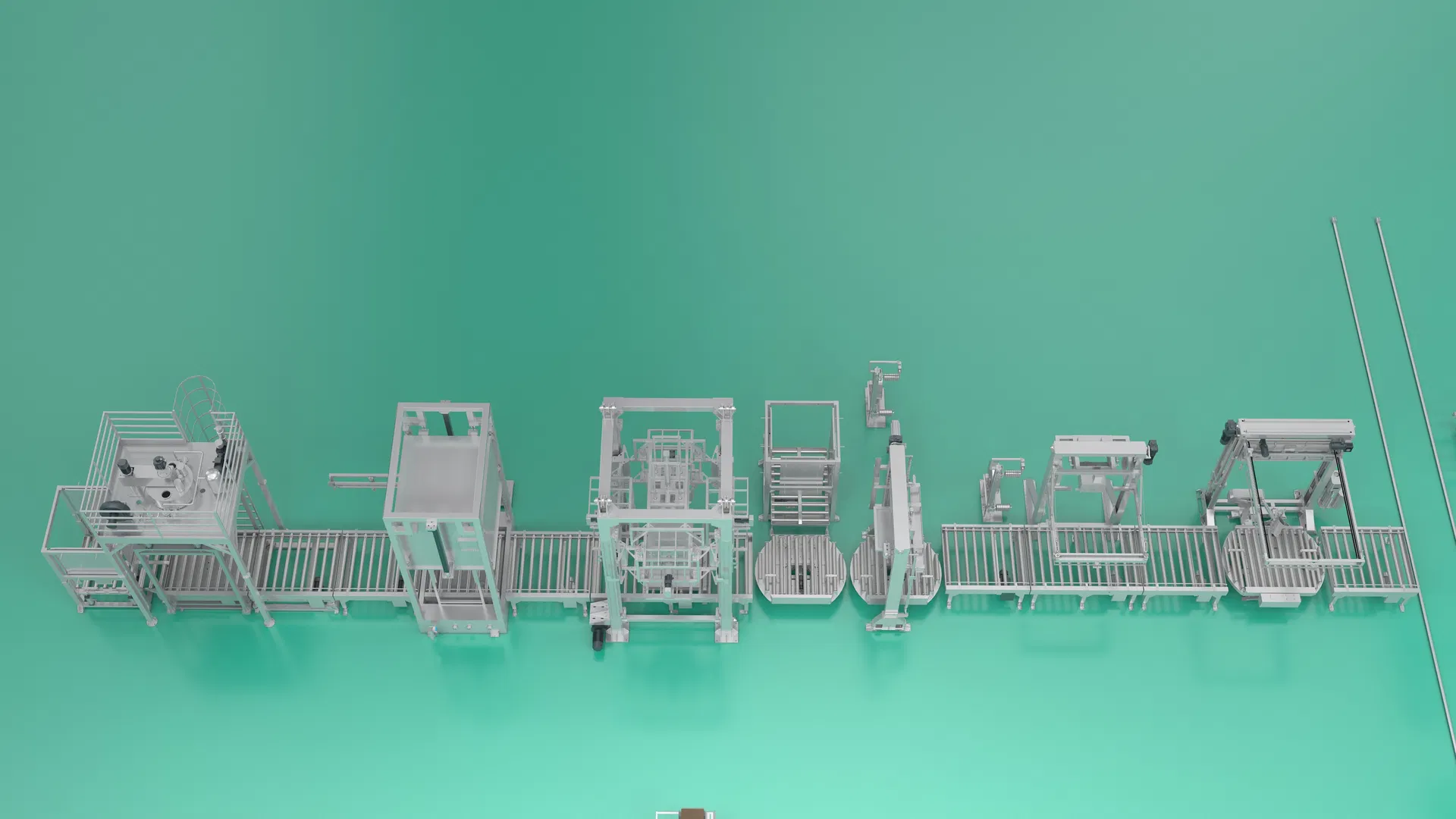

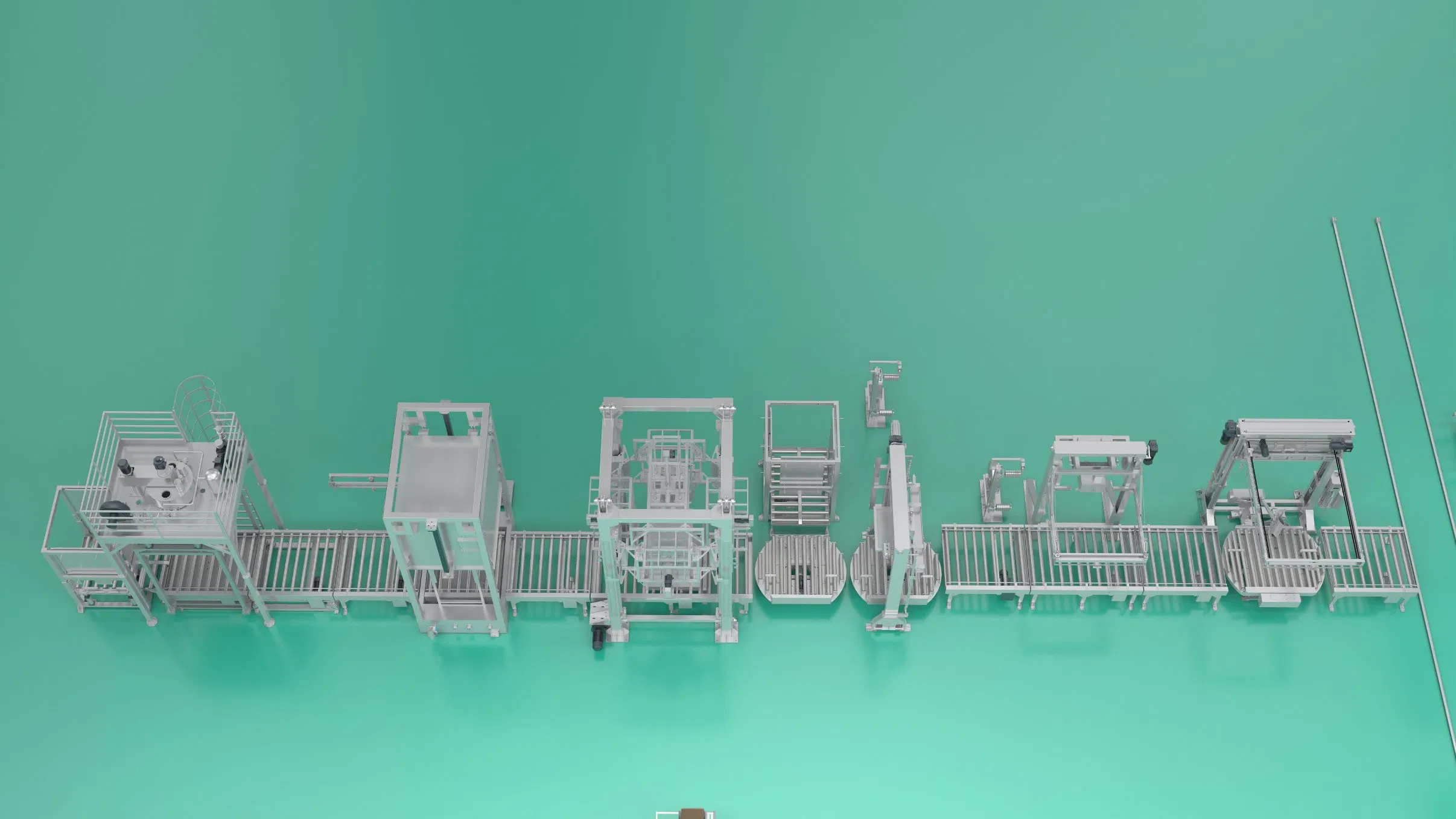

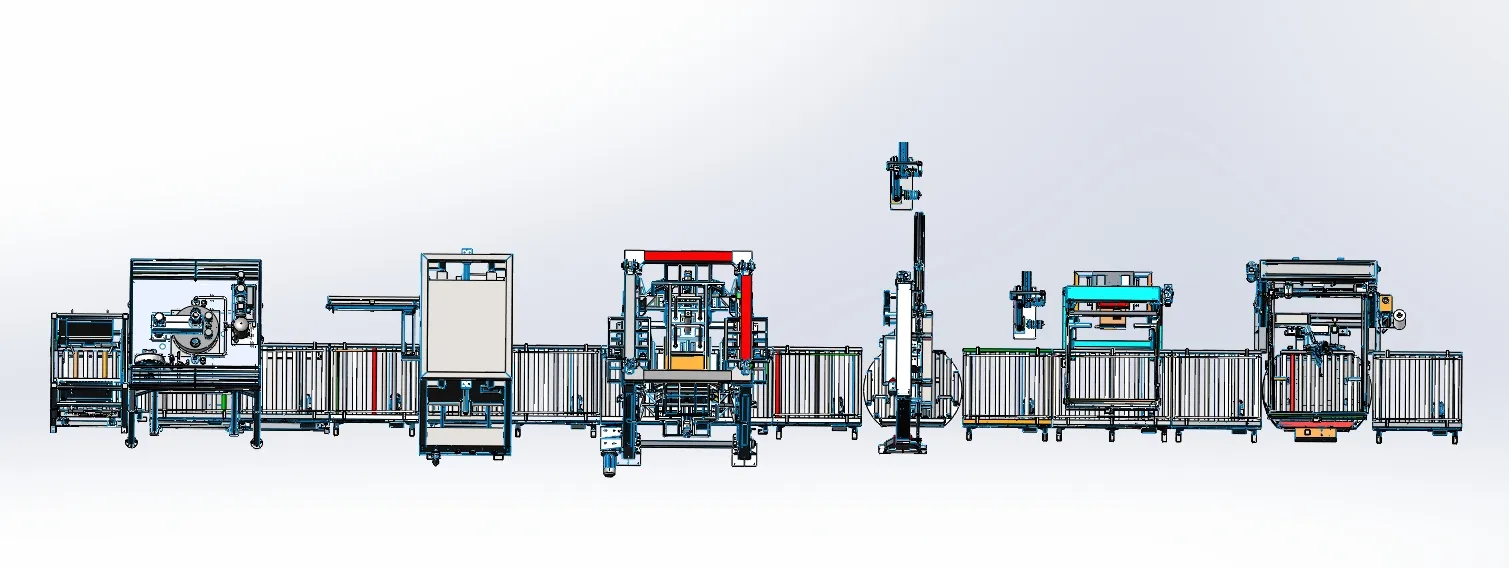

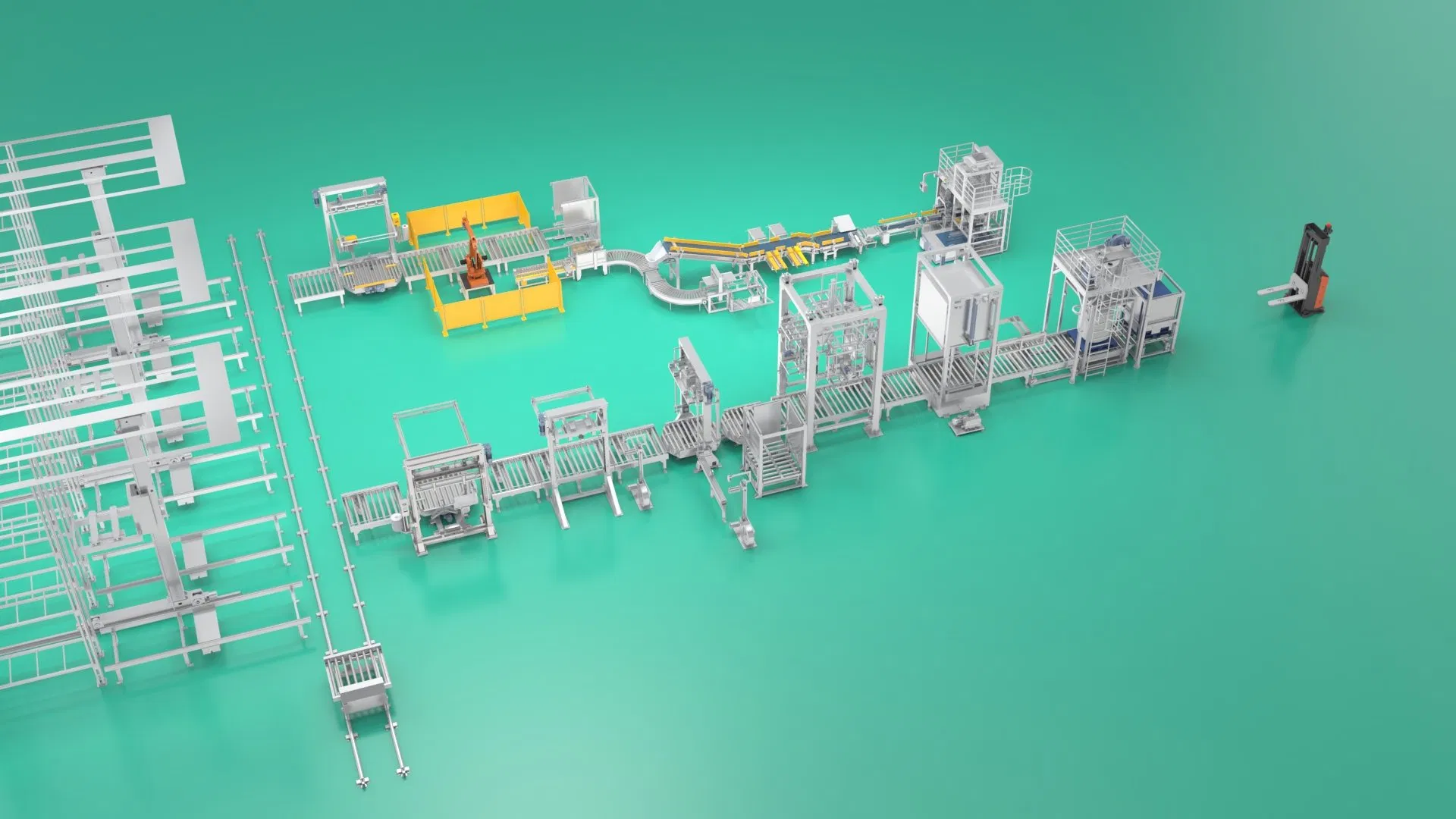

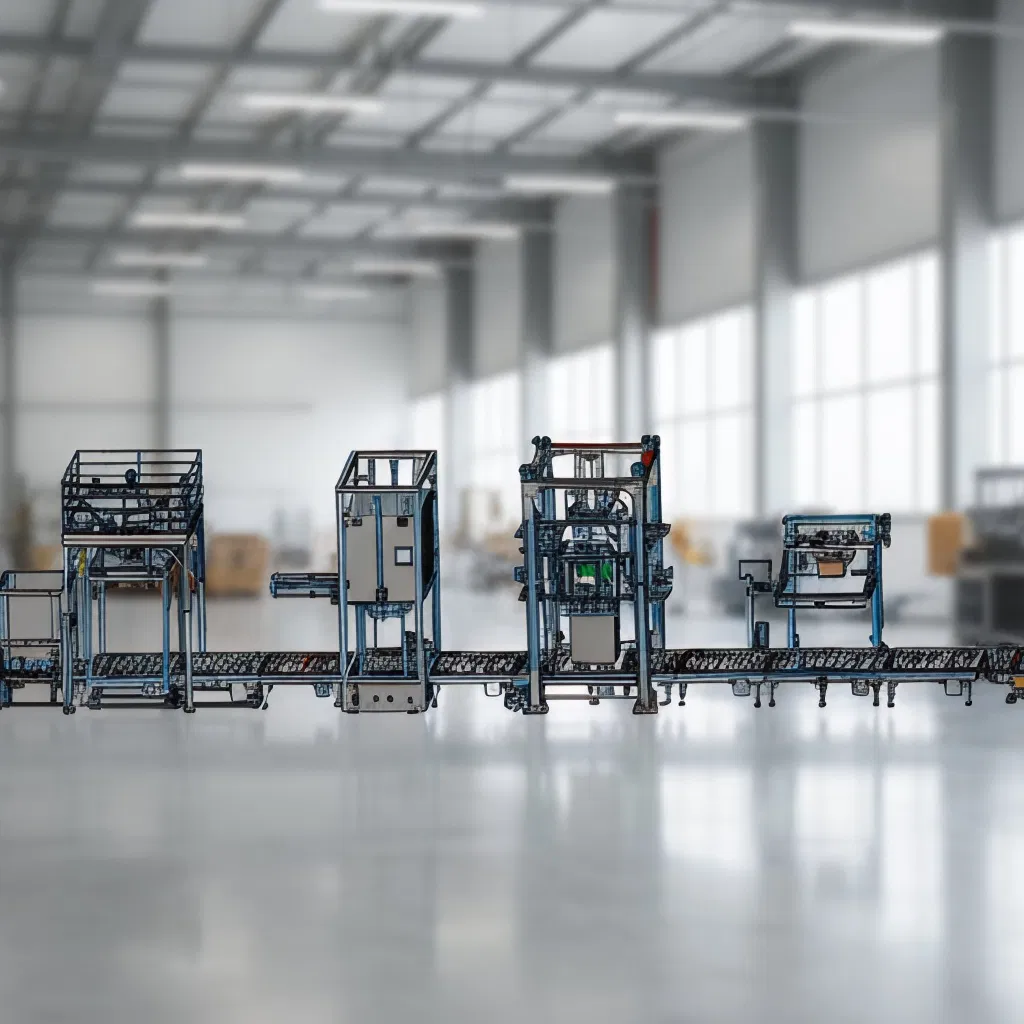

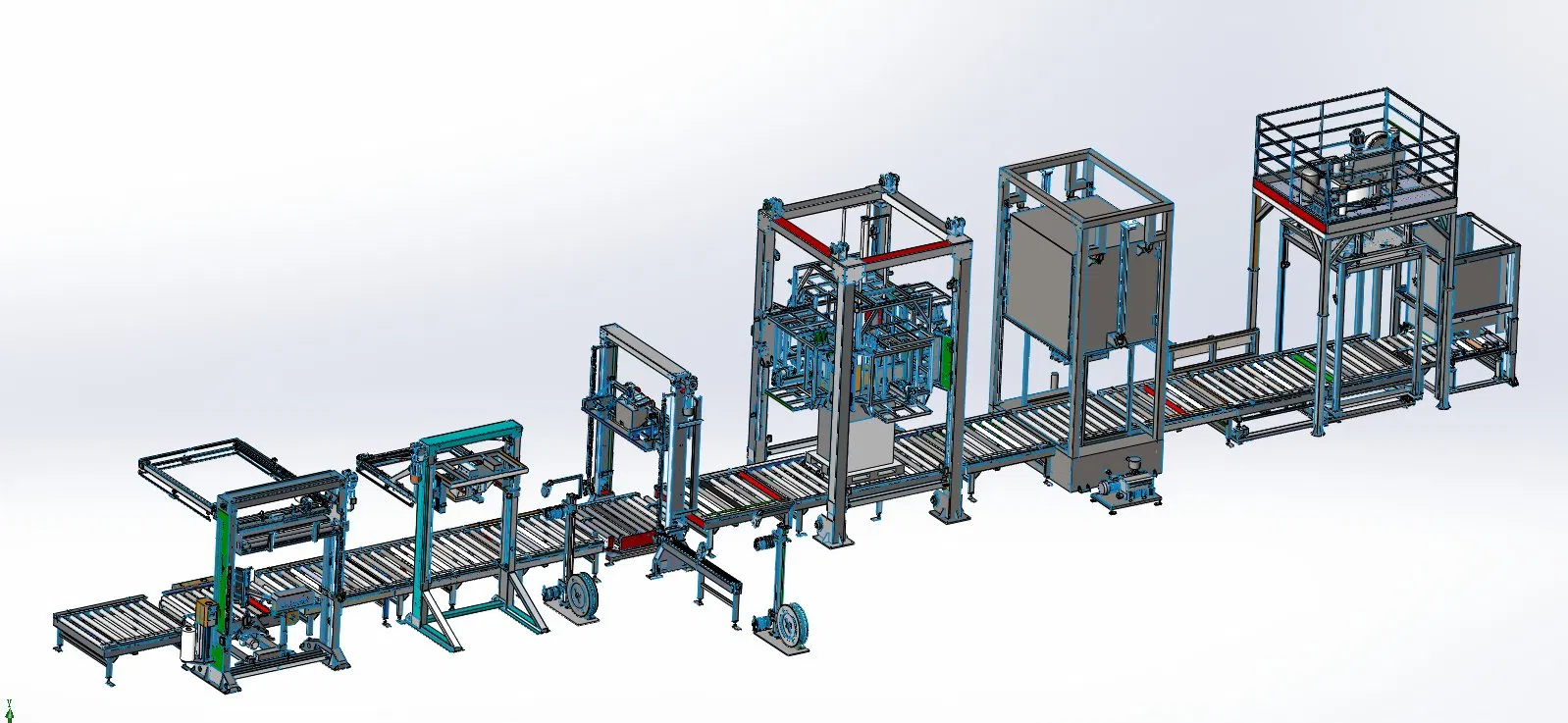

Fully Automatic Ton Bag Packaging Machine
The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.
Structural Advantages
✓
Modular Design: Optional integration of functions including hot sealing, re-inspection, metal detection, and vacuum sealing based on requirements.
✓
Safety Design: Complies with international PL d safety standards.
✓
Precise Measurement: High-accuracy net-weight electronic scale with strong anti-interference capability and stable continuous operation.
✓
Bag Loading System: Chain conveyor with centering adjustment; specialized suction cups accommodate various flexible bags; automatic bag detection compatible with M-fold and pillow-style bags.
✓
Stable Bag Transfer: Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.
Product Specifications
| Specifications Details |
| Feeding Method |
Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding |
| Packaging Specifications |
300 - 1000 kg/bag |
| Main Unit Dimensions |
3500 (L) × 2800 (W) × 3000 (H) mm |
| Total Power |
Approx. 13 kW |
| Total Weight |
3.5 - 6 tons |
| Load Cell Accuracy Grade |
C3/C6/C10 (optional) |
| Measurement Accuracy |
±0.1% |
| Packaging Speed |
5 - 15 bags/hour (depending on material and feeding mode) |
| Bag Storage Capacity |
5 - 20 bags (expandable) |
| Control Method |
PLC + Touchscreen |
| Power Supply |
380V, Five-wire Three-phase |
| Air Source |
0.5-0.7 MPa |
| Noise Level |
≤80 dB (at 1 meter from equipment) |
| Exterior Material |
Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional) |
| Communication Protocol |
Supports PN, DP, 485, etc. (optional) |
Main Products
Company Profile
We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment.
Our primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines and portable IBC.
As a high-tech enterprise, we have profound technical strength and advanced production techniques. We have established a scientifically structured talent pipeline, boasting an engineering team anchored by numerous senior and intermediate technical professionals. This includes specialized technical personnel holding master's and bachelor's degrees, with some members certified as National Senior Engineers.
We have acquired ISO9001-2015 quality certificate and several patents. In 2022, our products obtained the CE certificate. Our customers include world-famous companies like LG Chem, EASPRING, STANLEY, WANHUA, Clearway, BTR, CP GROUP, etc.
We uphold the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving" to provide customers with high-quality products and reliable solutions. We strive to bring major innovation and changes to the industry. We look forward to partnering with you to become your trusted long-term collaborator.
Packaging & Shipping
Our Service
Pre-sale
We accept your inquiries and organize our engineers to analyze your requirements on equipment. We will provide you with a suitable detailed Proposal.
After-sales
✓
Under normal circumstances, our equipment comes with a one-year warranty and lifetime service.
✓
Spare parts inventory is consistently maintained at sufficient levels, ensuring prompt fulfillment of requests for wear parts, consumables, and critical components.
✓
We provide 24-hour after-sales service online and via hotlines.
✓
We provide on-site or video installation guidance for the equipment, and conduct regular visits to assess equipment performance.
FAQ
Q Are you a manufacturer or trading company?
We are a professional manufacturer with licenses for exporting and importing.
Q What is your main business?
We are dedicated to providing our customers with a wide range of packaging equipment, material handling, and transfer equipment.
Q What are your main products?
Our main products include fully automatic/semi-automatic small bag packaging machines, fully automatic/semi-automatic ton bag packaging machines, quantitative packaging scales, sewing machines, bag-opening machines, IBC mobile containers, fixed stations, and unloading stations.
Q Do you accept Customized Equipment?
Sure, we design and manufacture equipment based on our customers' actual requirements. Please contact us to share your specific requirements, and we will design a suitable solution for you.
Q What material industries can your equipment be applied to?
Any industry handling powdered materials, granular materials, flaked materials, or mixed materials is applicable.
Q What is the delivery time?
For package scales, the production time is usually within 30 working days. For packaging machines, the production time is usually 30 - 60 working days. For IBC tanks, the production time is usually 45 - 60 working days. The specific delivery time depends on the exact requirements and quantity of the equipment.
