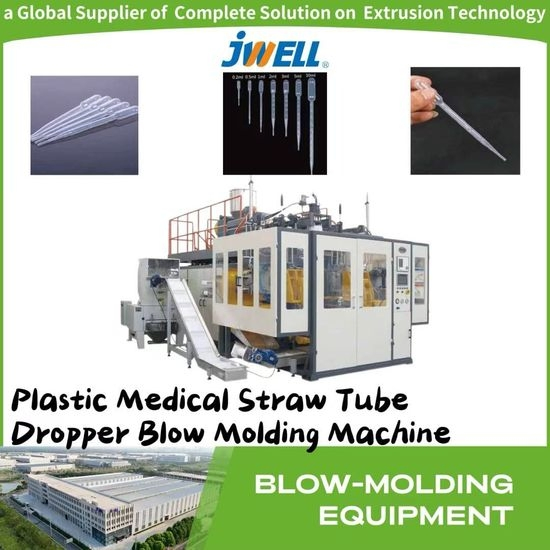

Jwell Food Research/ Medical Industrial Plastic Medical Straw Tube/Dropper Blow Molding Machine

Customization:	Available
Warranty:	One Year
Type:	Extrusion Blow Molding Machine

Overview

Basic Info.

Model NO.	BFS-C15S-I/II
Raw Material	PP, PE
Making Method of Parison	Extrusion-Blow Molding
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
After-sales Service	Installation and Debugging
Max.Capacity(Ml)	2ml/10ml
Max.Container Width(mm)	10mm/15mm
Mould Cavity	10/15
Output/Hour I-Single Mould	6000(9s) 6750(8s)/4000(9s) 4500(8s)
Transport Package	Wooden
Specification	Extrusion Blow Molding Machine
Origin	China
HS Code	8477800000

Packaging & Delivery

Package Size	500.00cm * 500.00cm * 500.00cm
Package Gross Weight	2000.000kg

Introduction

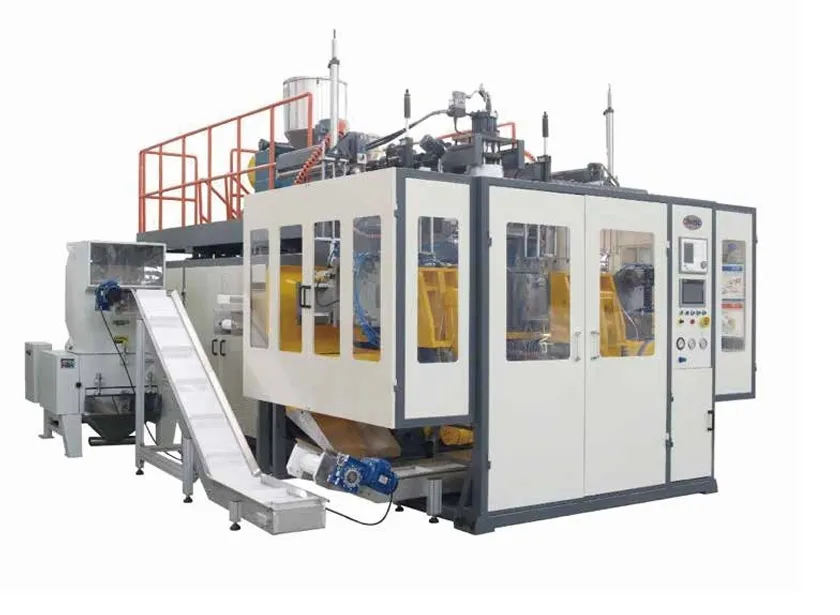

Food Research/ Medical Industrial Plastic Medical Straw Tube/Dropper Blow Molding Machine

1 Extrusion System: High-efficiency screw and barrel design ensures stable plasticizing, suitable for small precision products like straws/droppers.
2 Automation Control: Equipped with SIEMENS HMI for precise wall thickness control, ideal for food-grade or medical-grade production.
3 Mold Flexibility: Customizable mold plates to accommodate different sizes of small hollow products.
4 Energy Efficiency: Servo-hydraulic system reduces power consumption while maintaining high output.

Machine Parameters

Model	Unit	BM02D
Max product volume	L	2
Dry cycle	Pc/h	900*2
Die head structure	Continuous type
Main screw diameter	mm	65
Max plasticizing capacity(PE)	kg/h	70
Driving motor	Kw	22
Oil pump motor power(Servo)	L	11
Clamping force	KW	40
Space between platen	KN	138-368
Platen size W*H	mm	286*330
Max.mould size	mm	300*350
Platen moving stroke	mm	420
Heating power of die head	KW	6
Machine dimension LWH	m	3.01.92.4
Machine weight	T	5
Total power	KW	45

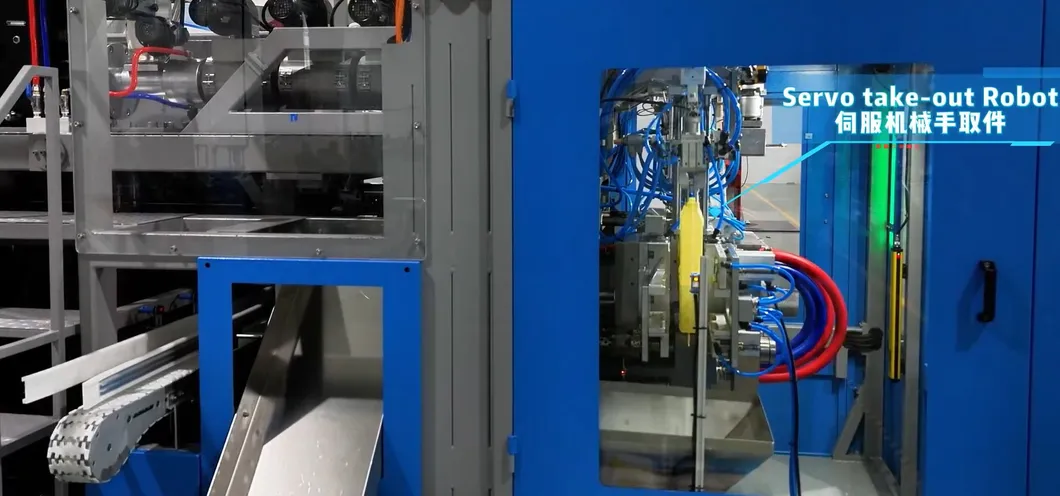

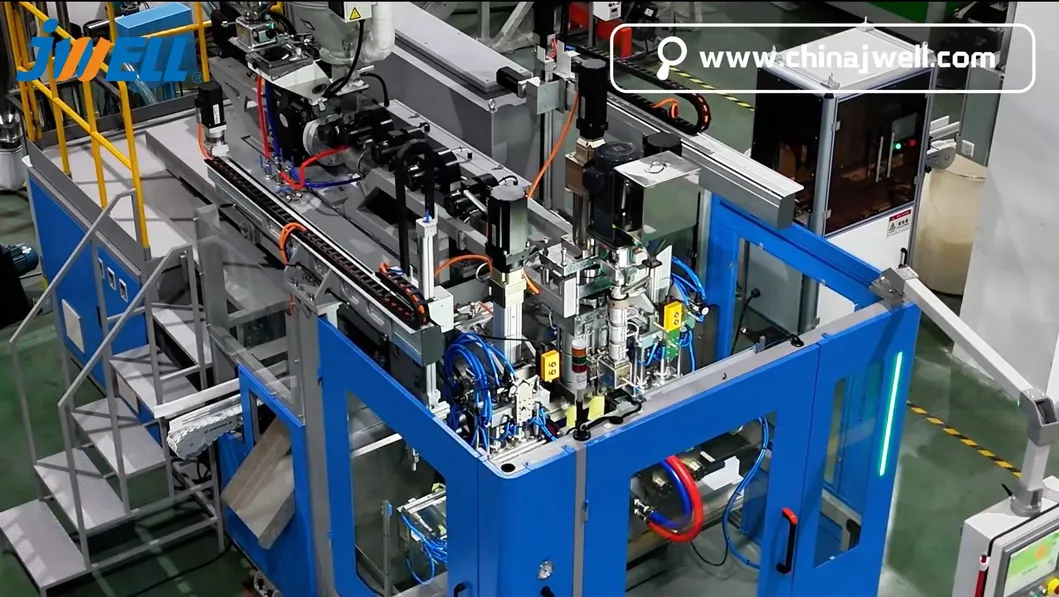

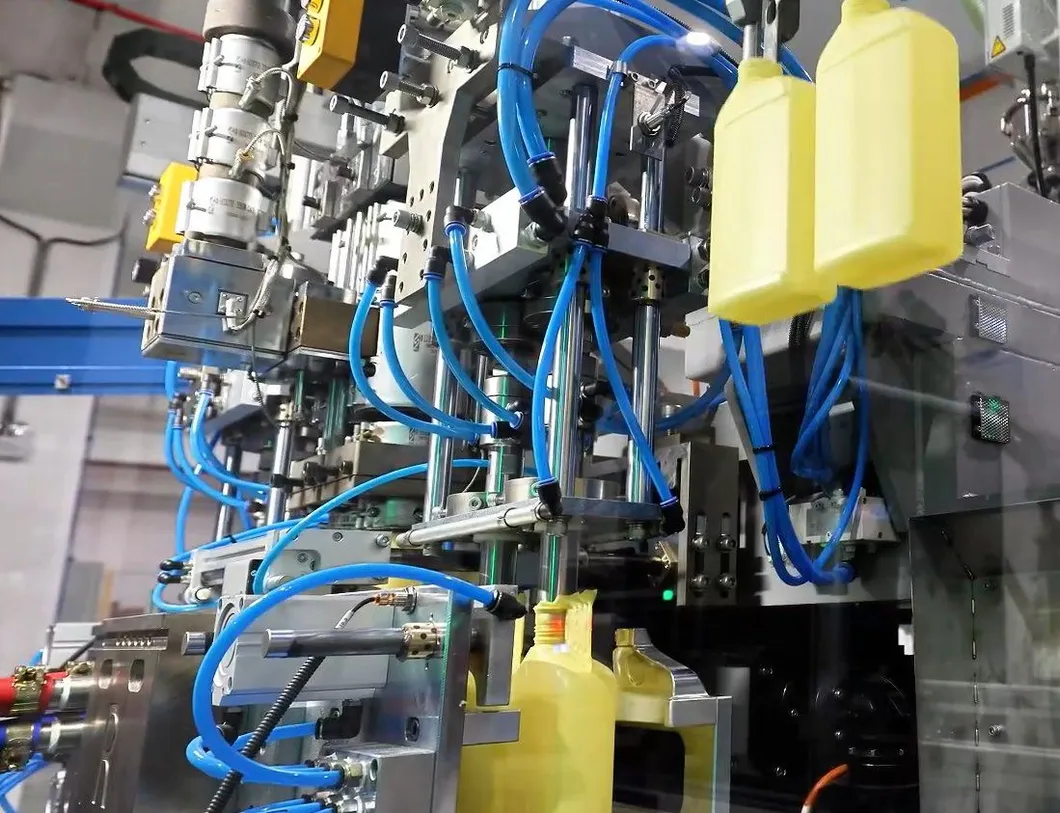

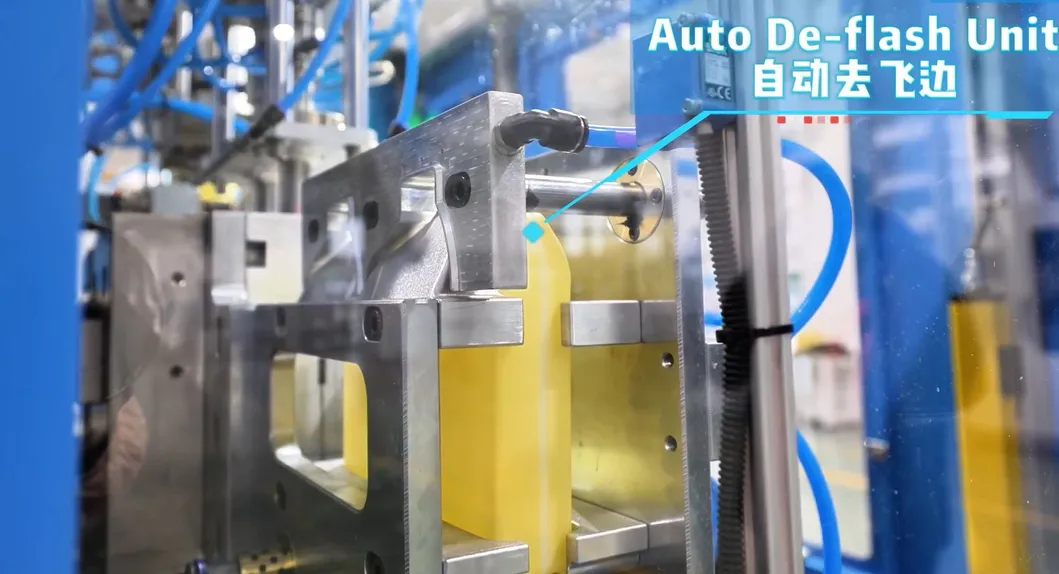

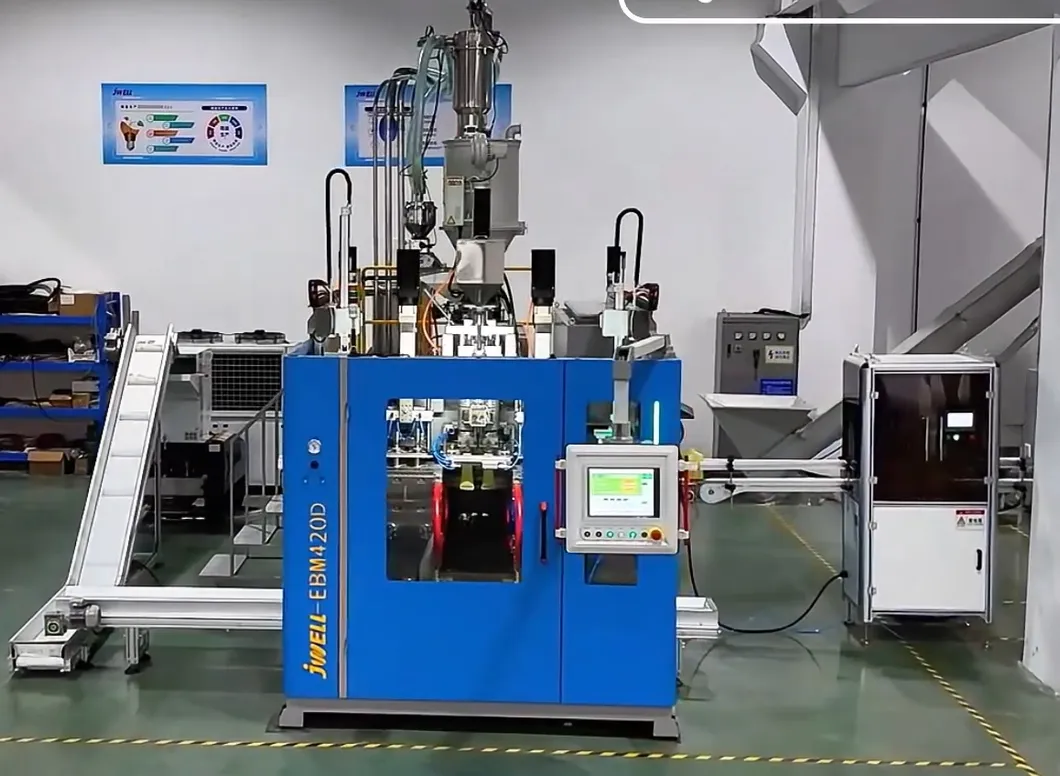

Detailed Photos

Application

1. Primary Application Scenarios

Medical Industry Production of medical droppers, laboratory pipettes, and liquid medicine transfer tubes.

Food Packaging Beverage straws, liquid food packaging tubes.

Cosmetics Industry Dropper tips for serums, essential oil dispensers.

Chemical Industry Small liquid dispensing tubes, reagent droppers.

2. Main Products

Plastic Straws PP/PE material, customizable diameter and length.

Medical Droppers Transparent PET/LDPE, FDA-compliant.

Laboratory Pipettes High precision, chemical-resistant.

Cosmetic Dropper Tips For serums, essential oils.

Small Liquid Packaging Tubes Travel-size toothpaste tubes, ointment tubes.

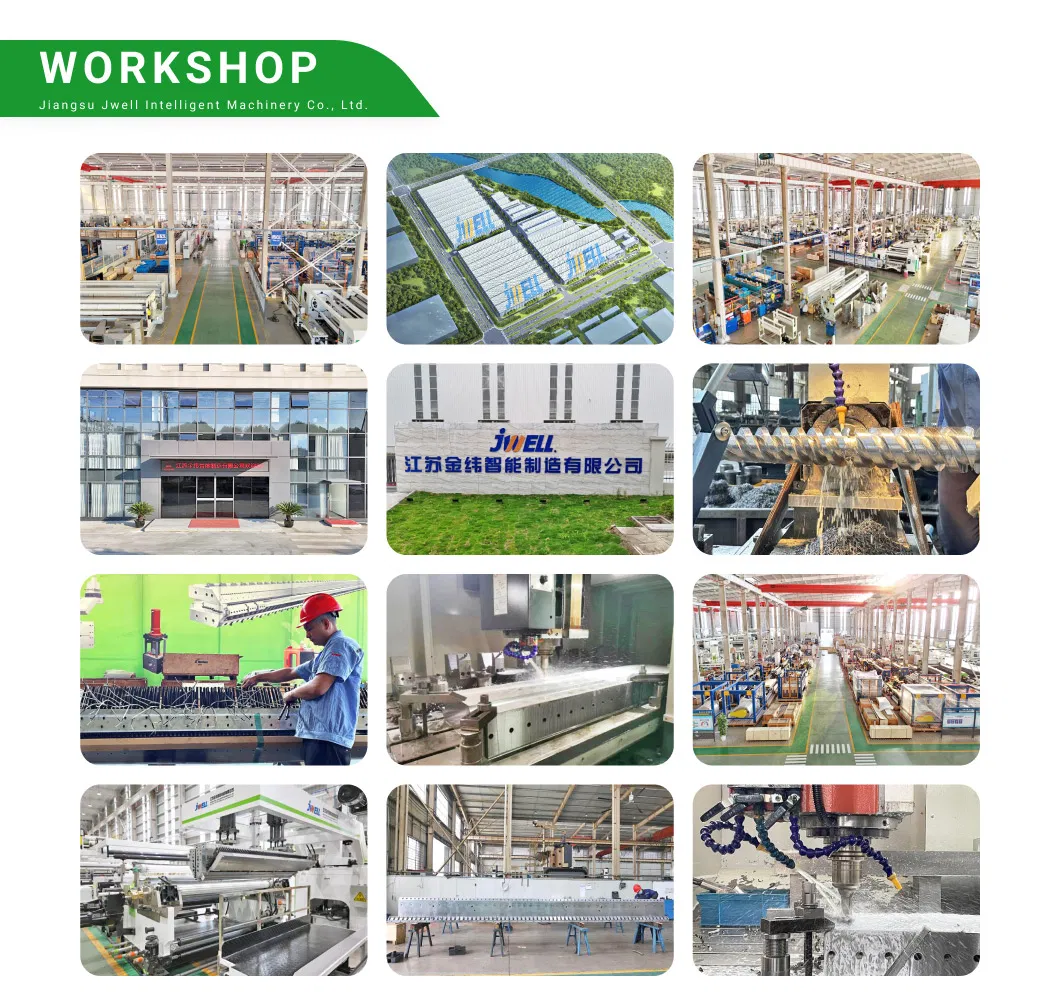

Production Facility

Frequently Asked Questions

QWhat materials are suitable for this extrusion blow molding machine?

This machine is primarily designed for high-efficiency processing of PP (Polypropylene) and PE (Polyethylene) raw materials, making it ideal for medical-grade and food-contact packaging.

QCan this machine produce products of different capacities?

Yes, it has a customizable mold configuration and can produce containers with maximum capacities ranging from 2ml up to 10ml, satisfying small-format specifications.

QHow does the automation control system benefit production?

The machine is integrated with a Siemens HMI control panel which allows operators to execute precise wall thickness adjustments, ensuring uniformity and minimizing material waste.

QWhat is the energy-saving capability of this machine?

Equipped with a servo-hydraulic system, the machine adjusts power consumption based on operation demands, substantially reducing energy usage compared to standard constant speed pumps.

QWhat industries are the manufactured products used in?

The output products are widely applied in the medical industry (medicine droppers, pipettes), food sector (drinking straws), cosmetics industry (essential oil droppers), and chemical reagent packaging.

QWhat packaging support is provided for international shipping?

All machines are safely packed in standard seaworthy wooden cases to prevent damages and vibrations during overseas container transit.
