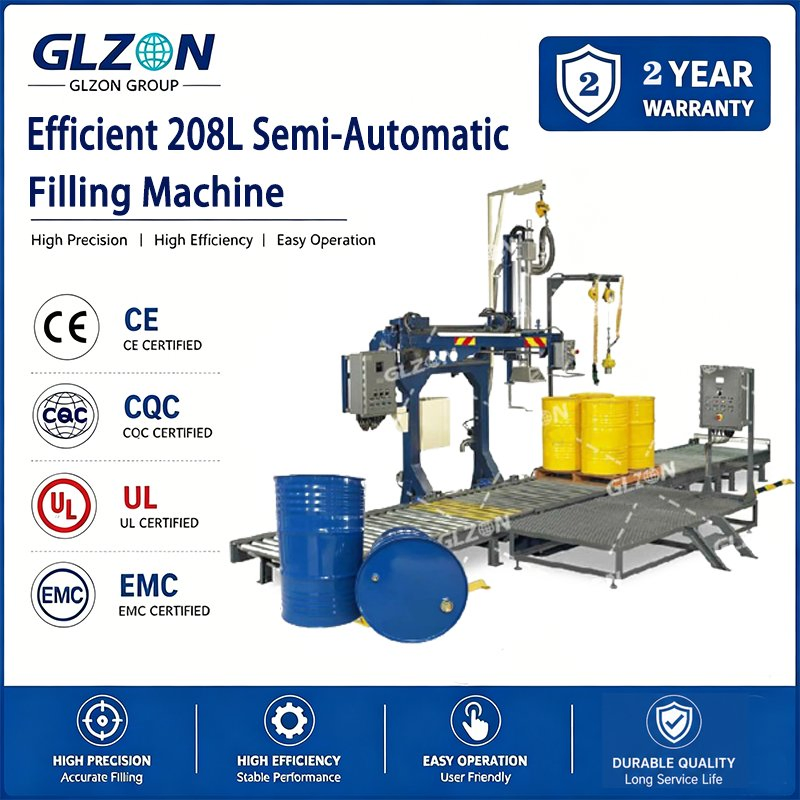

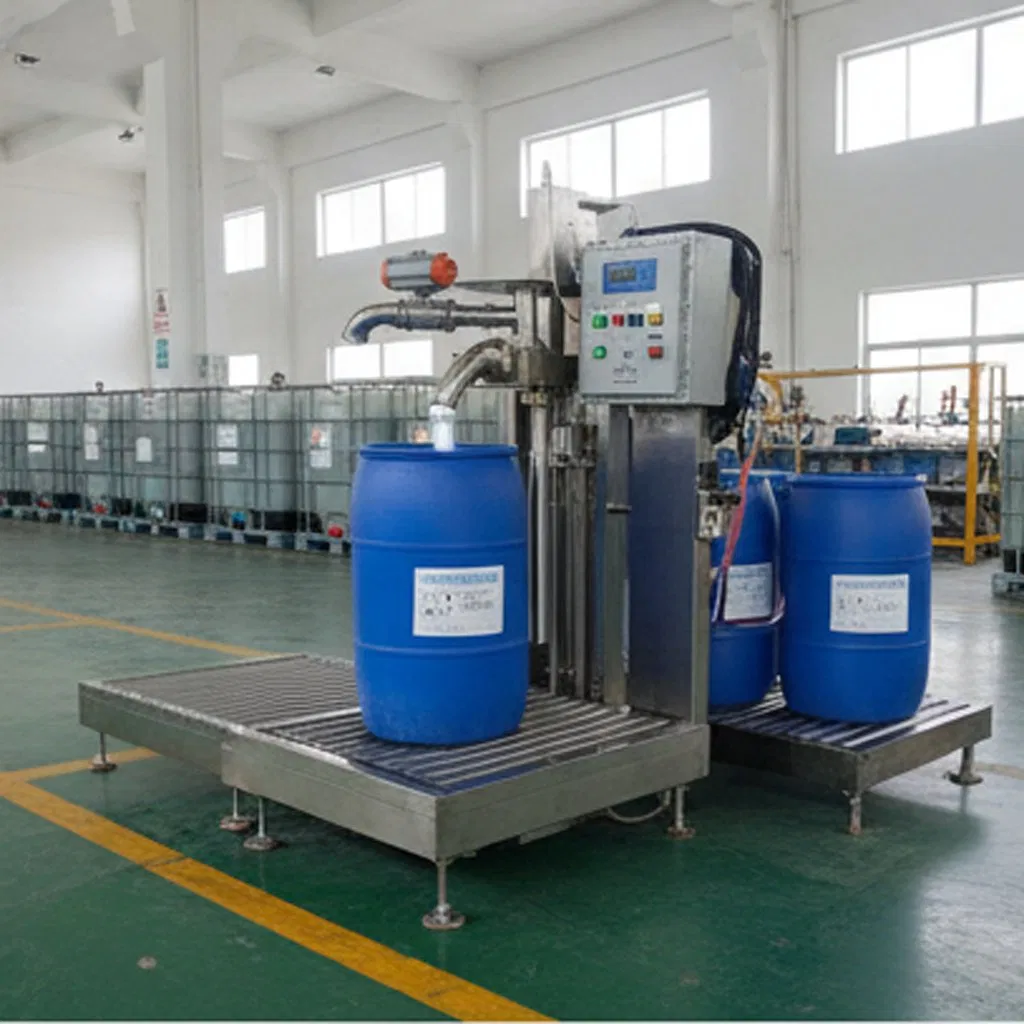

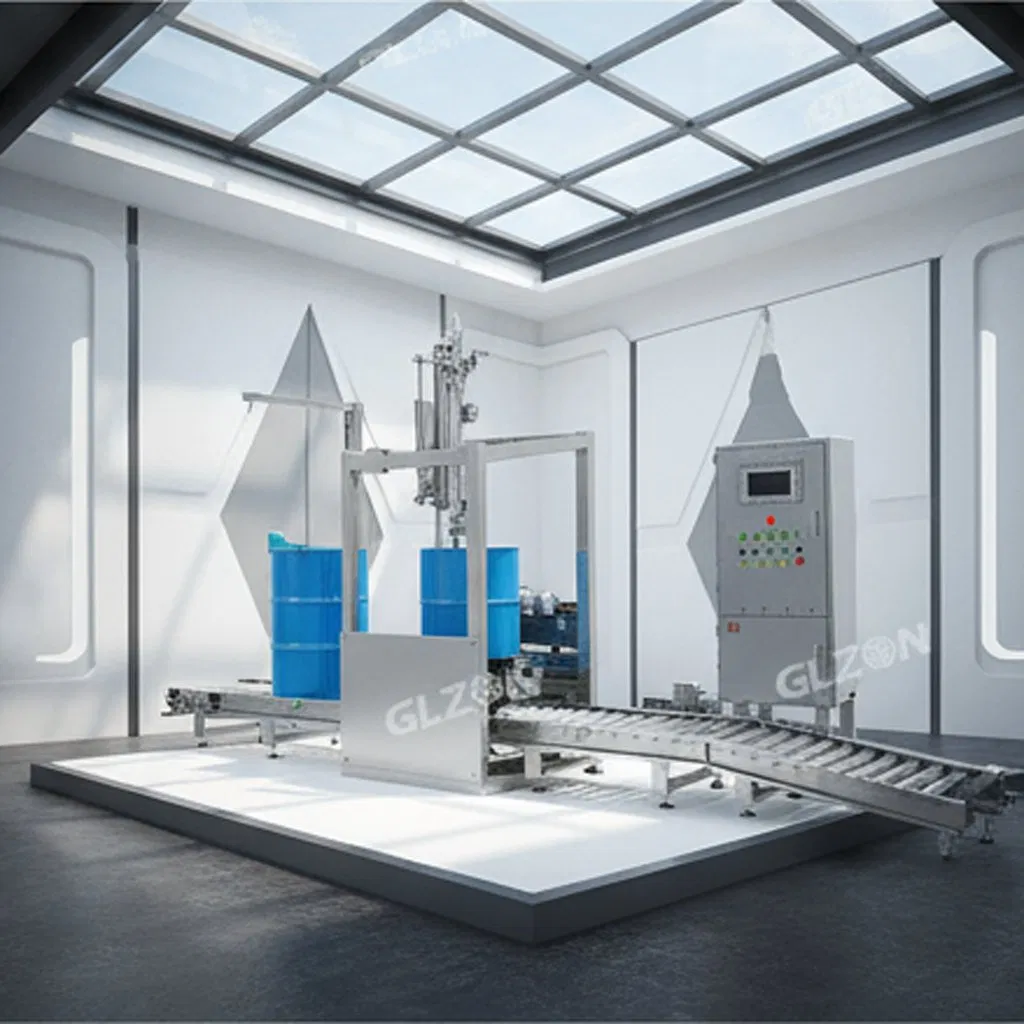

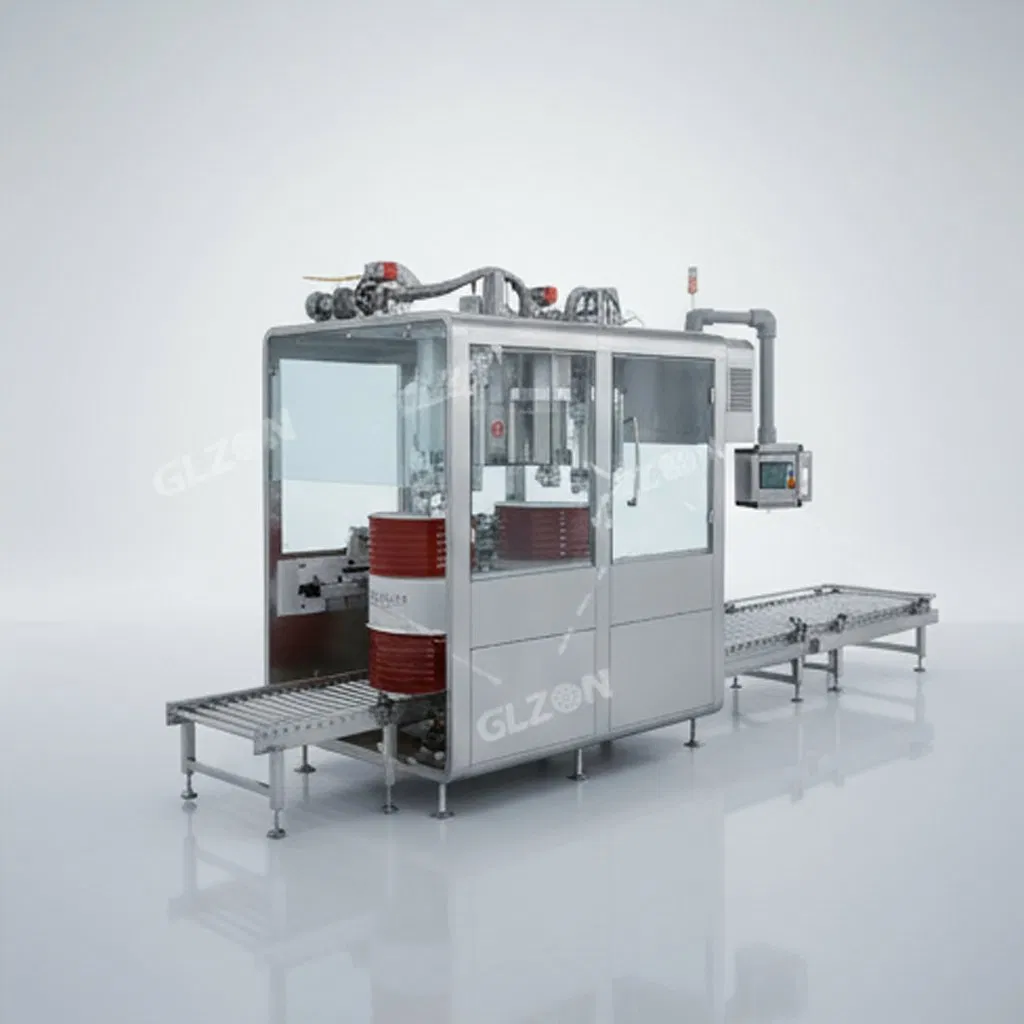

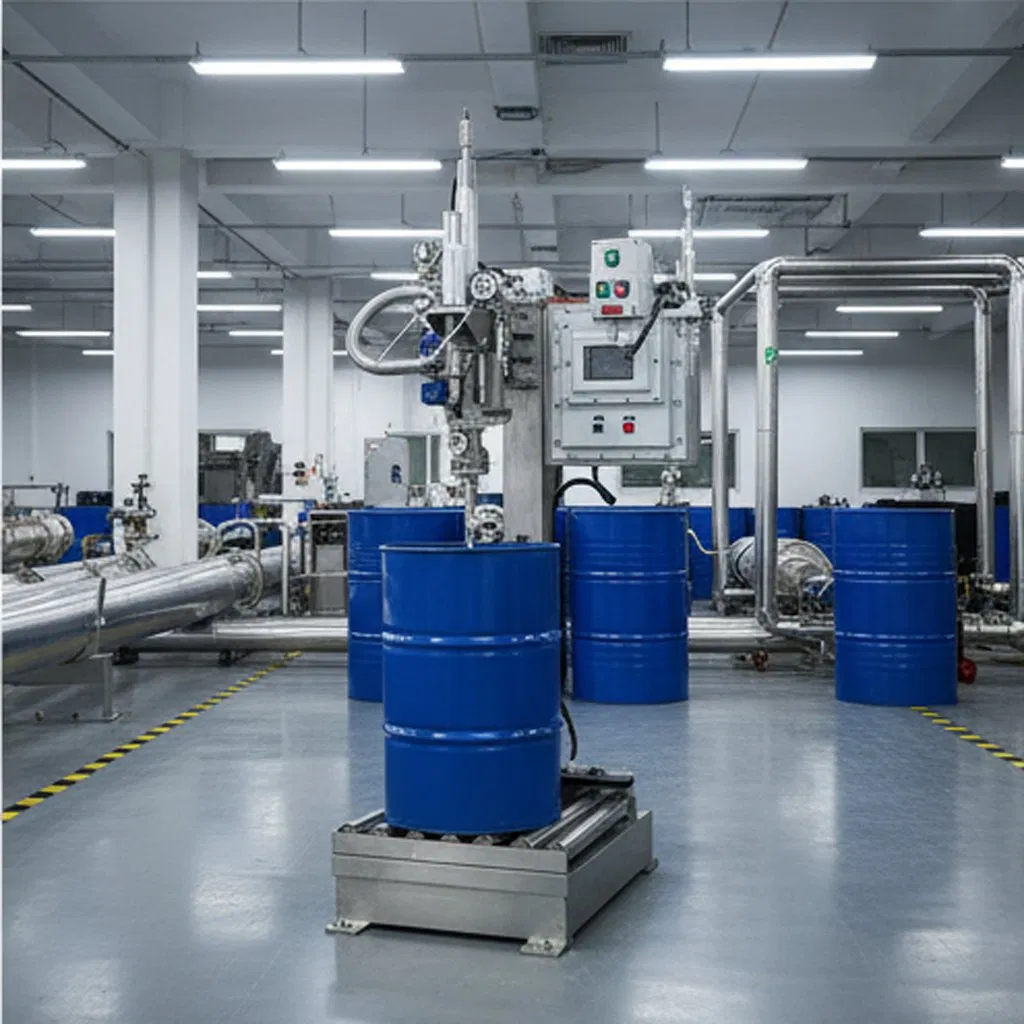

Efficient 208L Semi-Automatic Oil Drum Filling Machine for Industrial Use

Customization: Available
After-sales Service: 2 Year
Warranty: 2 Year

Product Description

Overview
Basic Info.
Model NO.GZM-200
TypeWeighing-type Filling Machine
Automatic GradeAutomatic
Material TypeLiquid
Filling Valve HeadSingle-Head
Feed Cylinder StructureSingle-Room Feeding
Dosing DeviceDrum Barrel
Filling PrinciplePressure
Packaging Container LiftingPneumatic Lifting
StructureLinear
PackagingBarrel
Technical & Logistics Info
Packaging MaterialWood
ApplicationFood, Beverages, Daily Necessities, Chemicals
Core ComponentsPressure Vessels, Pumps, PLCs, Gears, Bearings
Voltage220V 50/60Hz
Applicable IndustriesHotels, Manufacturing Plants, Food & Beverage Plants
Filling Accuracy0.2%
Specification7510*2030*2100mm
HS Code84223000
Production Capacity500/Year
Packaging & Delivery
Package Size751.00cm * 203.00cm * 210.00cm
Package Gross Weight300.000kg
Product Parameters
Parameter Specifications
Filling capacity300kg/barrel
Rated speed30-120 barrels (200L)/hr (viscosity dependent)
Weighing deviceMaximum weighing 300kg, graduation value d: 50g
Temperature range-10°C ~ +45°C
Relative humidity<95% (no condensation)
Power supply220V, 50HZ, 1.0kw
Working air sourceAir pressure 0.5MPa±0.1MPa, consumption: 10m³/h
Material inlet pressure(0.2~0.6)MPa (material dependent)
Filling speed150-300 barrels/hour
Filling range5-30kg

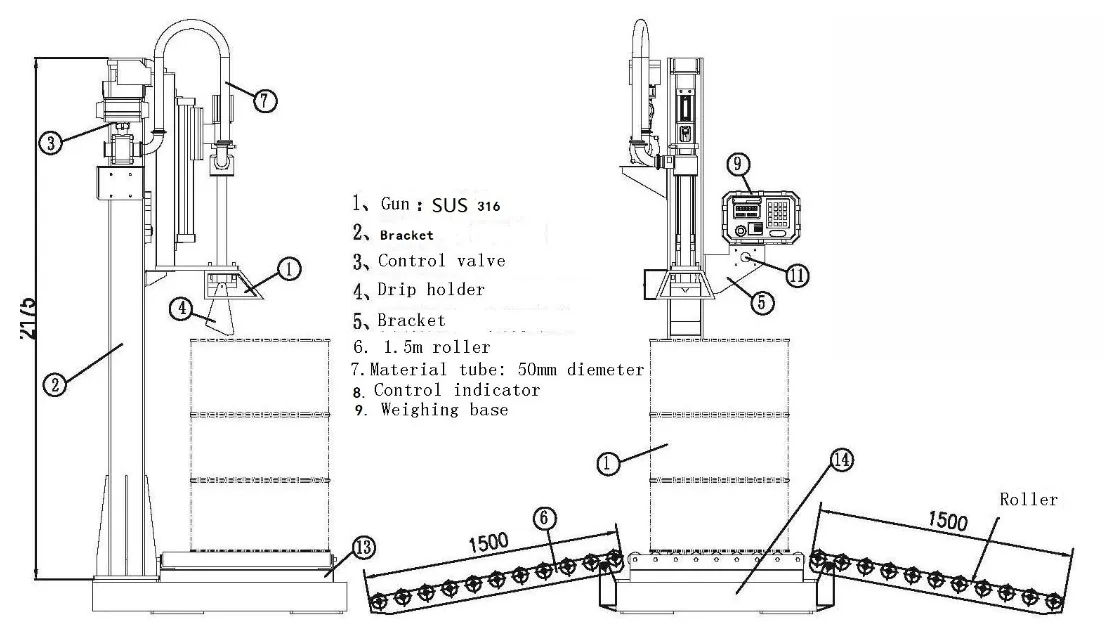

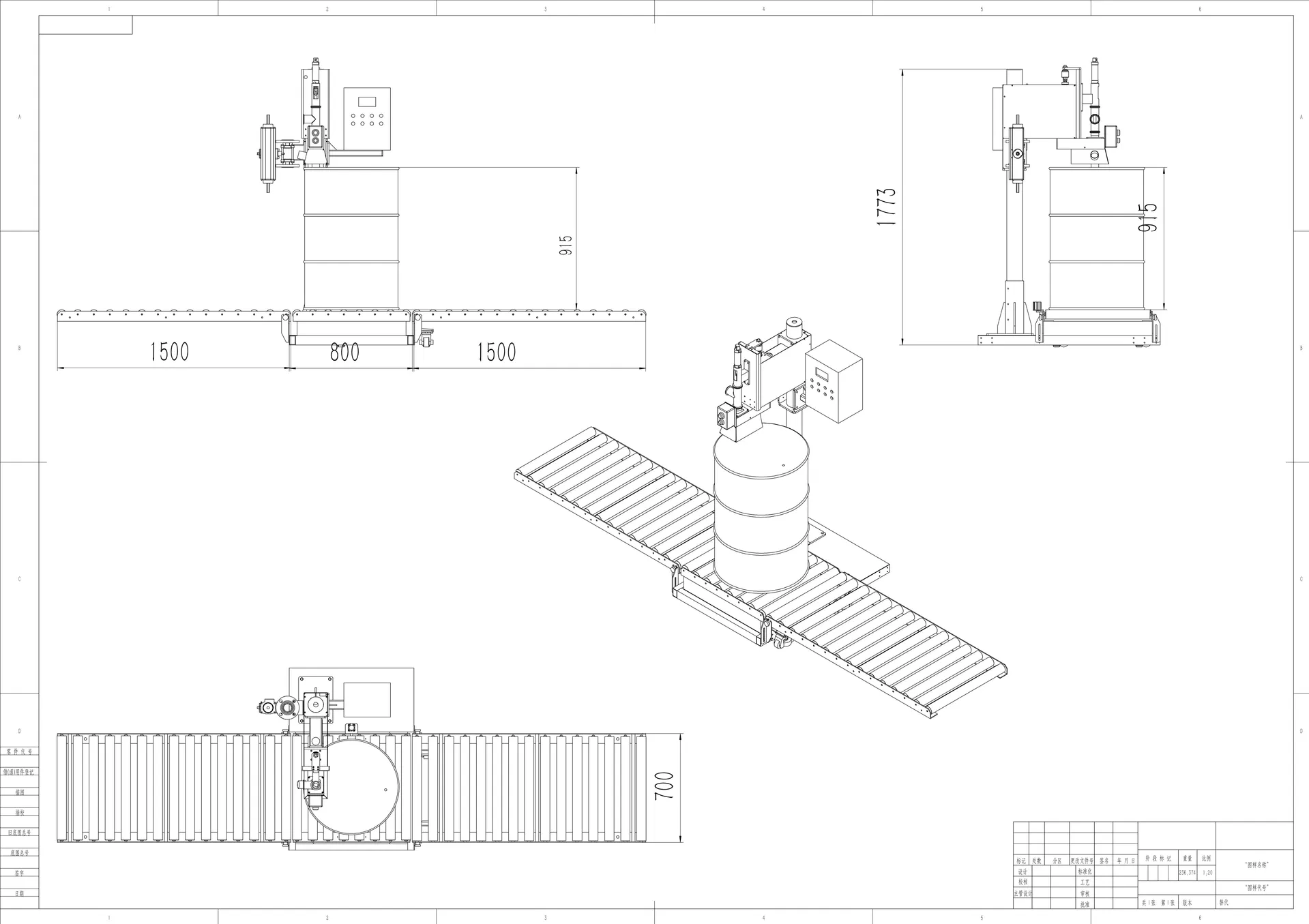

Efficient 208L Semi-Automatic Oil Drum Filling Machine for Industrial Use Drawings and Dimensions Layout for Semi-Automatic Oil Drum Filling Machine
Drawings & Dimensions: Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

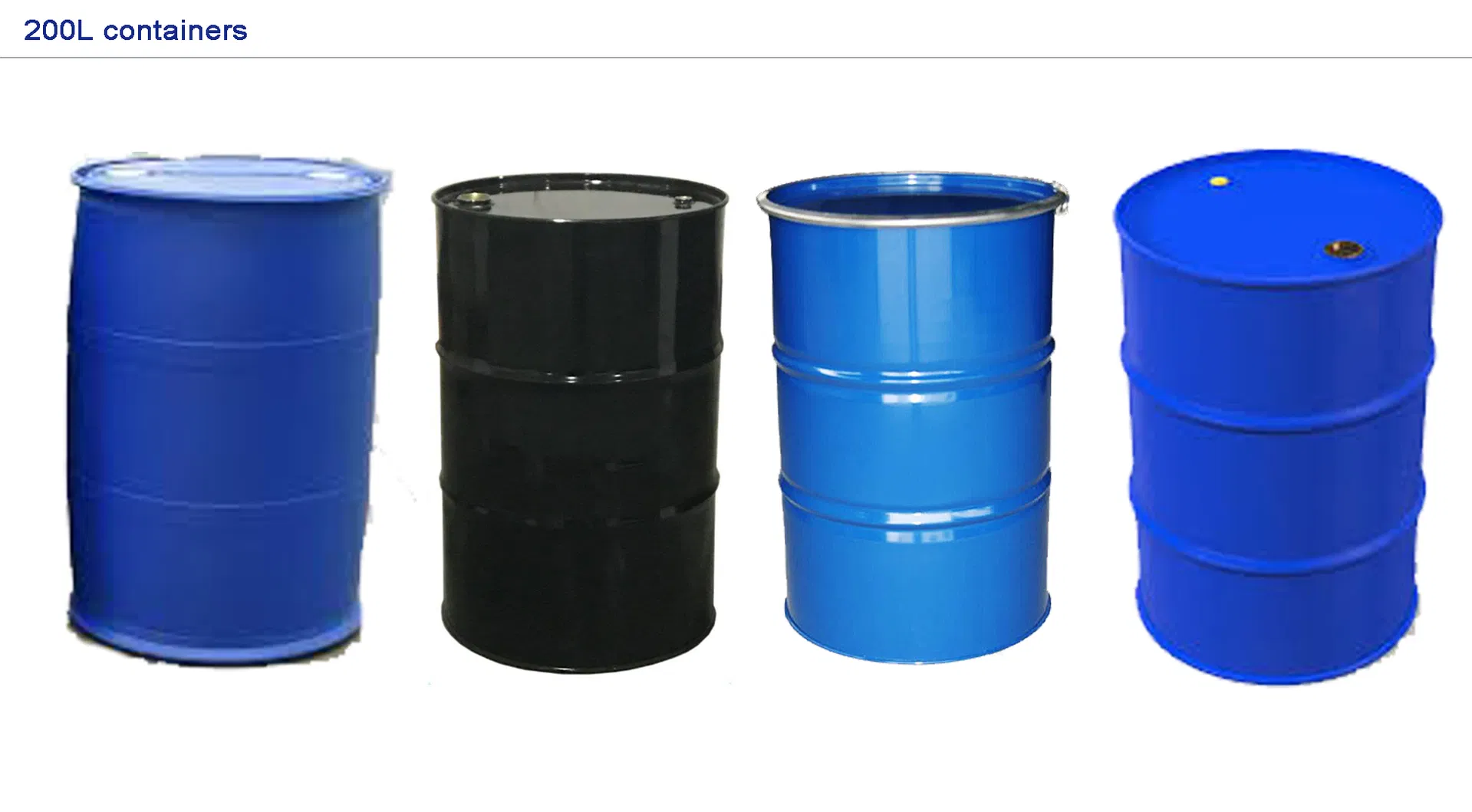

Applicable Barrel Types
Compatible container and barrel types for chemical and liquid filling
Product Advantages
  • Cost-Effective Solution: Lower initial investment than fully automatic systems; ideal for SMEs and batch production.
  • High-Precision Filling (±0.1~0.3%): Uses mass flow meters or load cells for accuracy, minimizing product waste.
  • Bottom Filling (Liquid Underfill): Reduces foam and splashing. Ideal for foamy, volatile, or toxic liquids.
  • Explosion-Proof Options: Certified safe (ATEX/IECEx options available) for flammable liquids such as solvents and paints.
  • Compact Design: Space-saving footprint, ideal for smaller workshops or laboratories without complex conveyors.
  • Easy Operation & Quick Changeover: Simple controls with fast adjustments to handle various liquid viscosities.
  • Durable Construction: Stainless steel structure provides high corrosion resistance and easy cleaning.
  • Core Safety Features: Outfitted with emergency stop mechanisms, overload protection, and barrel detection sensors.

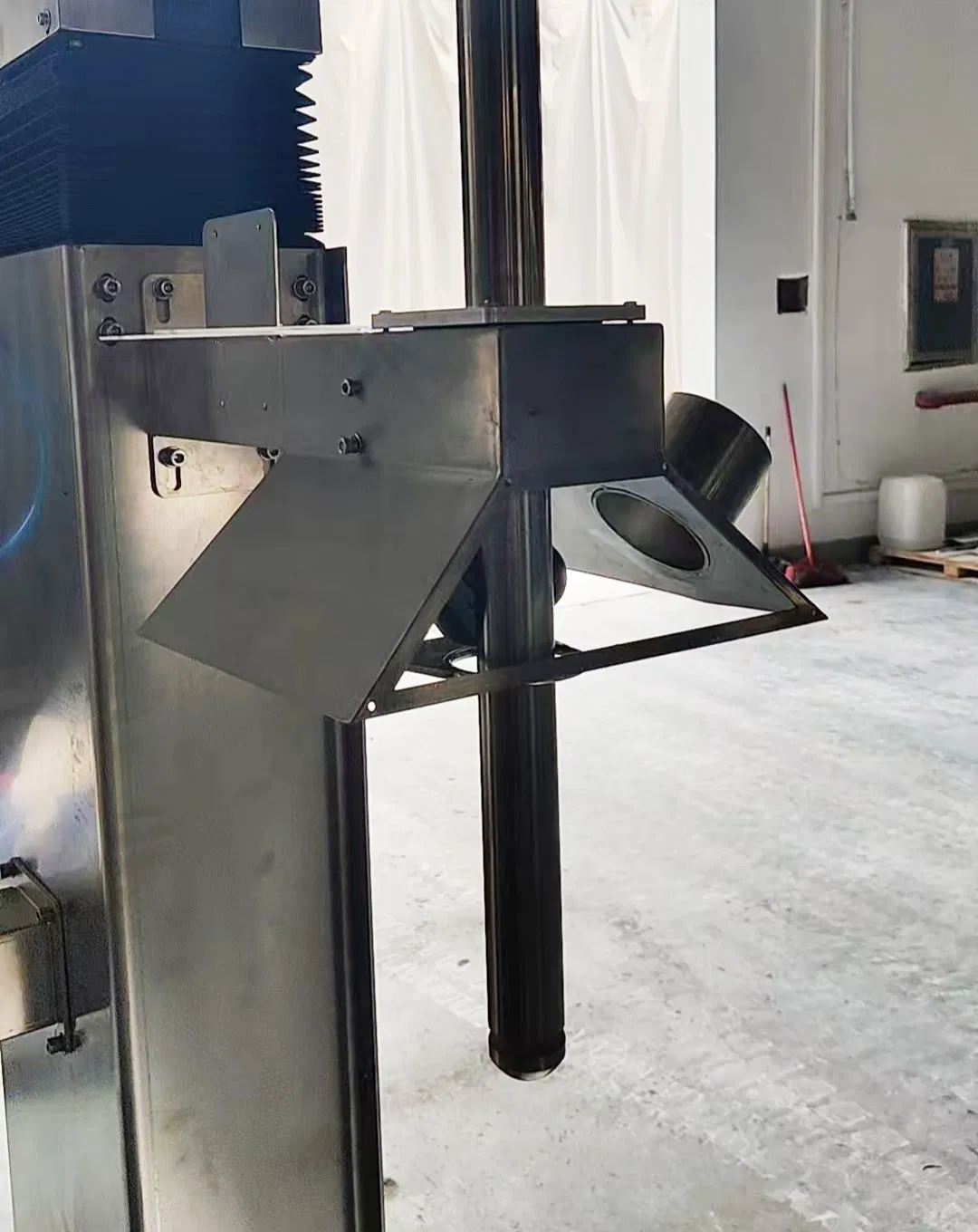

Semi-automatic liquid filling equipment setup
Product Features

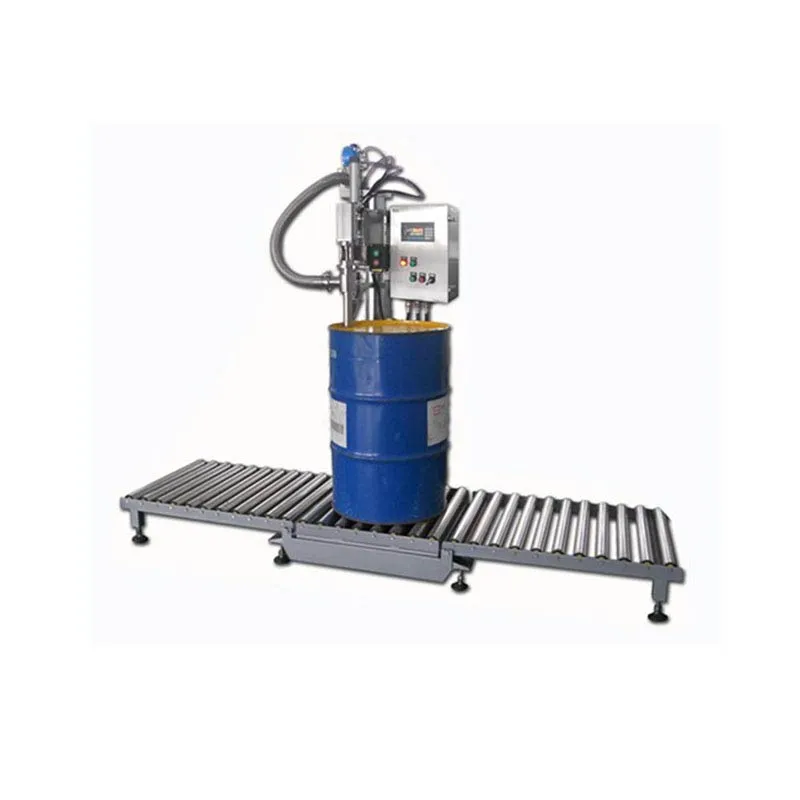

Detailed features of semi-automatic chemical drum filler
  • Filling Method: Bottom filling (submerged nozzle) standard, with optional top filling configuration available.
  • Material Contact Parts: High-grade 316L/304 stainless steel used for nozzle, valves, and piping, paired with chemical-resistant EPDM gaskets.
  • Control System: Intuitively operated PLC combined with a 7-inch color HMI touchscreen, storing up to 10+ preset recipes.
  • Power & Pneumatics: Adaptable 220V/380V 50/60Hz voltage configurations with a clean dry air pressure requirement of 0.5–0.7 MPa.
  • Safety & Cleanliness: Integrated drip tray with a dedicated drainage port alongside dual-circuit emergency stop buttons.
  • Certifications: Fully compliant with standard CE regulations, with optional zone-specific ATEX/IECEx certifications.
Operation Process
Step-by-Step Guide
  • 1
    Positioning: Place the bucket manually on the weighing platform. The system automatically detects the position.
  • 2
    Insertion & Taring: The nozzle automatically enters the bucket mouth, triggers automatic taring, and opens the valve to initiate filling.
  • 3
    Multi-Stage Filling: Executes a four-stage process (large, medium, small, and trace amounts) to reach the precise target weight.
  • 4
    Retraction & Capping: The filling gun automatically closes and retracts. The operator moves the container to the capping area and presses the lock button.
  • 5
    Sealing: The pneumatic system locks the lid in place, ready for manual palletization.
Operating steps diagram for industrial filling machinery
Detail Display

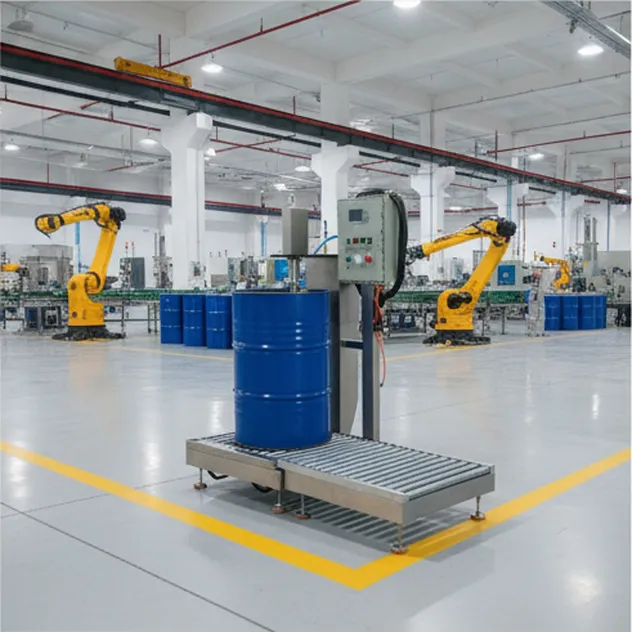

Easy Integration Detail
Easy Integration
Can be connected directly to conveyor systems, capping units, or palletizers for enhanced modularity.

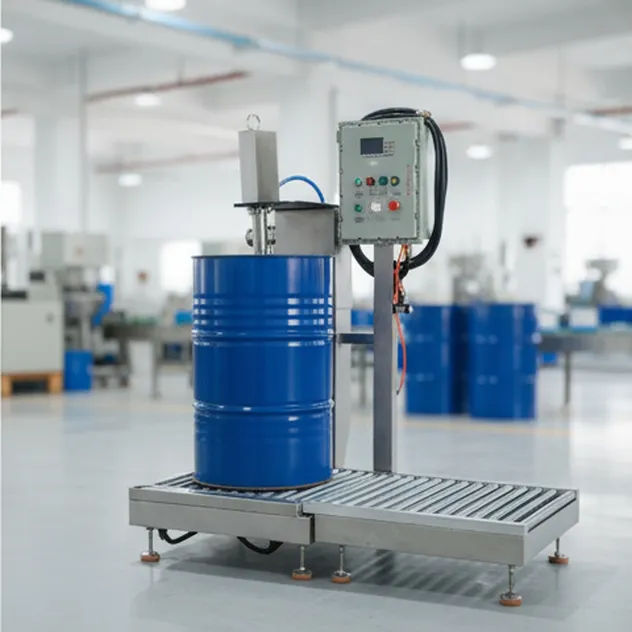

Explosion-Proof details
Explosion-Proof Designs
Optional configurations for hazardous zones featuring dedicated grounding and safety interlocks.

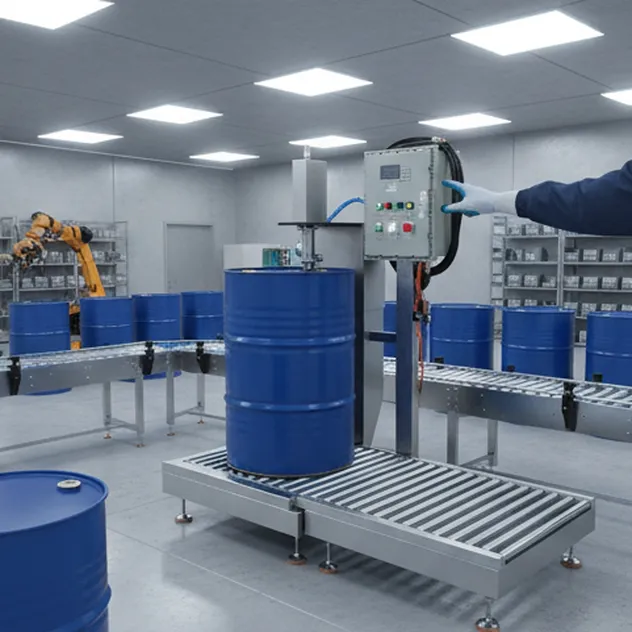

Labor and Time Savings
Labor & Time Savings
Reduces manual handling, lowering operator fatigue and increasing overall workplace output.

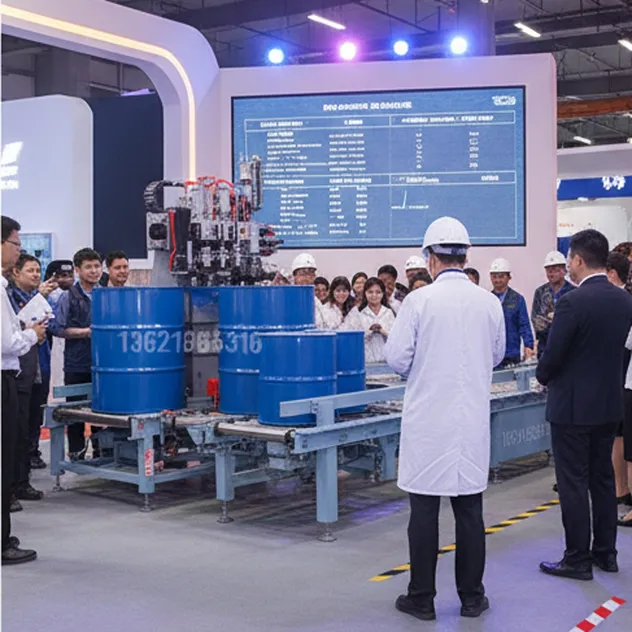

Filling Capacity Detail
Filling Capacity
Optimized for large industrial drums up to 200L per filling cycle.

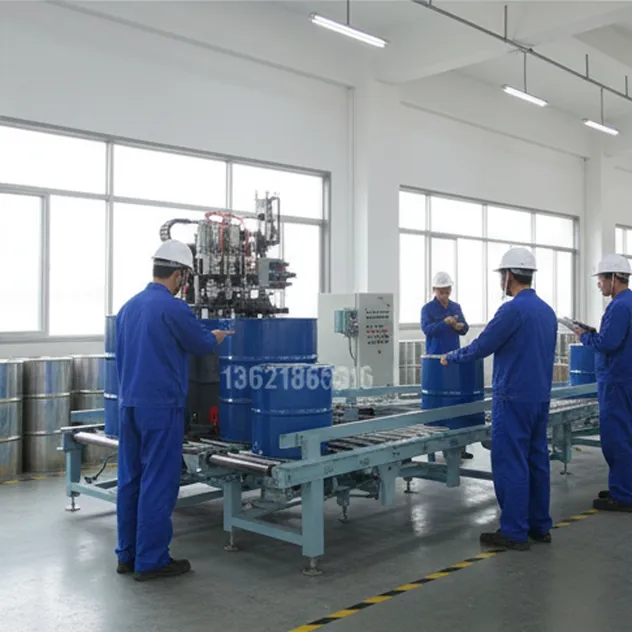

Filling Speed detail
Filling Speed
Ensures steady cycles, achieving 30 to 50 drums hourly depending on liquid viscosity.

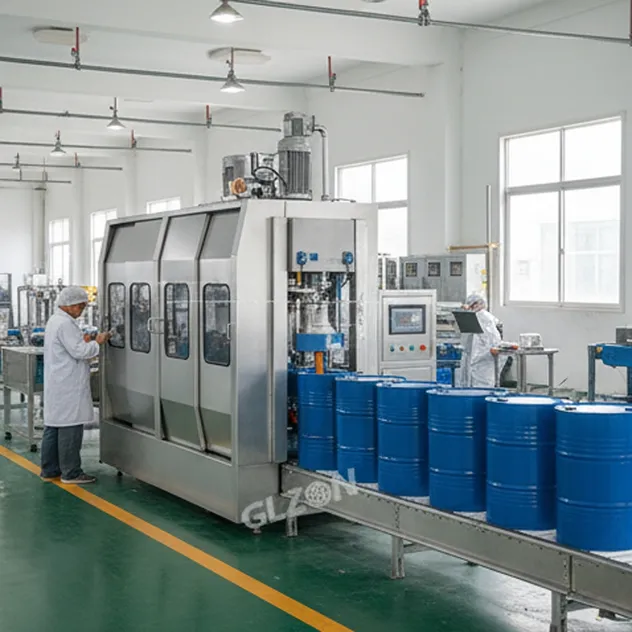

Filling Accuracy detail
Filling Accuracy
Delivers precision control up to ±0.2% variance across batch runs.
Company Profile
Why Choose Us
Why Us?
We focus on long service life, compliant manufacturing, and global spare parts support.
Profile Details
Specialist Manufacturing
Advanced liquid filling lines, powder packing machines, and bulk bag systems.
Our Mission
Our Mission
To provide intelligent packaging automation that enhances productivity and reduces operational costs.
Manufacturing workshop setup

Our manufacturing enterprise specializes in advanced liquid filling lines, powder packaging machines, valve bag fillers, and bulk bag handling systems designed for industrial applications. By incorporating automated weighing controls and heavy-duty components, our solutions aim to increase safety and overall output across global material-handling industries.

Global logistics and production design center

With over 60,000 m² of specialized production space, our facilities focus on high-precision engineering of weighing and packaging systems. Serving sectors such as petrochemicals, food processing, paint manufacturing, and pharmaceuticals, our teams focus on safety, quality, and humanized operating controls. Our reach spans key markets across North America, Europe, Southeast Asia, and South America, ensuring that all equipment is backed by reliable support and certified training programs.

After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours (whichever comes first) to protect your investment.
  • Global Support: 24/7 remote technical assistance paired with a steady spare parts supply network.
  • Operational Training: In-depth, on-site or remote training sessions for operators and maintenance crews.
Customer training session
Global logistics distribution for parts
Support call center operations
Frequently Asked Questions
What's the standard lead time for orders?
Standard models typically ship in 15-30 days, while customized filling units require 30-45 days.
Do you provide after-sales service overseas?
Yes, we have established service centers in key geographic regions to assist with setup, maintenance, and technical queries.
Can I request a customized bucket or drum size?
Absolutely. We offer tailored attachments and filling nozzle adjustments to suit your unique container specifications.
What documents do you provide for export?
We supply a complete export documentation package, including the Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and related compliance files.
What is the standard warranty on this equipment?
We provide a standard warranty of 12 months or 2,000 operating hours, whichever comes first, starting from the dispatch date.
What is the filling accuracy of the GZM-200 machine?
The machine features a precise weighing system offering high filling accuracy up to ±0.2% to ensure consistent packaging control.
