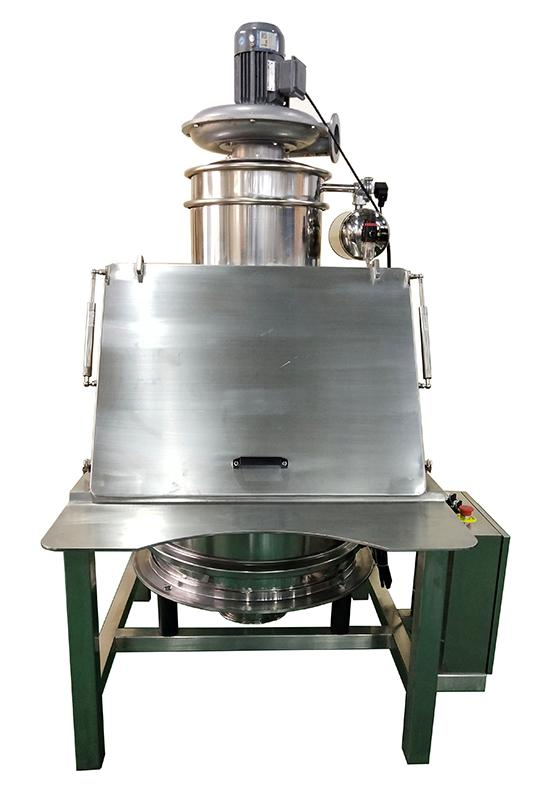

Product Description

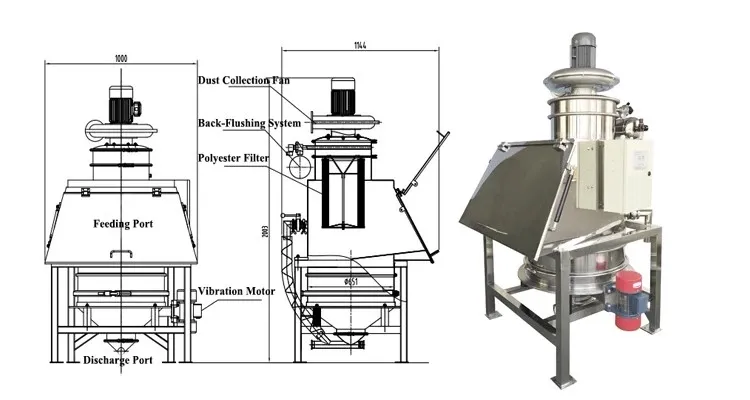

Working Principle
Feeding Station:
- When the small bag powder material needs to be unpacked and poured into the next process, it only needs to be manually unpacked before being put into the system. The material dust generated during feeding is collected by the dust collection fan.
- The material can be intercepted by a vibrator (safety screen) to intercept large blocks of material and foreign objects, thereby ensuring the discharge of particles that meet the requirements.
Technical Parameter
| Model |
WT100 |
WT150 |
| Volume (L) |
80 |
120 |
| Power (W)¹ |
1000 |
1000 |
| Compressed Air Consumption² / Pressure (L/min)/MPa |
50/0.6 |
50/0.6 |
| Discharge Interface |
Quick installation 6 inch |
Quick installation 8 inch |
| Weight (Kg) |
150 |
200 |
| Overall Dimensions (mm) L×W×H |
900×700×1600 |
1050×800×1850 |
Notice:
¹ The power of the selected fan and its electrical appliances is not included.
² Only the compressed air consumption required for the reverse blowing device.

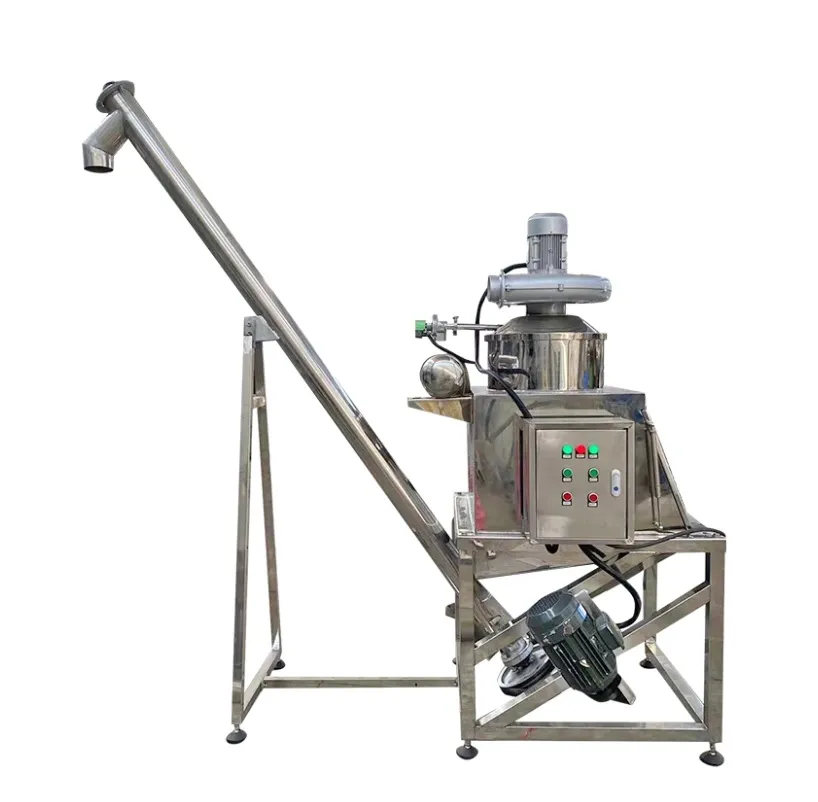

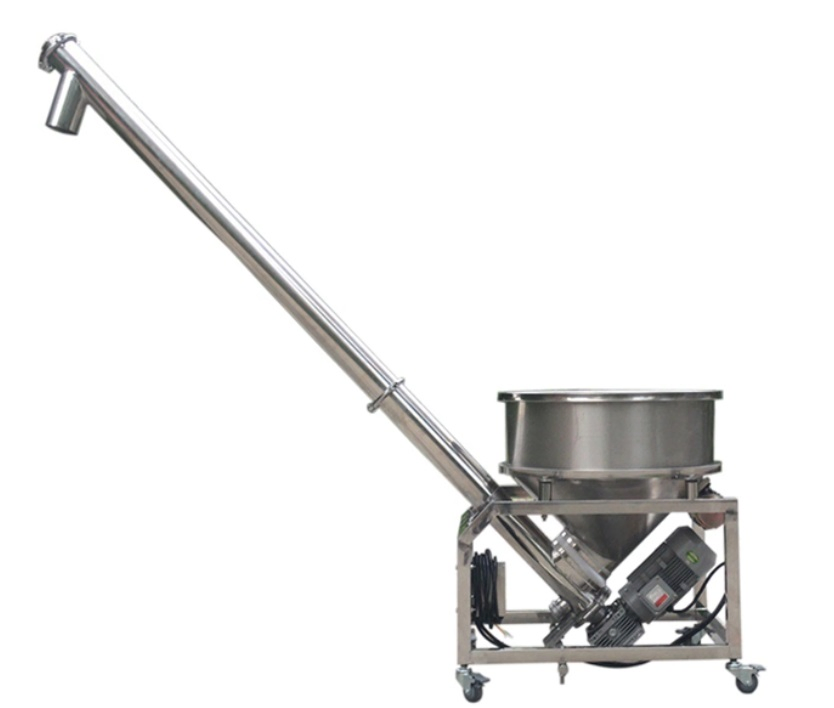

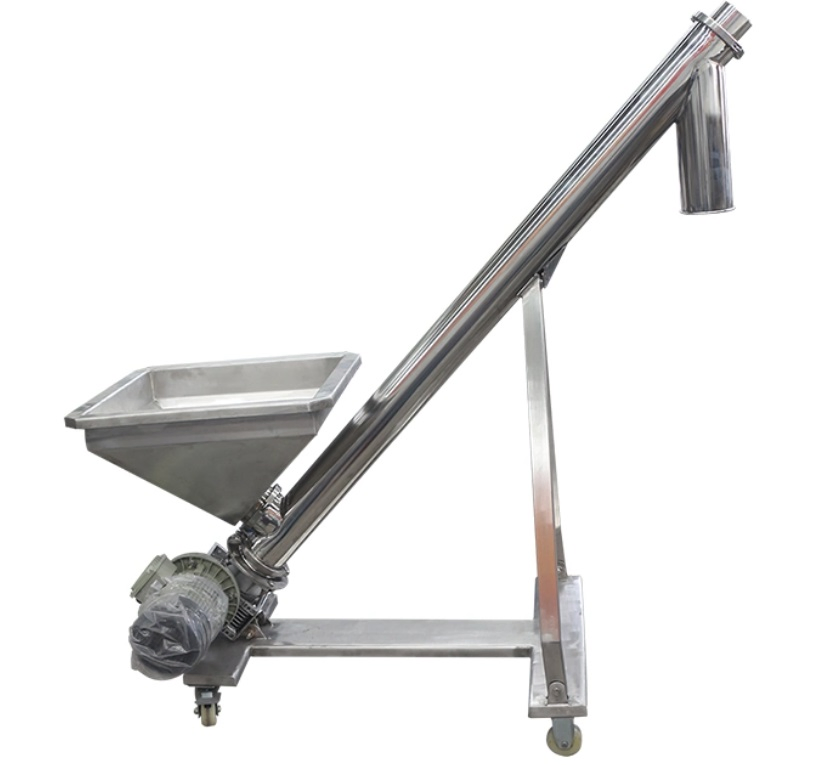

Product Configuration

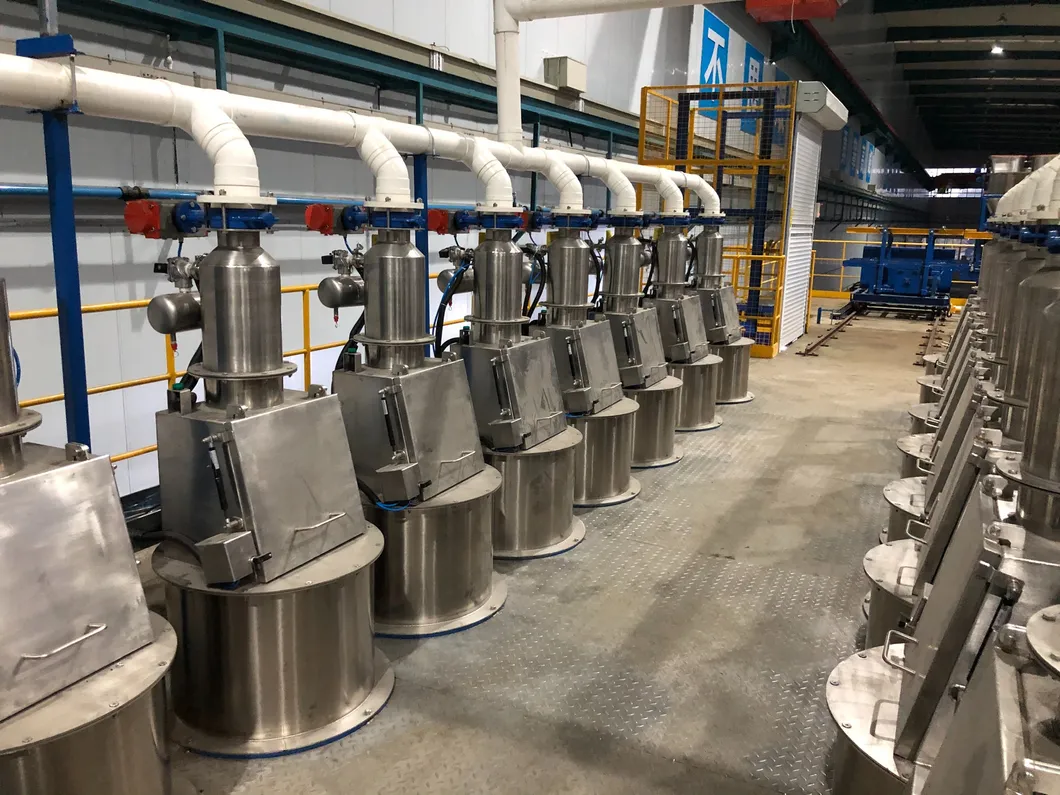

Customer Site

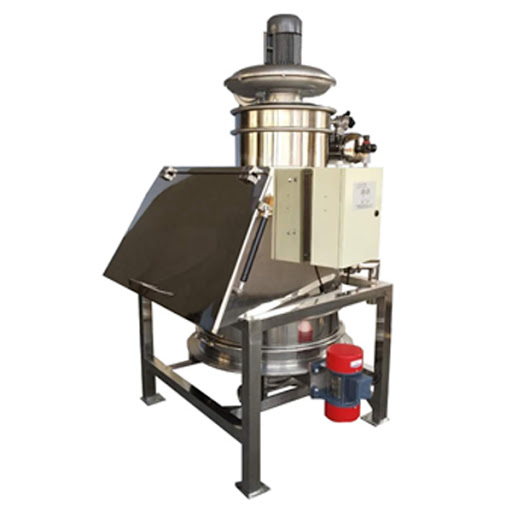

Product Features
Dust-free feeding station:
- The equipment has a dust removal function to prevent dust from flying during the process of unpacking and feeding, reducing material loss.
- A vibrating screen can be installed inside to effectively remove foreign objects.
- The equipment adopts intelligent control, with a high degree of automation and easy operation.
- The internal design of the equipment has no dead corners, making it easy to disassemble and clean.
- The equipment design fully complies with GMP requirements.
Common Troubleshooting
When there is a malfunction in the dust-free feeding station, please check according to the following procedure first:
| Fault Phenomenon |
Fault Cause |
Troubleshooting |
| No backflushing |
The compressed air valve is not open |
Open the compressed air valve |
| Pulse valve malfunction |
Check pulse valve |
| Filter clogged |
Replacing the filter element |
| No electric vibration |
Damaged vibration motor |
Replace the vibration motor |
| The vibration motor is not powered on |
Connect the power supply to the vibration motor |
| Slow or no fan extraction |
Fan damage |
Replacing the fan |
| Filter clogged |
Replacing the filter element |
Application Industry
The dust-free feeding station can handle the unpacking, unloading, and transportation of powdered, granular, and small ton bags. In addition, it is widely used in industries such as petrochemicals, raw materials, plastics, carbon black, mining, food additives, cement, etc. It has a simple structure, low production cost, simple and convenient operation, high cost-effectiveness, and comes with a built-in dust collector to prevent dust from flying.
Customer Reference
Frequently Asked Questions (FAQ)
How does the dust-free feeding station control environmental dust?
The station features an integrated dust collection fan that captures flying dust immediately when bags are unpacked and poured, significantly reducing material loss and maintaining a clean work environment.
Does this feeding station comply with GMP standards?
Yes, the structural design fully complies with GMP requirements. It features a seamless inner structure with no dead corners, allowing for rapid disassembly and easy cleaning.
What industries are suitable for this dust-free feeding system?
It is highly effective for materials processing in petrochemicals, plastics, raw materials, cement, food additives, carbon black, and mining fields.
What causes a lack of backflushing and how can it be resolved?
This is typically caused by a closed compressed air valve, a faulty pulse valve, or a clogged filter. You should open the valve, inspect the pulse valve, or replace the filter element accordingly.
How do I troubleshoot poor fan extraction or slow performance?
Check if the fan is damaged or if the filter element is clogged. Replacing the damaged fan or cleaning/replacing the filter element usually restores normal operation.
Are the dimensions and chute sizes customizable?
Yes, both the overall dimensions and the chute sizes can be customized to match your specific production line layout and requirements.
