Advanced Fully Automatic Film Feeding and Rewinding System for High Stability

Customization:	Available
After-sales Service:	Overseas Engineering Team Technical Support
Warranty:	One Year

Basic Specifications

Model NO.	BY-FR500
Usage	Paper Printer, Label Printer, Card Printer
Automatic Grade	Automatic
System Supported	Windowsxp32
Product Name	Friction Feeding and Rewinding Machine
Keywords	Rewinding Machine
Material	Stainless Steel/Painted Carbon Steel
Feature	High Efficiency , Multi-Function, Stable
OEM Custom	Yes
ODM Custom	Yes
Package	in Standard Export Package
Transport Package	Standard Packaging or Customized
Specification	Standard Specifications or Customized
Production Capacity	100sets/Year

Product Description

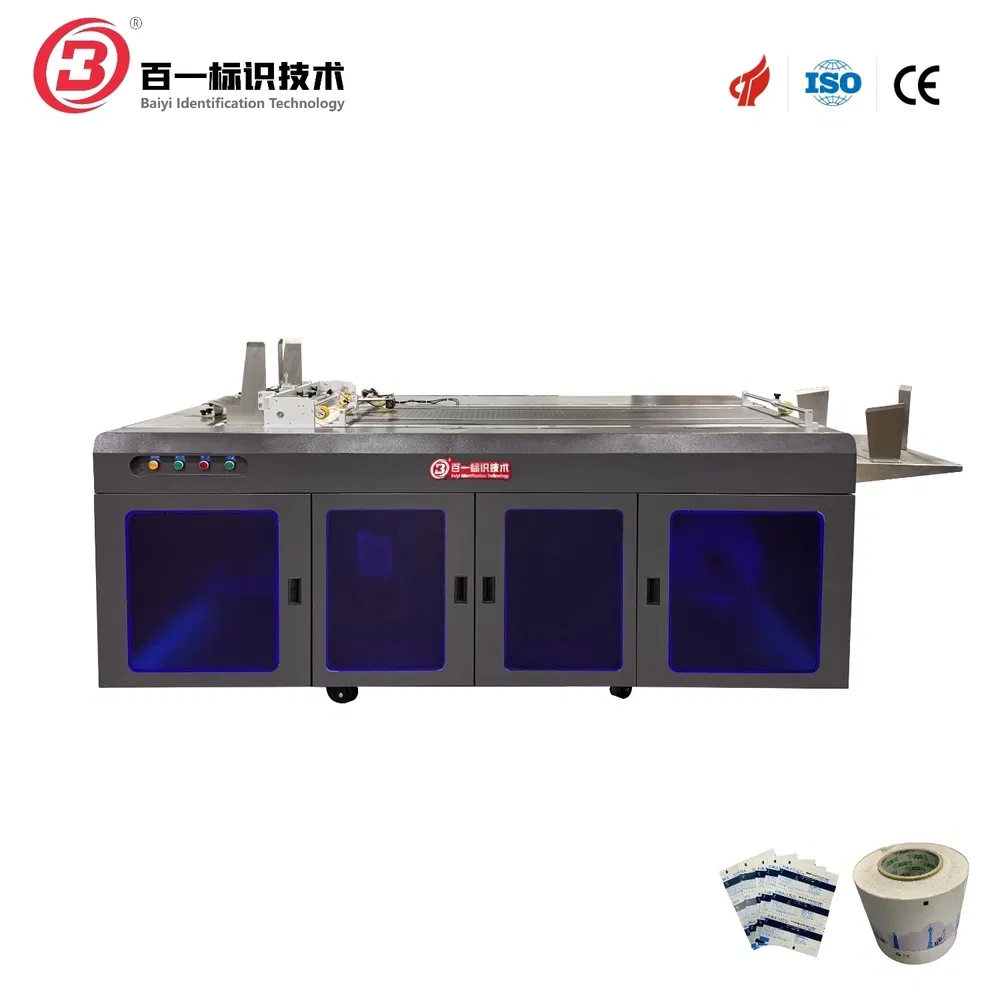

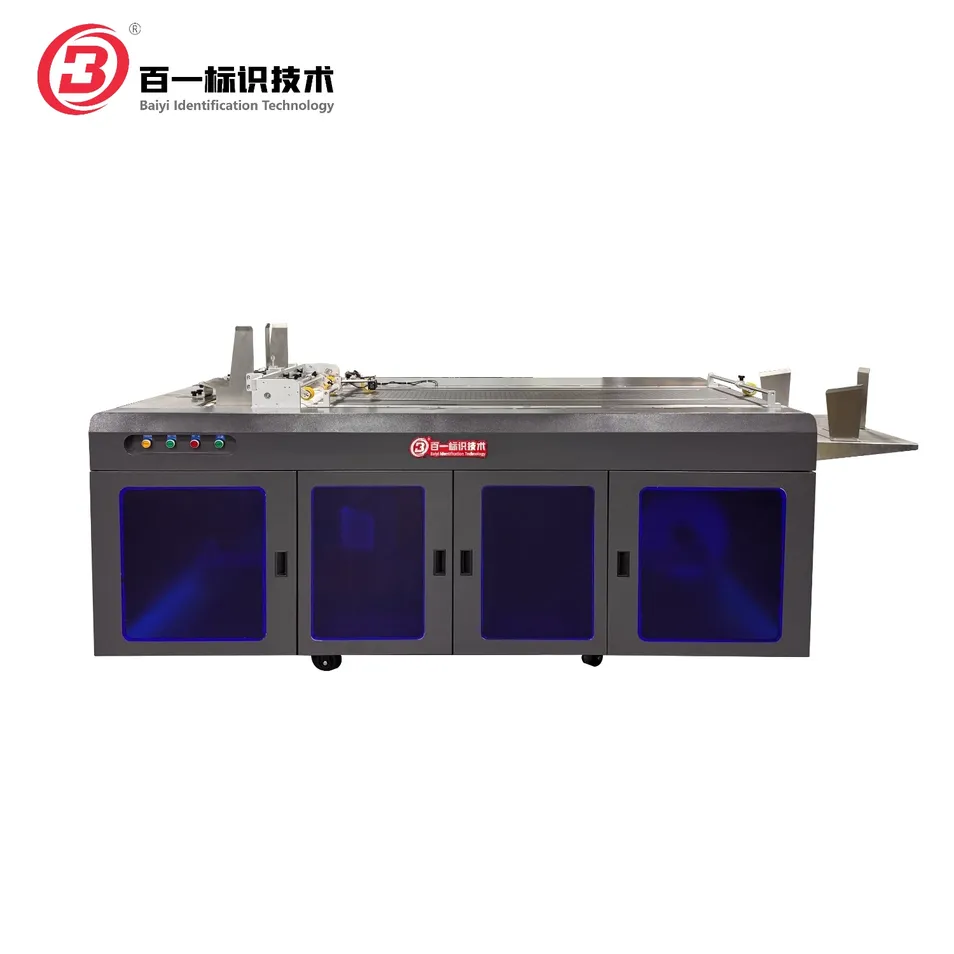

Advanced Fully Automatic Film Feeding and Rewinding System for High Stability

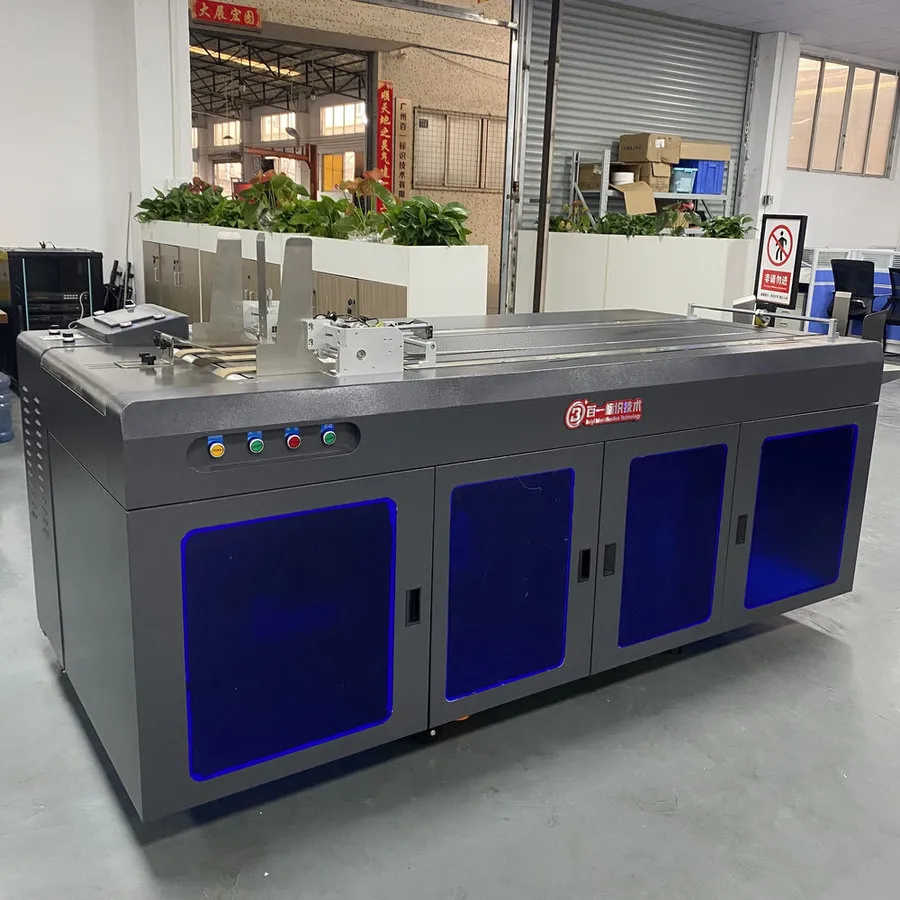

FEEDING AND REWINDING MACHINE

This advanced intelligent feeding and rewinding machine is a versatile solution specifically designed for sheet material and roll material feeding, unwinding, and rewinding operations.

Integrating cutting-edge intelligent feeding technology with professional rewinding capabilities, this all-in-one machine delivers exceptional "one machine, multiple purposes" functionality by accommodating TTO thermal transfer printers, UV printing systems, CIJ inkjet printers, TIJ printers, and laser marking systems for comprehensive coding and printing applications.

The modular structure design supports both continuous and intermittent feeding modes, allowing customizable configuration based on specific production requirements across diverse industries including flexible packaging, label manufacturing, film processing, and materials converting. This high-performance feeding and rewinding equipment represents the optimal choice for manufacturers seeking efficient, intelligent, and multi-functional roll-to-roll processing solutions.

Application Fields

Industry Applications

Flexible Packaging Industry: Roll film feeding, printing, and rewinding for food packaging, pharmaceutical packaging, and consumer goods wrapping materials.
Label Manufacturing: Production of adhesive labels, product tags, barcode labels, and identification stickers with integrated printing and finishing.
Film Processing & Converting: Handling plastic films, BOPP films, PET films, aluminum foil, and specialty materials requiring unwinding and rewinding operations.
Variable Data Printing: Batch coding, expiration dates, serial numbers, and personalized information on roll materials using integrated printing systems.
Pharmaceutical & Food Industries: Compliance coding and marking on packaging materials with precise tension control for delicate substrates.
Industrial Materials Processing: Roll-to-roll processing for technical textiles, protective films, release liners, and specialty converting applications.

Technical Parameters

Parameter	Specification	Parameter	Specification
Voltage	220Vac, 50Hz	Releasing Tension Control	Linear Tension Control
Efficiency	About 500 Pcs/Min (Reference for 100mm size; depends on printing speed & frequency)	Weight	About 500Kg
Collection Tension Control	Linear Tension Control	Conveyor Speed	5-150 M/Min (Continuously Adjustable)
Power	About 4.5Kw	Dimension	L 2600 * W 1000 * H 1200 mm

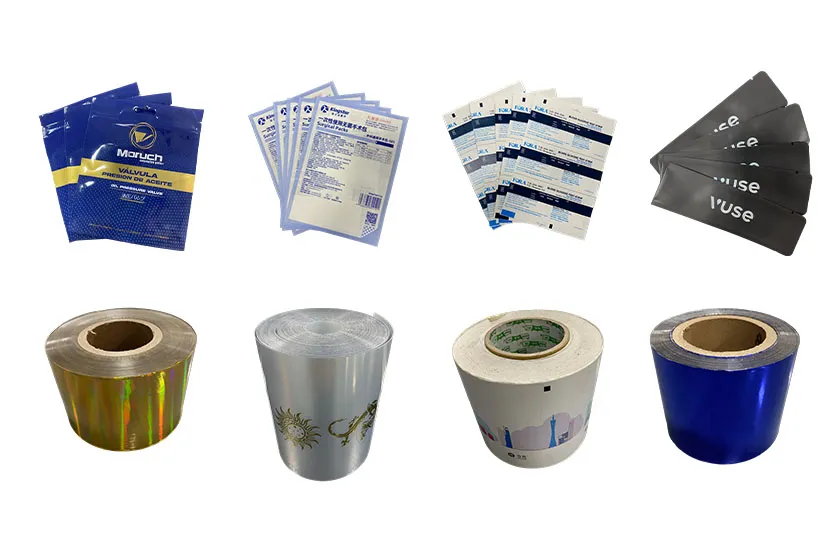

Available Product	BOPP, CPP, PET, PE, Paper, Composite Film, Aluminized Film, etc. (Roll and Sheet format)	Core Diameter	3 Inch (76mm)
Available Product Size	Material Width: 30-480mm, Max Material Diameter: 500mm, Max Weight For Material: 50Kg

Detailed Gallery

PROGRAMMABLE PARAMETER SETTINGS

Customizable working parameters adaptable to different films and label structures with real-time monitoring and alarms.

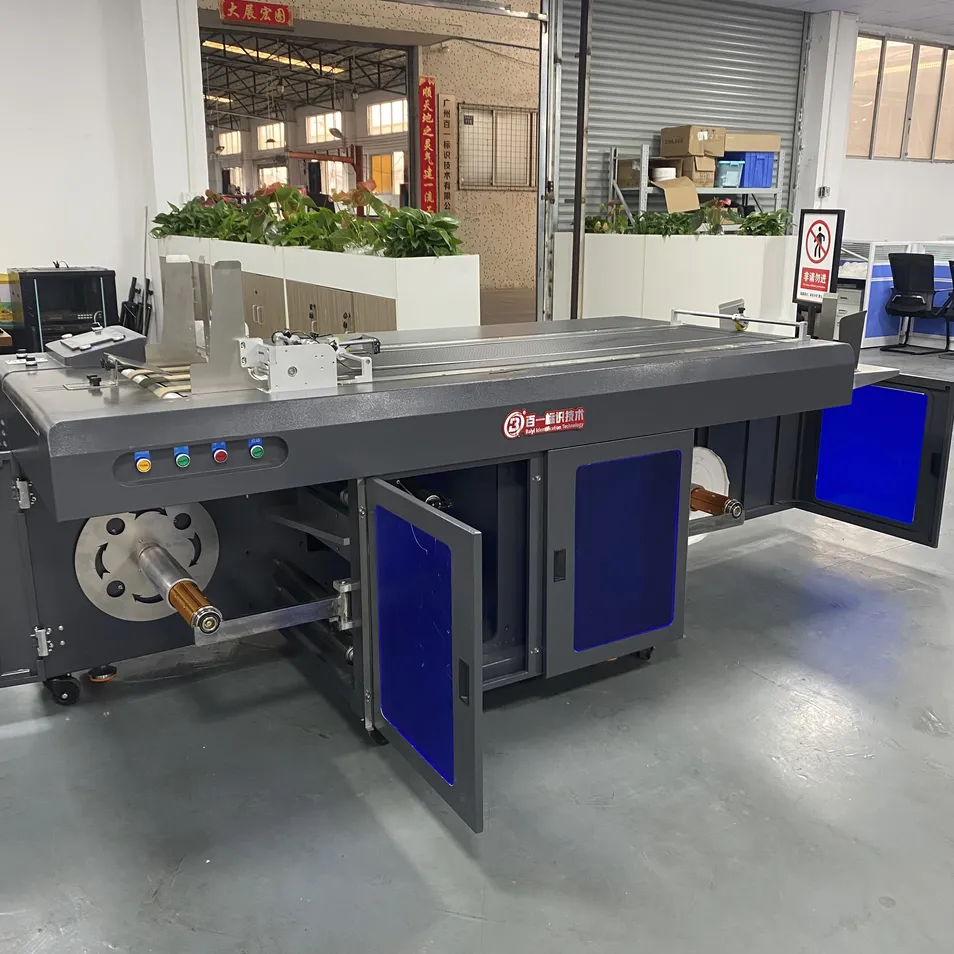

MULTI-FUNCTION CAPABILITIES

Adjustable lifting speeds, auto-shutdown prevention, mark sensor triggers, and precise counting functions.

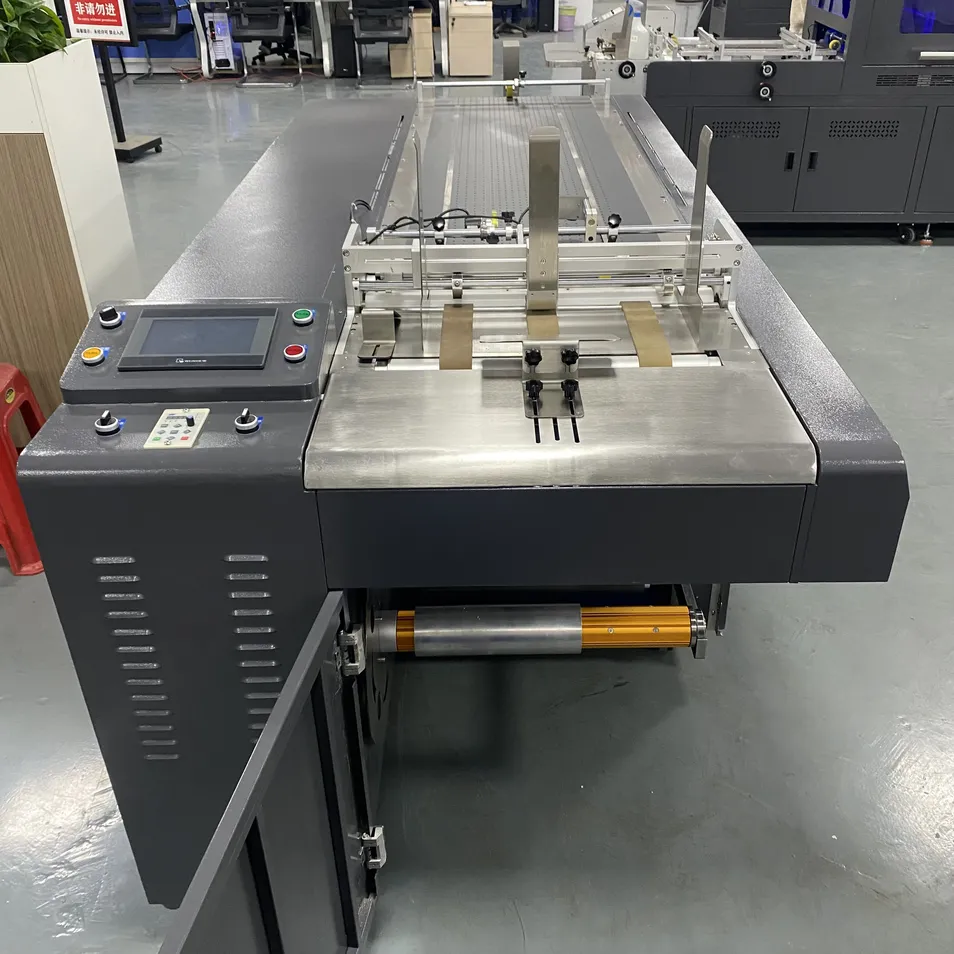

ENHANCED SPEED & PERFORMANCE

Built upon a standard rewinding foundation with upgraded speed capabilities and high-volume performance.

REAL-TIME STATUS MONITORING

HMI system displays current working status, production counts, diagnostics, and intelligent alarms.

System Configurations

1. Feeding System Configuration

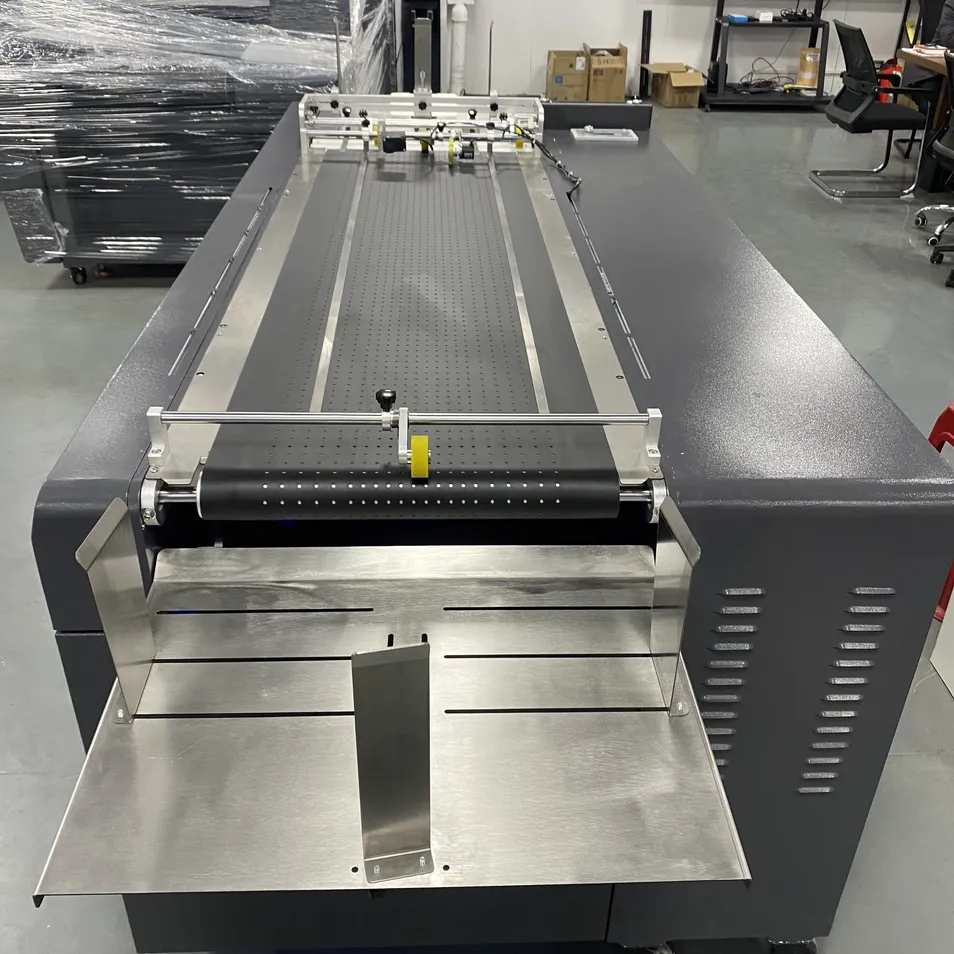

Feeding Method: Down-out feeding using a multi-friction belt
Friction Belt Adjustment: Independent electric adjustment controls
Vacuum Extraction: Heavy-duty large flow vacuum pump
Collection System: Integrated collection tray
Conveyor Dimensions: 2000mm * 500mm

2. Rewinder Configuration

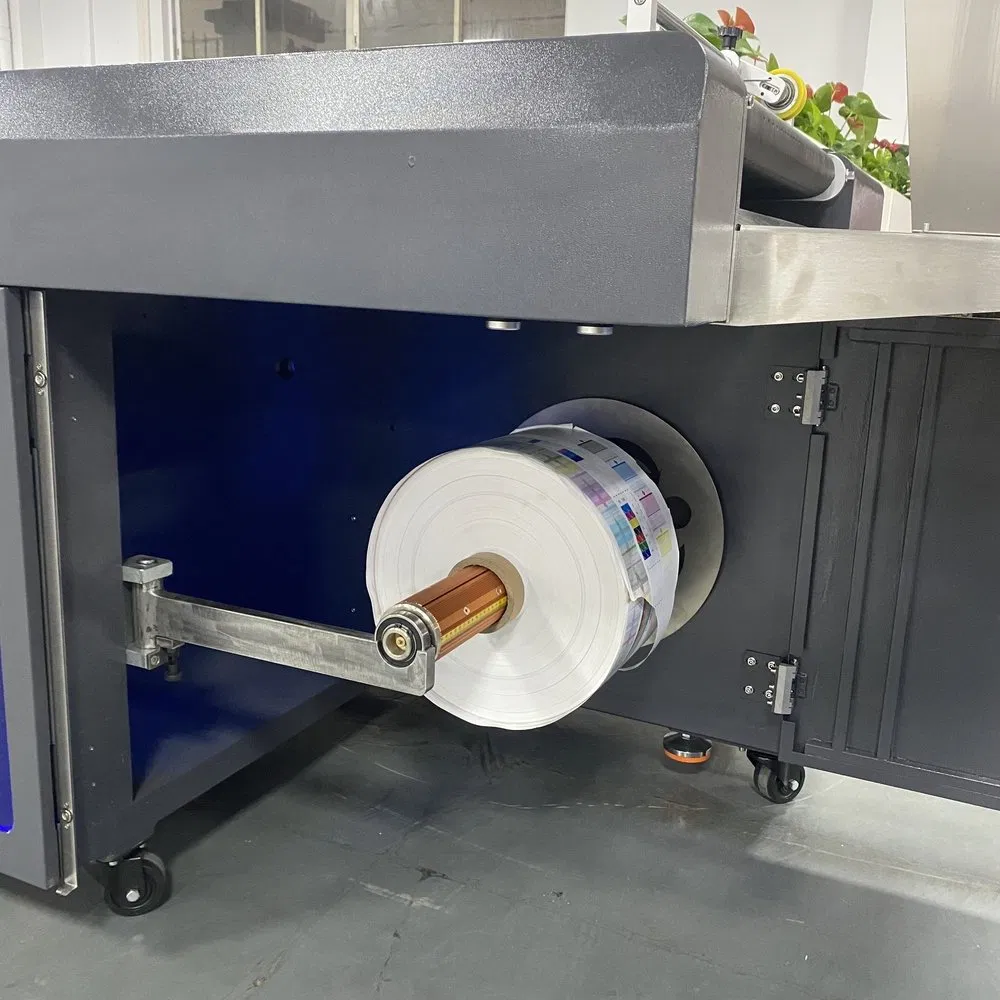

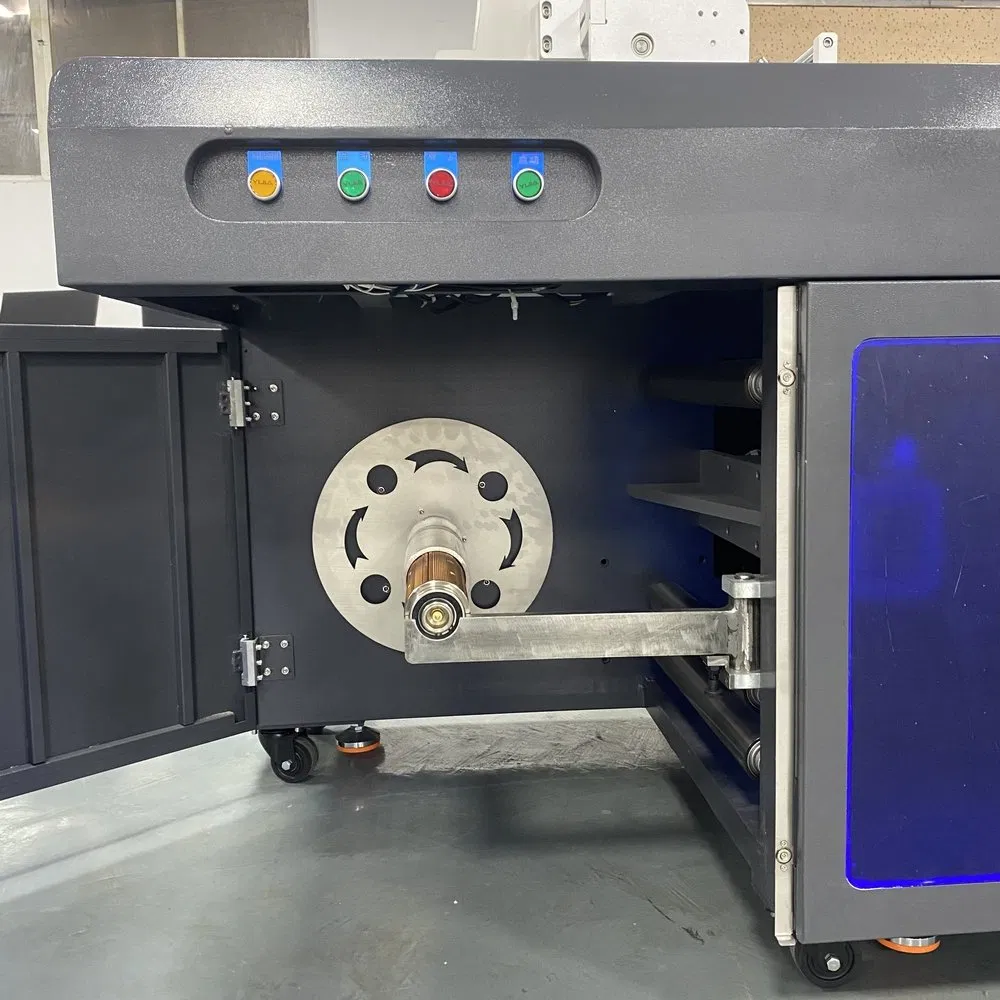

Axes: Inflation axis for both unwinding & rewinding
Drivers: Precision Servo drivers for unwinding, rewinding, and traction
Tension Control: Dynamic linear tension control
Inner Core Diameter: 76mm (3 inch)
Max Roll Diameter: 600mm
Roll Width Range: 30 - 600mm
Compatibility: Ready for UV inkjet, laser marking, TIJ, and CIJ printing systems

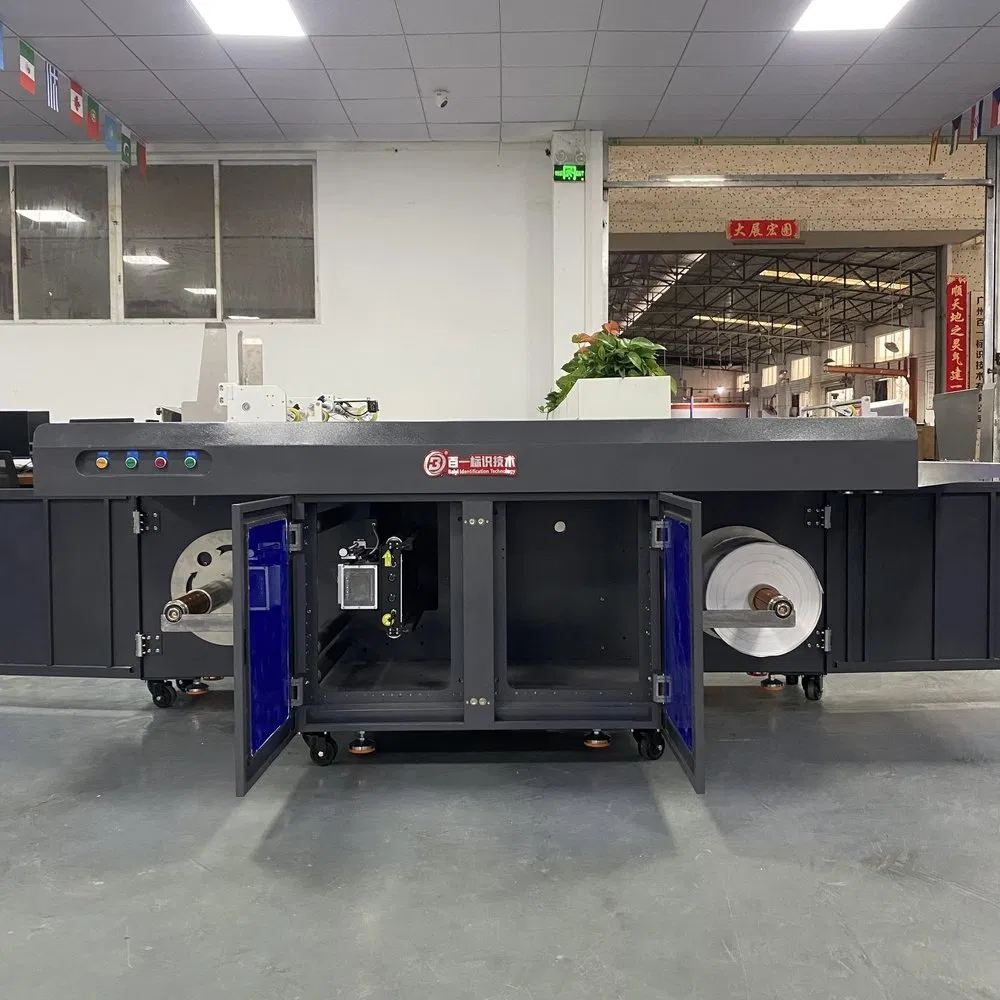

Detailed Views & Structural Modules

Frequently Asked Questions

What are your prices?

Price is related to the machine configuration according to your specific production requirements.

Do you have a minimum order quantity (MOQ)?

Yes, our minimum order quantity (MOQ) is 1 set. If you are looking to distribute or resell in smaller amounts, feel free to browse our catalogue.

Can you supply the relevant documentation?

It depends on your exact compliance standards, and we can process corresponding documentation applications accordingly.

What is the average lead time?

Average delivery times vary depending on the chosen configuration and customization requirements, ranging from 2 working days up to 30 working days.

What payment methods do you accept?

Currently, we accept T/T (Telegraphic Transfer) payments. The standard terms are a 50% deposit after order confirmation, with the remaining balance settled prior to shipping.

What is the product warranty?

We provide a one-year warranty on our machinery starting from the date of delivery. Please note that wearable parts and consumable components are excluded from this standard warranty.
