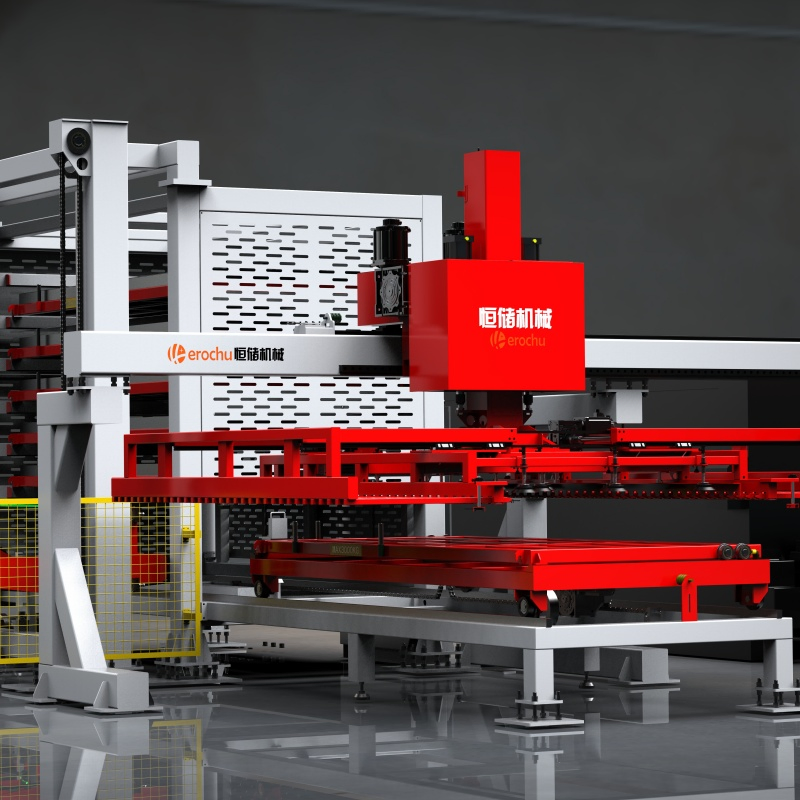

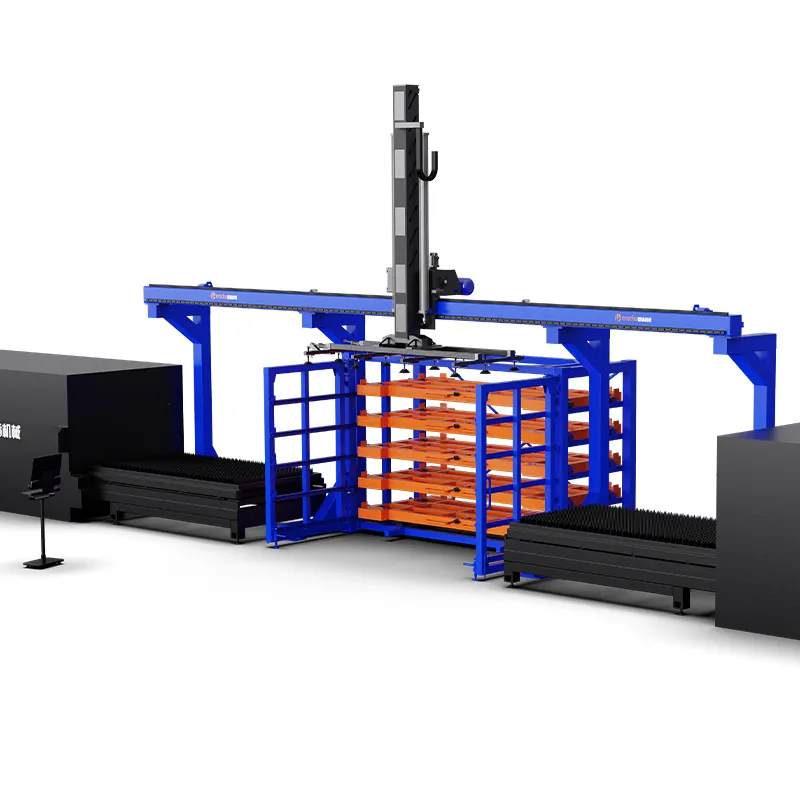

Advanced One-Side Gantry Feeding System with Auto Material Storage

1 / 5

Advanced One-Side Gantry Feeding System with Auto Material Storage

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

HC-A3015

Usage

Tool Rack, Industrial, Warehouse Rack

Material

Steel

Structure

Drawer

Type

Multi-Level Racking

Mobility

Adjustable

Height

5-15m

Weight

500kg

Closed

Open

Development

New Type

Serviceability

Common Use

Number of Floors

8-13

Loading Per Layer

3t/5t

Maximum Load

300kg-3000kg

Air Source

0.6-0.7MPa

Transport Package

Standard Export Packaging

Specification

Customizable

Trademark

Herochu

Origin

China

HS Code

7308900000

Production Capacity

10000set/Year

Product Description

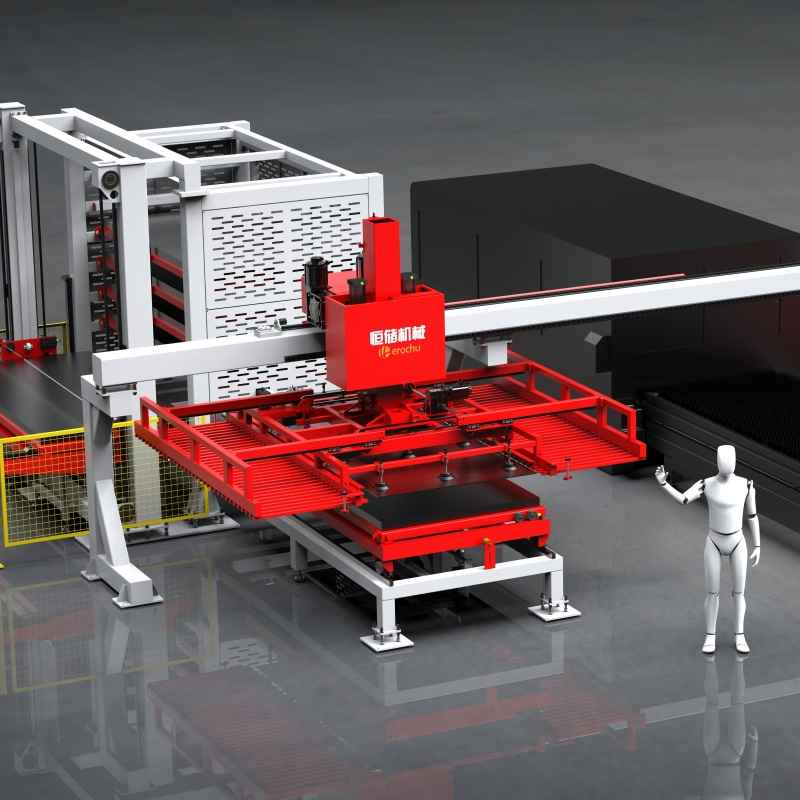

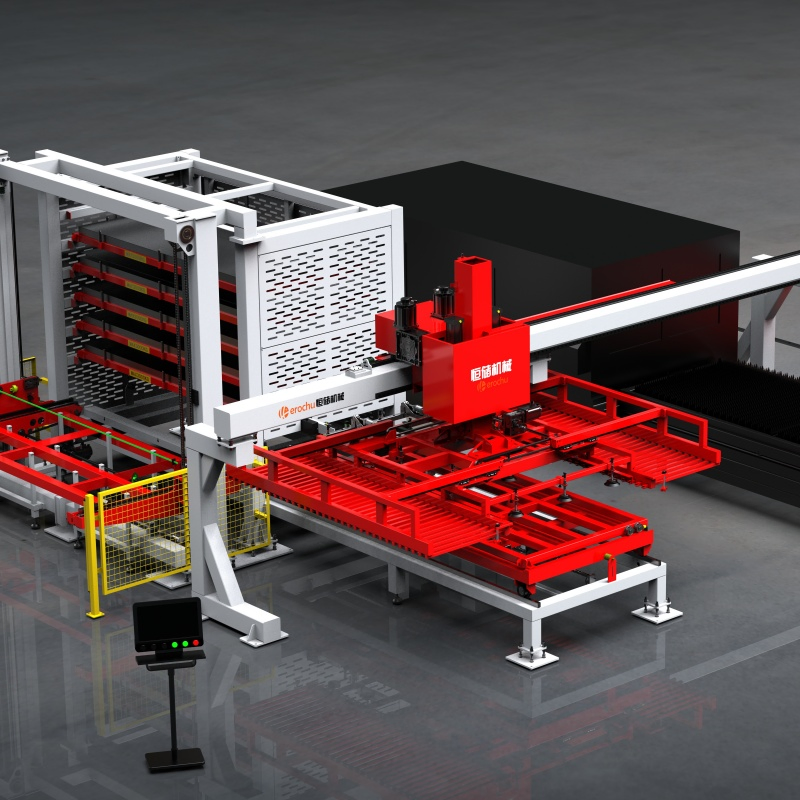

The system consists of a set of three-dimensional storage warehouse, a set of double-sided gantry truss, a set of loading truss manipulator, a set of unloading truss manipulator, a set of double-layer finished material truck, PLC control system, and laser cutting machine to form a sheet metal automatic production unit. It can realize the task of centralized three-dimensional storage, automatic discharging, automatic taking, automatic splitting, automatic loading, automatic unloading and so on.

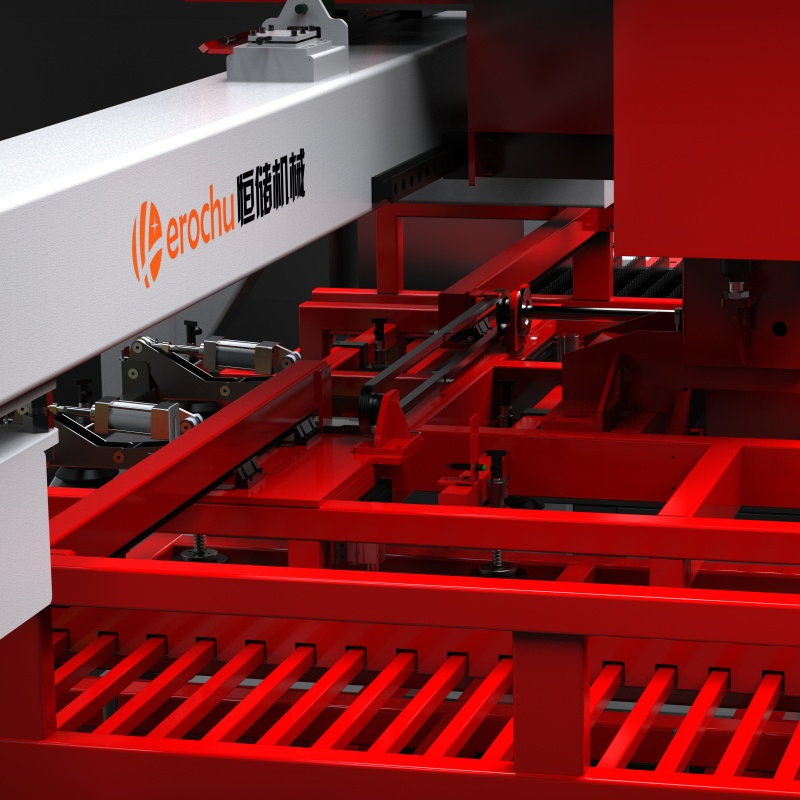

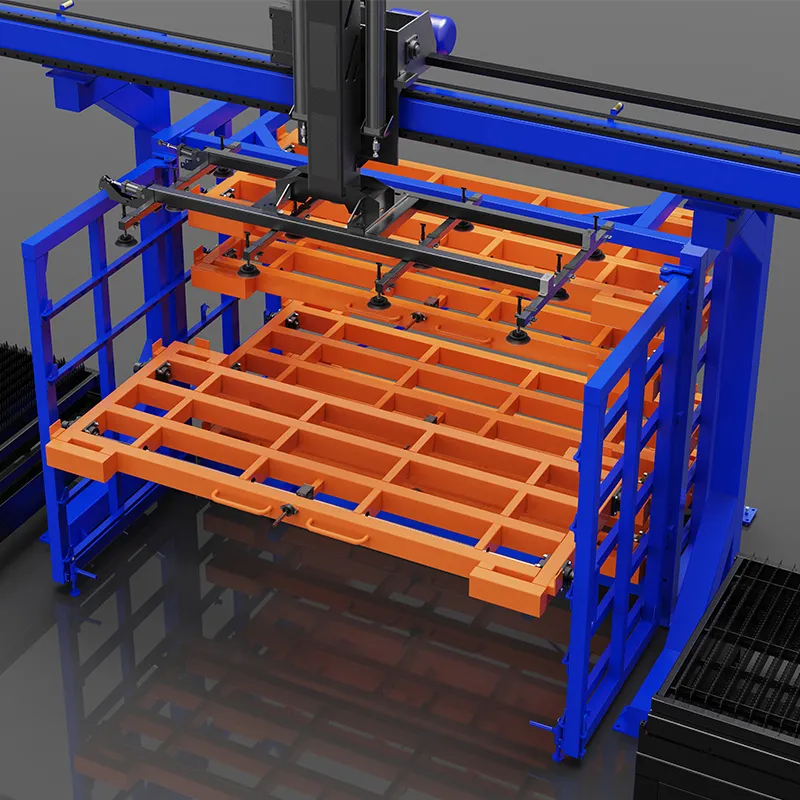

Advanced One-Side Gantry Feeding System Detail 1

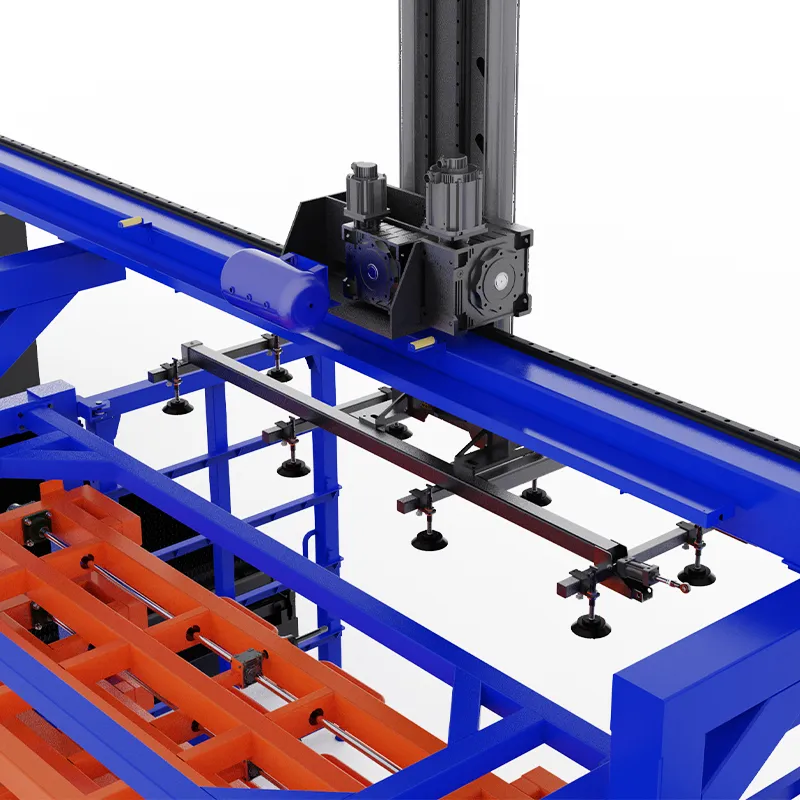

Advanced One-Side Gantry Feeding System Detail 2

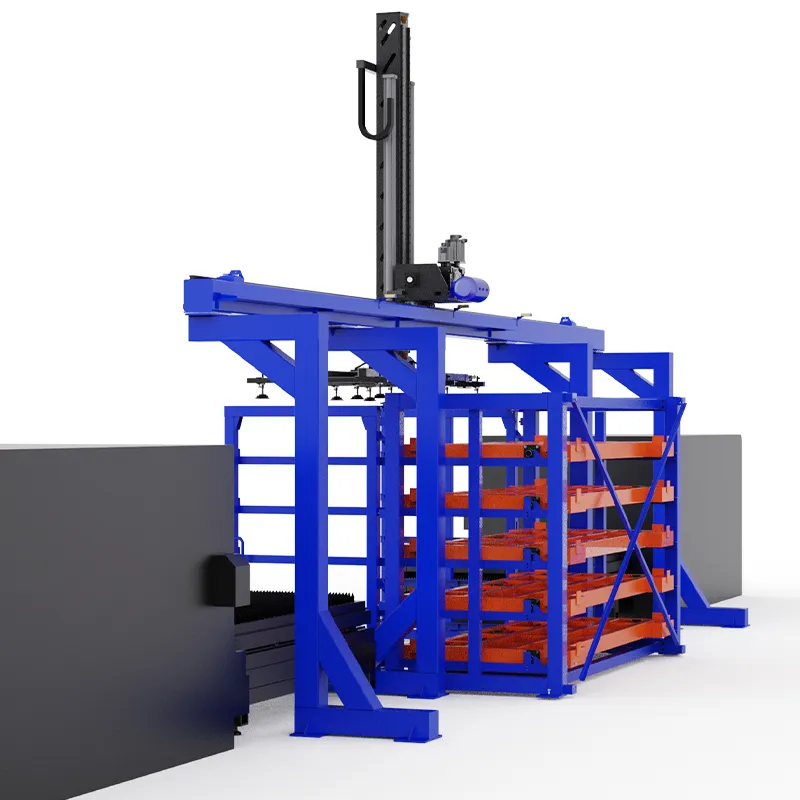

Advanced One-Side Gantry Feeding System Detail 3

Specification	3015/4015/4020/6015/6020/6025mm
Number of floors	8-13
Load per layer	3T/5T
Maximum load	300KG-3000KG
Air consumption	1.5m³/min
Air source	0.6-0.7Mpa

QHow can I proceed with procurement?

You can specify your requirements, and we will provide you with a suitable technical solution and quotation based on your parameters.

QHow can I let you know what suitable robotic arm I need?

You can inform us of the materials you want to transport, as well as the size, thickness, and weight of the materials. Our professional technical team will analyze your requirements and provide the best recommendation.

QDo you need a loading robotic arm or an integrated loading and unloading system?

Loading and unloading require the size of the laser cutting machine table to meet the requirements. It is also necessary to know the specific loading method: board rack, exchange platform, or material warehouse.

QCan you provide on-site installation and debugging?

Yes, we can send professional personnel to the factory to install and debug the robotic arm until successful trial operation. Our team has served in South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, Mexico and other places.

QHow will you ensure the quality of the product?

We have over 40 technical engineers, and we will have professional mechanical engineers to debug and solve any concerns. There is a dedicated quality inspection department that strictly implements ISO9001 quality standards to ensure product quality meets standards. We have professional CE certification to ensure smooth exports. Load testing shall be conducted before the equipment leaves the factory to ensure the safety and stability of the structure.

QHow can I check the strength of the manufacturing facility?

We support video factory inspections and welcome visitors to our facility for on-site visits to check the production scale and standard capabilities.
