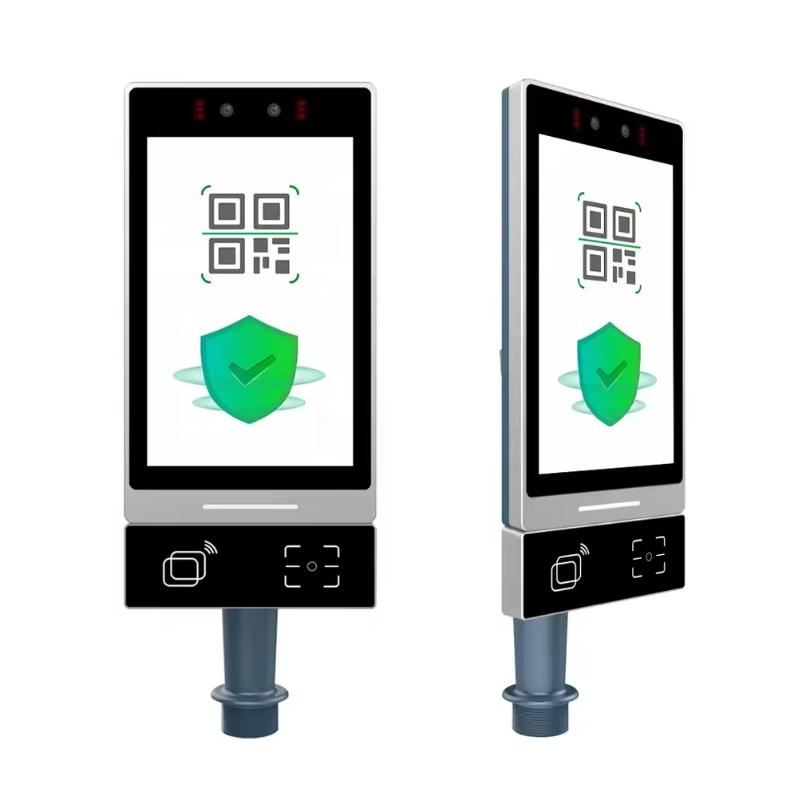

20000 Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Sdk

Customization: Available
Screen: Color Screen
Application: Community, Garage, Company, Hotel, Warehouse, Parking, Hospital, Campus, Supermarket, Enterprise, Factory, Park

Product Description

Overview
20000 Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Sdk
Face recognition is a kind of biometric identification technology based on human facial feature information. A series of related technologies that use a video camera or camera to collect images or video streams containing human faces, automatically detect and track human faces in the images, and then perform facial recognition on the detected faces, usually also called portrait recognition and facial recognition.
Model NO. RS 8002E1
Clock With Clock
Voice Service With Voice Service
Facial Capacity 1200
Communication Interface RS485, RS232, USB, TCP/IP
Product Name Face Recognition
Credits Card Reader Optional IC/ID Card
Face Library 30,000+
Temperature Detection Distance ≤1m
Transport Package Wooden Parking Box
Specification CE, ROHS, FCC, SGS
HS Code 85308000
Production Capacity 1000 PCS/Month
Product Parameters
Parameter Specification Details
Product Name Temperature Face Recognition
Model RS 8001E1
Screen 8.0 Inch, HD 800*1280, Capacitive Touch Screen
Operation system LINUX3.10
CPU, NPU 1.2G Dual-Core ARM Cortex-A7, 1200G (1.2T)
Binocular camera 200W Colorful WDR + 200W Infrared live camera
Verification Face recognition, password, 1D/IC card (optional)
Recognition Distance 0.5~2.5 meters (0.5~1.5 meters with live face recognition on)
Face/Card/Password capacity 50000 / 50000 / 50000
Power supply DC 12V, 2A
Network Communication TCP/IP, Support CIS LAN communication, Wifi (optional)

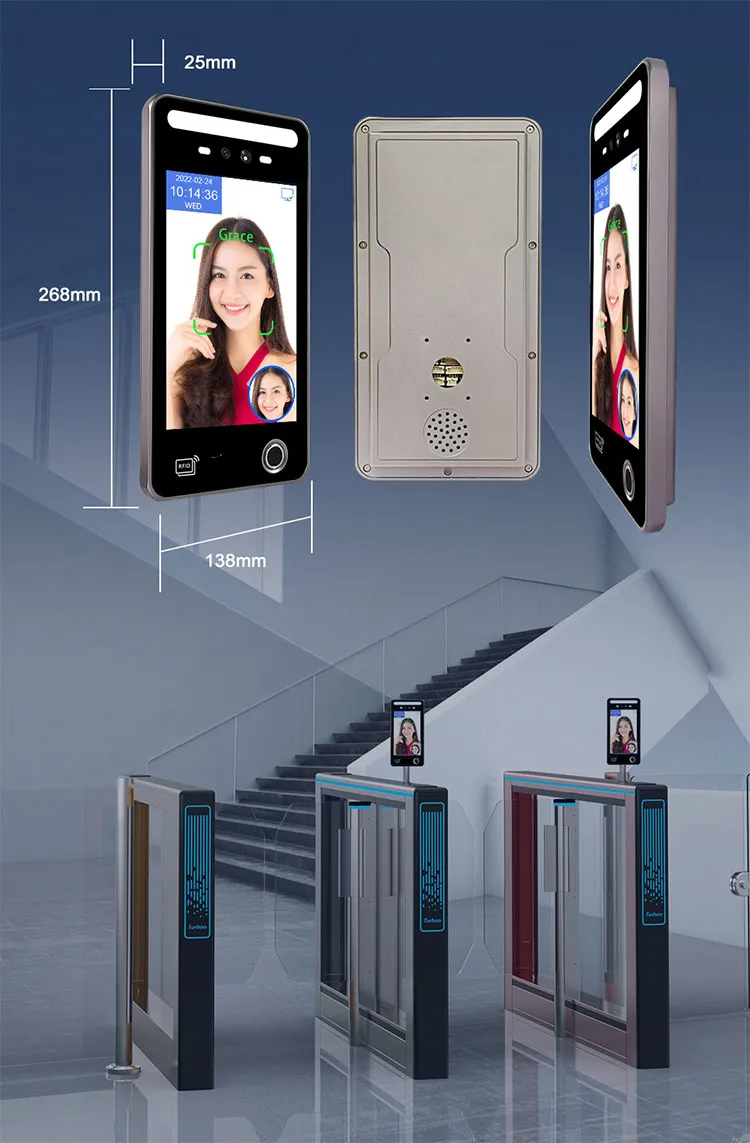

Machine Dimension 265x132.6x20mm
Resolution 800*1280
Language Chinese, English, Spanish, French, Turkish, Thai, Indonesian and more

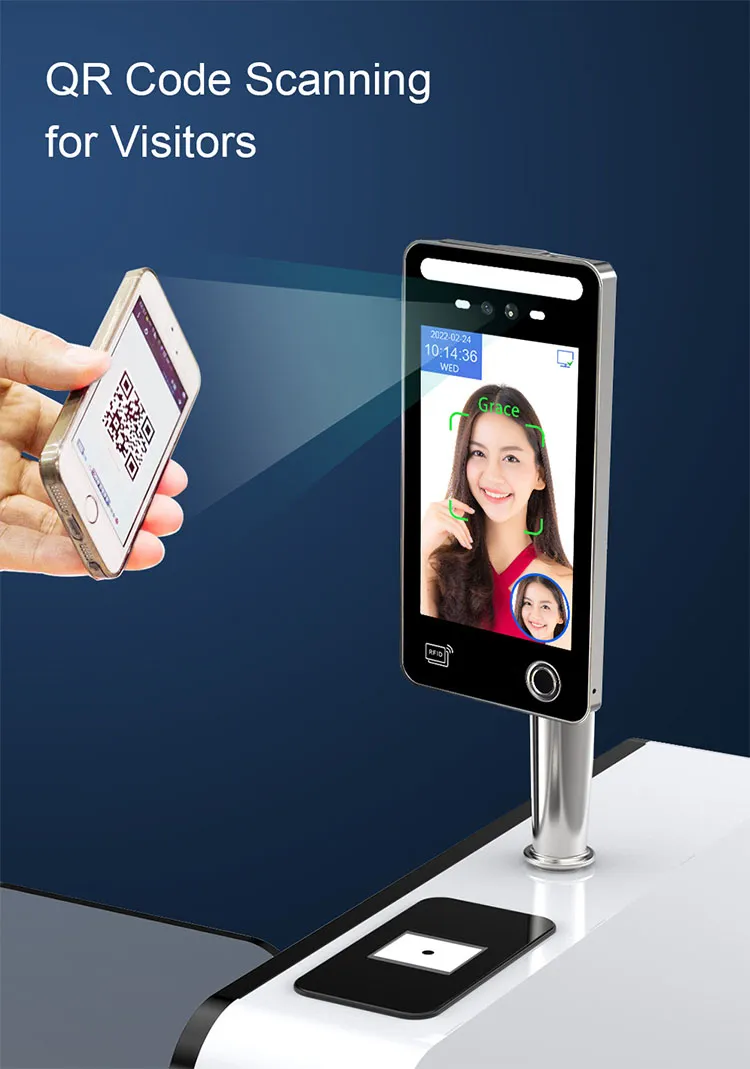

Identification style Visible Light Facial Recognition, PIN, RFID, Fingerprint, QR code, face & PIN combination, etc.
Face recognition time <0.2s
Detection range 0.5~2.5m
Magnetic door Support
Alarm output 1 set
WG 1 set WG In, out
Function
  • Able to work in dark, back light and strong light recognition, support for multiple people to recognize at the same time.
  • Face, fingerprint, IC/ID card and password combination attendance ways.
  • Support secondary development, provide SDK package and remote technical support.

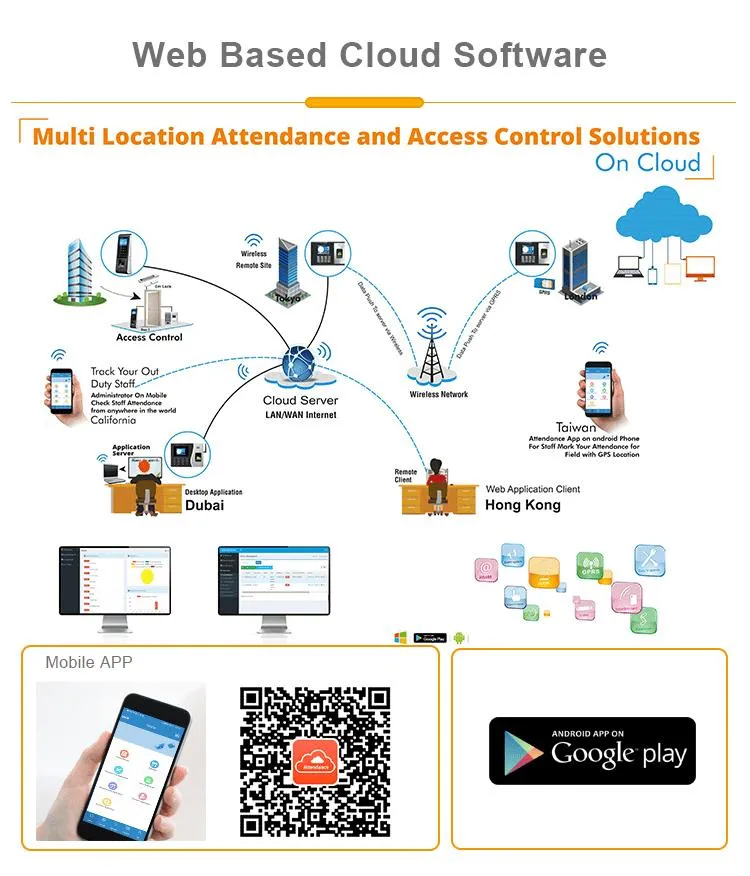

  • Provide local software and cloud system software.
  • 3 Recognition Distance Mode: Long (2.5m) / Middle (1.5m) / Short (0.5m).

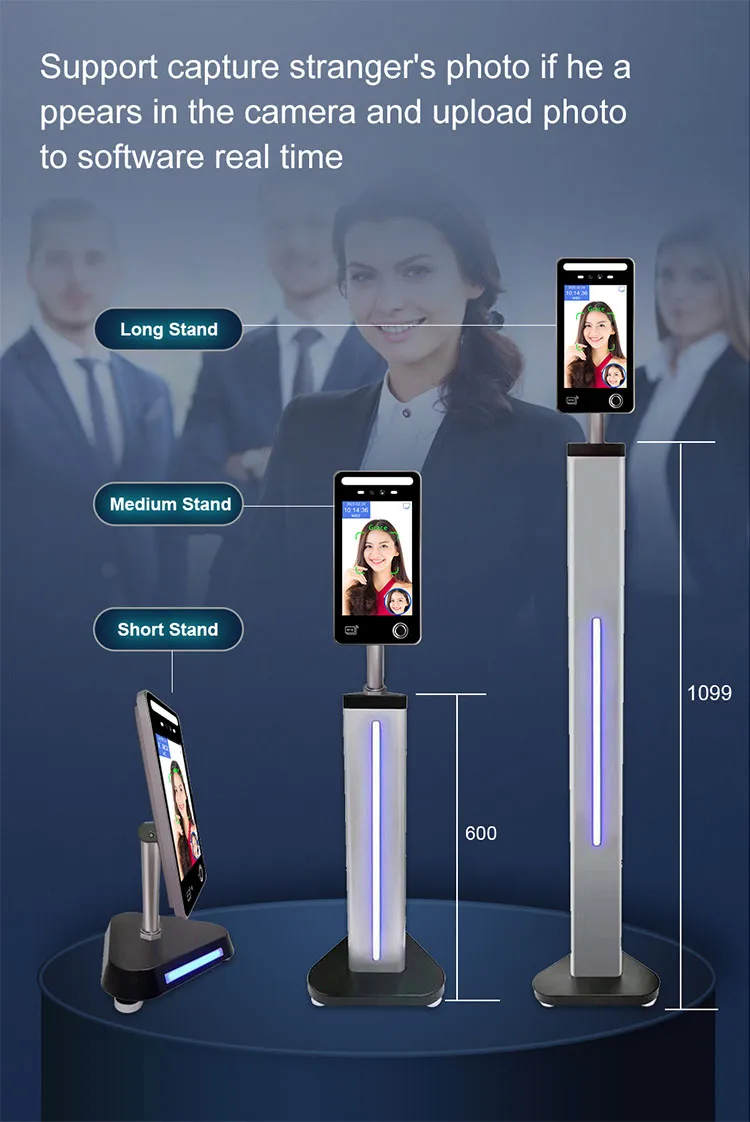

  • Stranger Mode: Capturing and recording strangers.
  • Free Time Attendance and Access Control System.
  • Customized Logo and Screen Saver.
  • Mask Detection.

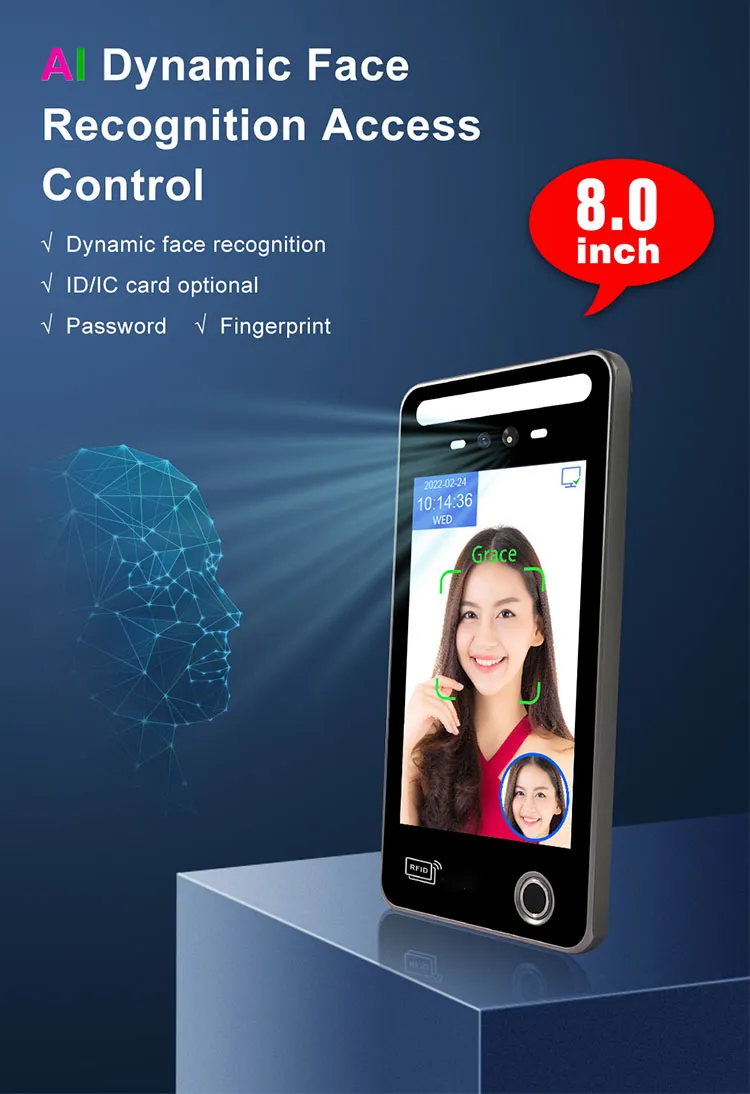

Detailed Photos
Frequently Asked Questions
What is the face recognition verification speed of this system?
The system features high-speed recognition, processing facial verification in less than 0.2 seconds.
Does the terminal support integration with other access control elements?
Yes, it features interface inputs and outputs including WG (Wiegand) In/Out, alarm output, and magnetic door support for comprehensive integration.
Can this device operate under challenging lighting conditions?
Absolutely. The device is designed to work reliably in dark environments, strong backlights, and intensive ambient light. It also supports multiple simultaneous face recognitions.
Is SDK provided for secondary software development?
Yes, a full SDK package is provided along with remote technical support to facilitate seamless secondary development.
What are the verification methods available?
Users can authenticate via facial recognition, PIN code, RFID cards (IC/ID options), fingerprints, QR codes, or a combination of face and PIN configurations.
Does this terminal support mask detection?
Yes, the system includes built-in mask detection functionality to support modern safety and health screening requirements.
