Automatic Sorting, Deep Learning, Batch Inspection

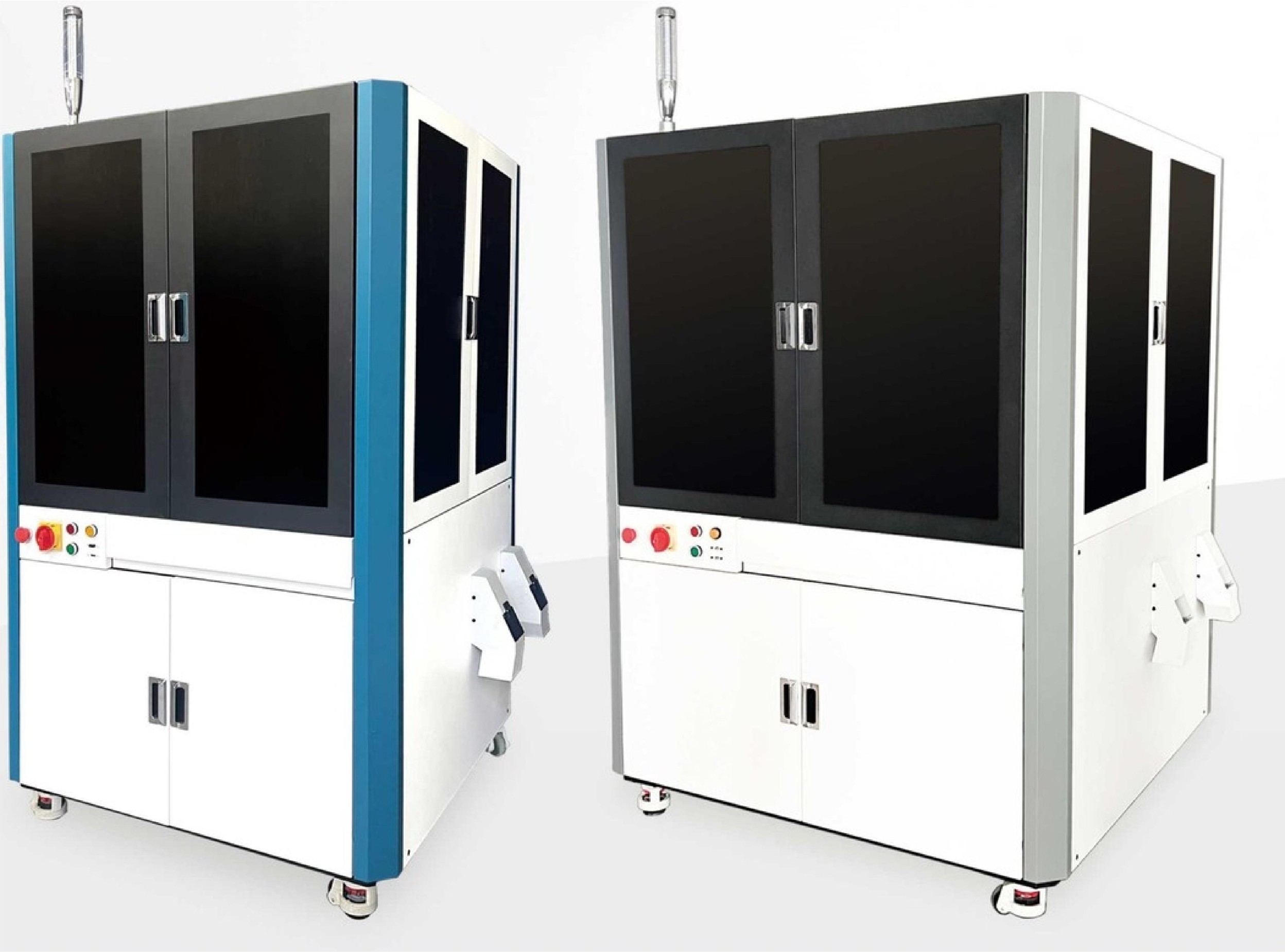

| Frame | Standard Configuration | Optional Configuration |
|---|---|---|
| Machine Frame |
WTX-SM650-B/G: 1100×1100×1800mm, Blue Column WTX-SM800-B/G: 1300×1300×1800mm, Blue Column |
Gray Column |
| Feeding System | Vibration Bowl Docking | Conveyor Belt Feeding |
| Unloading System | 2 Lower Discharge Ports |
1 Upper Side Conveyor Discharge (2 Ports) Upper & Lower Side Discharge (2 Ports) |
| Glass Turntable |
WTX-SM650-B/G: 650mm Flat Glass WTX-SM800-B/G: 800mm Flat Glass |
650mm Standard/Non-standard Grooved Glass 800mm Standard/Non-standard Grooved Glass |
| Industrial Camera | 1.3 Megapixel (1.3MP) Optional | - |
| Industrial Lens | FA Lenses with 8-50mm Focal Length Optional | Optional |
| Vision Light Source | 70 Ring Lights Optional | - |
| IPC | Intel i5, 8+256, 6 Network Ports 12th Gen | Intel i5, 8+256+RTX3060, 7 Network Ports, etc. |
| Monitor | 21.5-inch, 1920×1080 Resolution | N/A |
| Algorithm Supports | Supports 1-12 Channels (excluding Deep Learning) | Supports 1-12 Channels (including Deep Learning) |
| Electrical Control System | Dedicated Controller for Visual Screening Machines | N/A |
| Rotating Mechanism | Motor-Flange Type Planetary Gear Reducer | N/A |
How many cameras do the WTX-SM650-B/G and WTX-SM800-B/G support?
The WTX-SM650-B/G visual screening machine supports 1 to 8 industrial cameras, whereas the WTX-SM800-B/G model supports 1 to 12 industrial cameras.
What is the highest inspection accuracy this screening machine can achieve?
The visual screening system offers high-precision testing with an inspection accuracy of up to 0.01mm.
What is the maximum speed of the sorting machine?
The machine is capable of inspecting up to 1500 pieces per minute. The exact speed depends heavily on the specific size and configuration of the products being inspected.

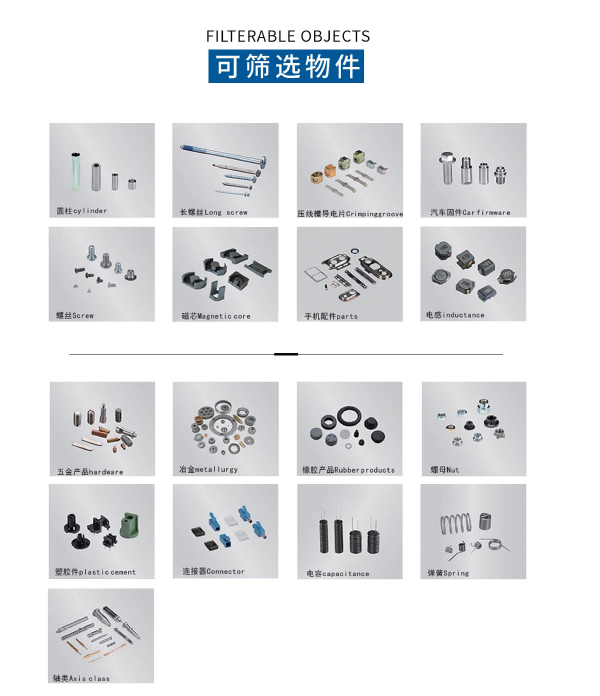

What types of fasteners are compatible with this equipment?
It is suitable for any fasteners that can stand or lie stably on a flat surface, including screws, nuts, turned parts, stamped parts, injection-molded parts, cold-headed parts, and other similar industrial fasteners.
Does the software support deep learning algorithms?
Yes, deep learning algorithm support is available as an optional configuration. Under the standard configuration, it supports 1-12 channels excluding deep learning, which can be upgraded to support deep learning functions.
What are the available feeding and unloading configurations?
The standard configuration features vibration bowl docking for feeding and 2 lower discharge ports for unloading. Optional setups include conveyor belt feeding, and alternative upper or lower side discharge ports.
