Conveyor Pallet Wrapping System Featuring 500mm Stretch Film and Ramp Addition

Basic Info Overview

Model NO.HZ2000F-ZX

Applicable GoodsWooden

TypePrestretching Wrapping Machine

Driven TypeElectric

ApplicationMedical, Electrical & Electronics, Machinery

Automatic GradeSemi-Automatic

Inclusion DegreeHalf Winding Machine

StructurePallet Wrapping Machine

Film Frame StructurePre Tension

SeriesL Series

RampCan Add

Stretch Film Width500mm

Packaging MaterialsStretch Film

Packing Speed0-12rpm

Packaging Efficiency20-30pallet/H

PowerElectricity

Key WordsPallet Wrapping Machine

Over Size2545*1650*2400mm

Others NamePallet Packing Machine

Diameter of Turntable1650mm

Package Height2.0m

FunctionPre-Stretch

Load2t

Voltage220V50Hz

Transport PackageWooden

SpecificationHZ1650F-ZX

OriginChina

HS Code8422400090

Production Capacity500/Month

Product Description

Conveyor Pallet Wrapping System Featuring 500mm Stretch Film and Ramp Addition

Comprehensive Product Introduction: A revolutionary, fully automatic film feeding and cutting pallet wrapping machine, designed specifically for large-scale cargo transportation in shipping containers and bulk material pallet wrapping. This advanced system caters to a myriad of industries such as chemicals, electronics, food, beverages, and paper making. Key features include: An easy-to-initiate automatic wrapping process. Compatibility with forklifts or remote controls for seamless operation. A high degree of automation ensures operational simplicity. Minimal manual intervention is needed for film installation, with autonomous film feeding and cutting features.

Model Parameter	Details Specification
Model	HZ1650F-ZX
Pallet diameter	1650MM
Max. load capacity	2T
Max. packing height	2000mm

(Note: For cargo exceeding 3T, customization options are available. Masts taller than 2.4m come equipped with frontal masts. Please contact customer service for further details.)

Product Parameters

Configuration Specification	Standard Value Details
Main configurations	1PLC / 3 Frequency converters / 3 Gearmotor
Wrapping specifications	(800-1200) * (800-1200)mm
Packing height	2000mm
Packing efficiency	20-40 pallet/h
Turntable speed	0-12RPM (adjustable)
Turntable size	Diameter: 1650mm / Height: 330mm
Max. load capacity	2T
Weight	750kg
Over Size	2545 * 1650 * 2400mm
Power	220V/50HZ

The main features of the fully automatic pre-stretch wrapping machine are: manual start of the automatic packaging process, with a remote control device, which can be automatically operated on a forklift or remotely controlled; with an automatic upper and lower film mechanism; only manual film loading is required, and the entire roll of film is automatically and continuously packaged; making it easy to operate, highly automated, and reducing the number of operators, etc.

Product Gallery

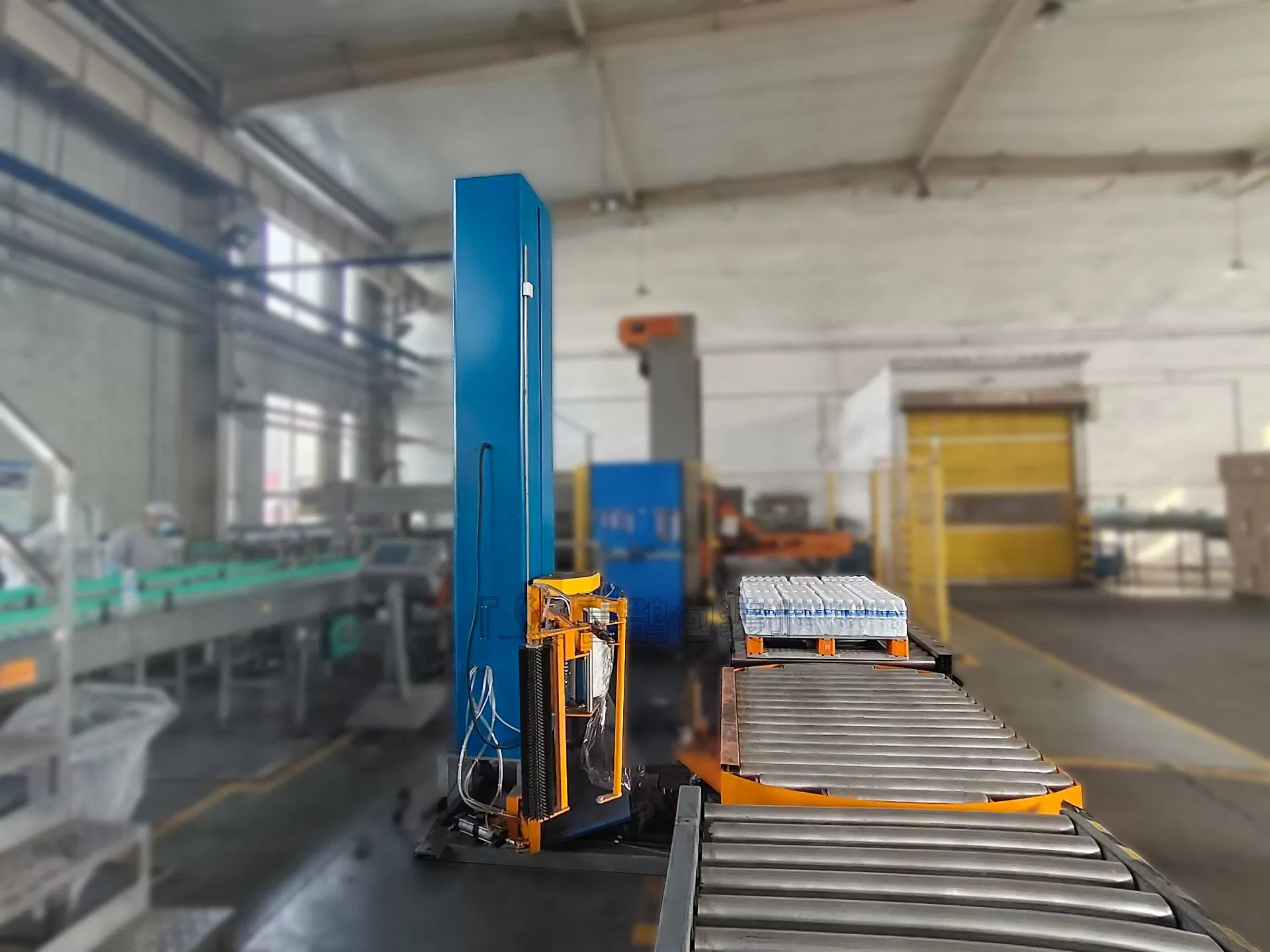

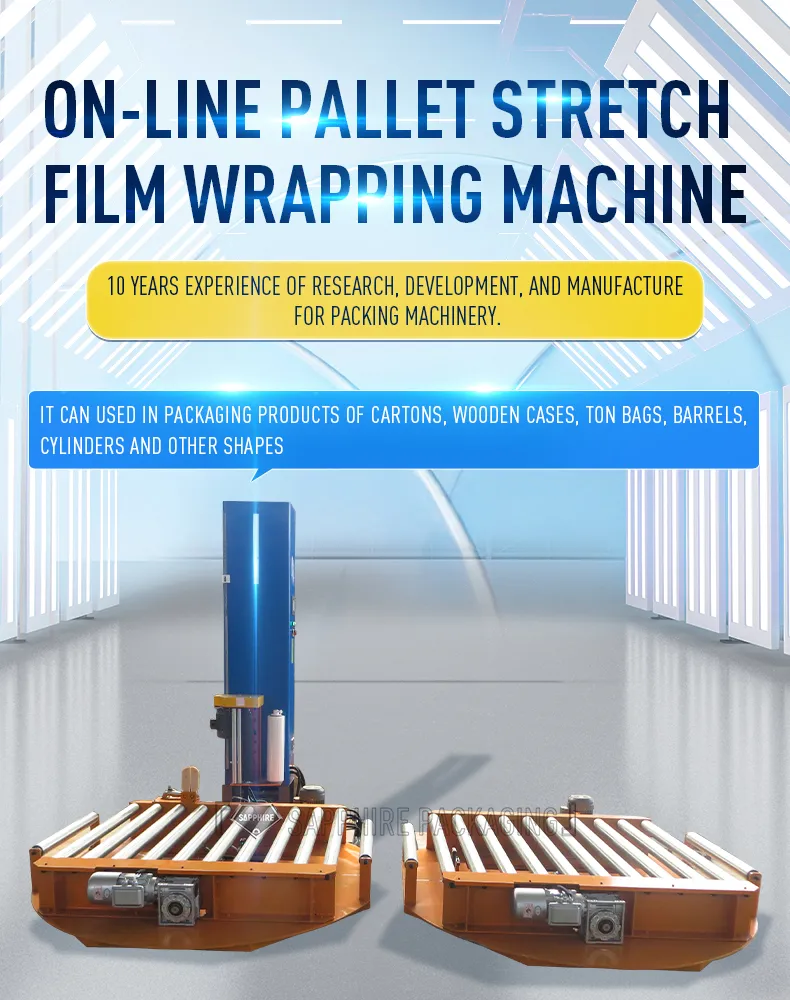

Conveyor Pallet Wrapping System Front view

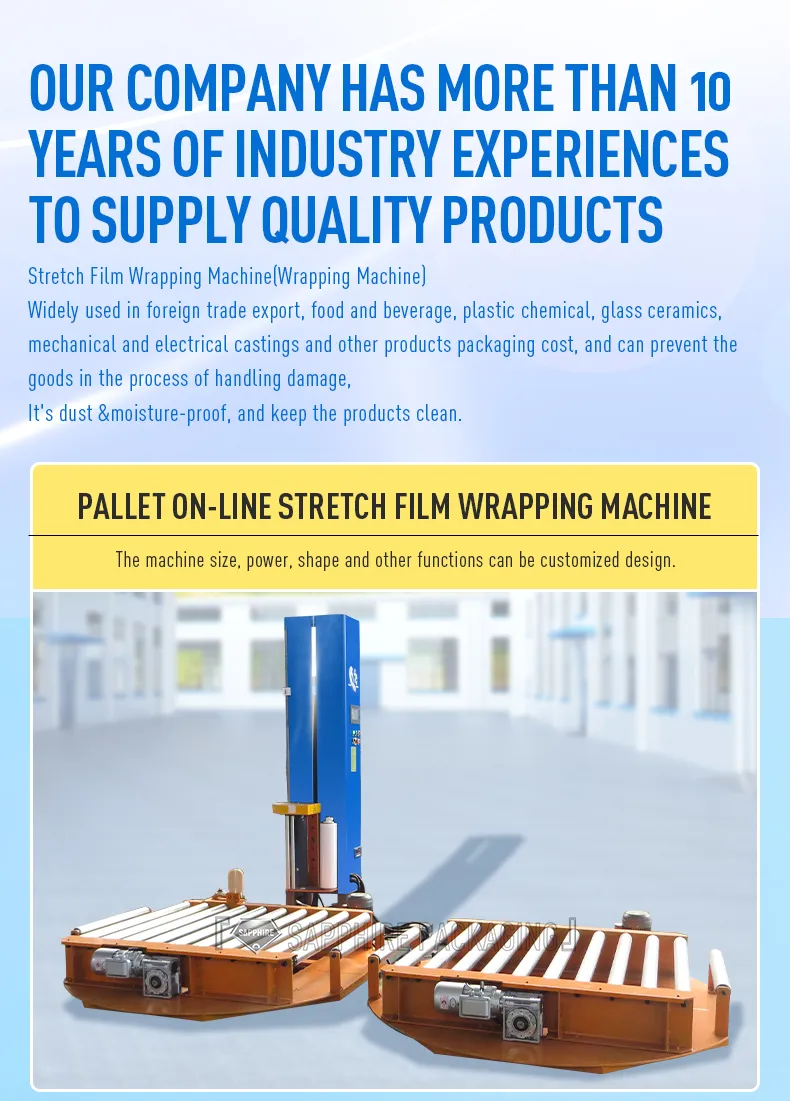

Conveyor Pallet Wrapping System Detail view

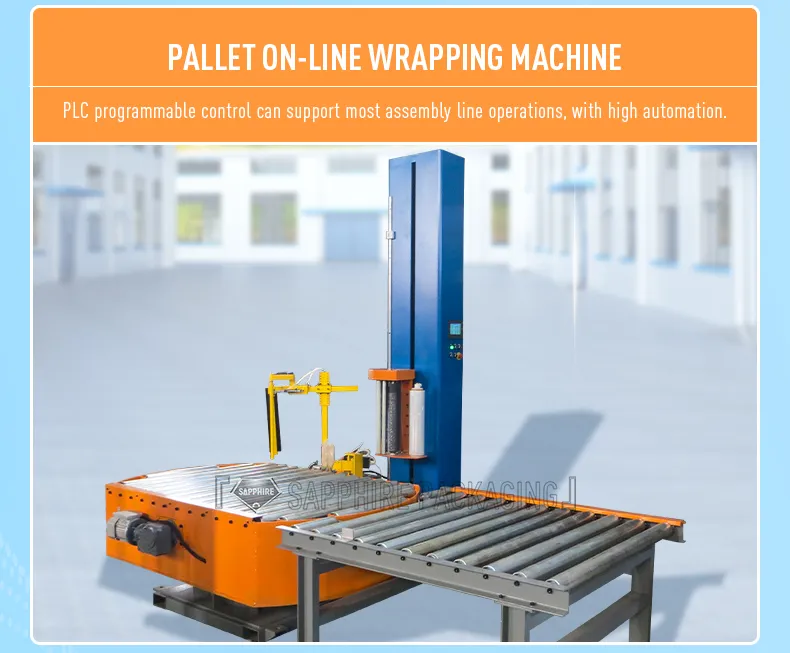

Conveyor Pallet Wrapping System Turntable detail

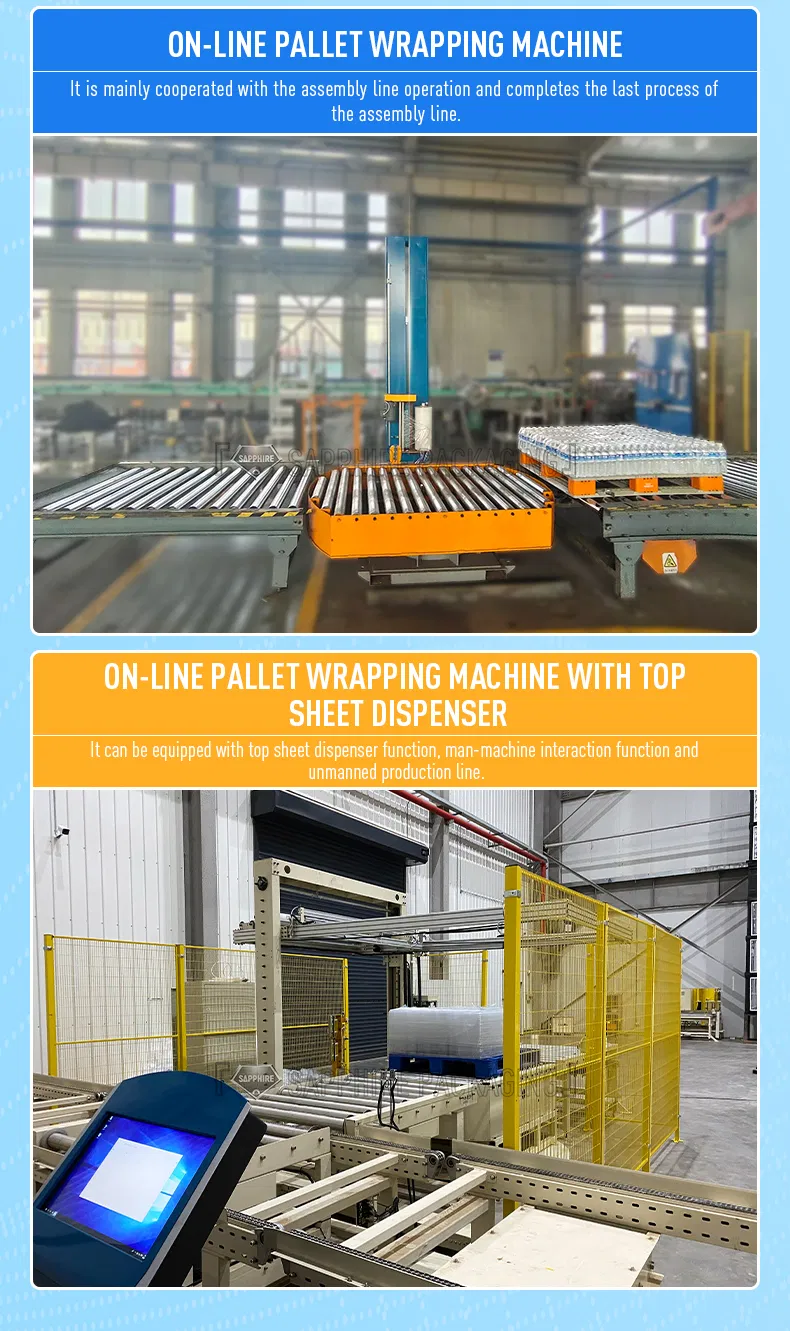

Conveyor Pallet Wrapping System Mechanism

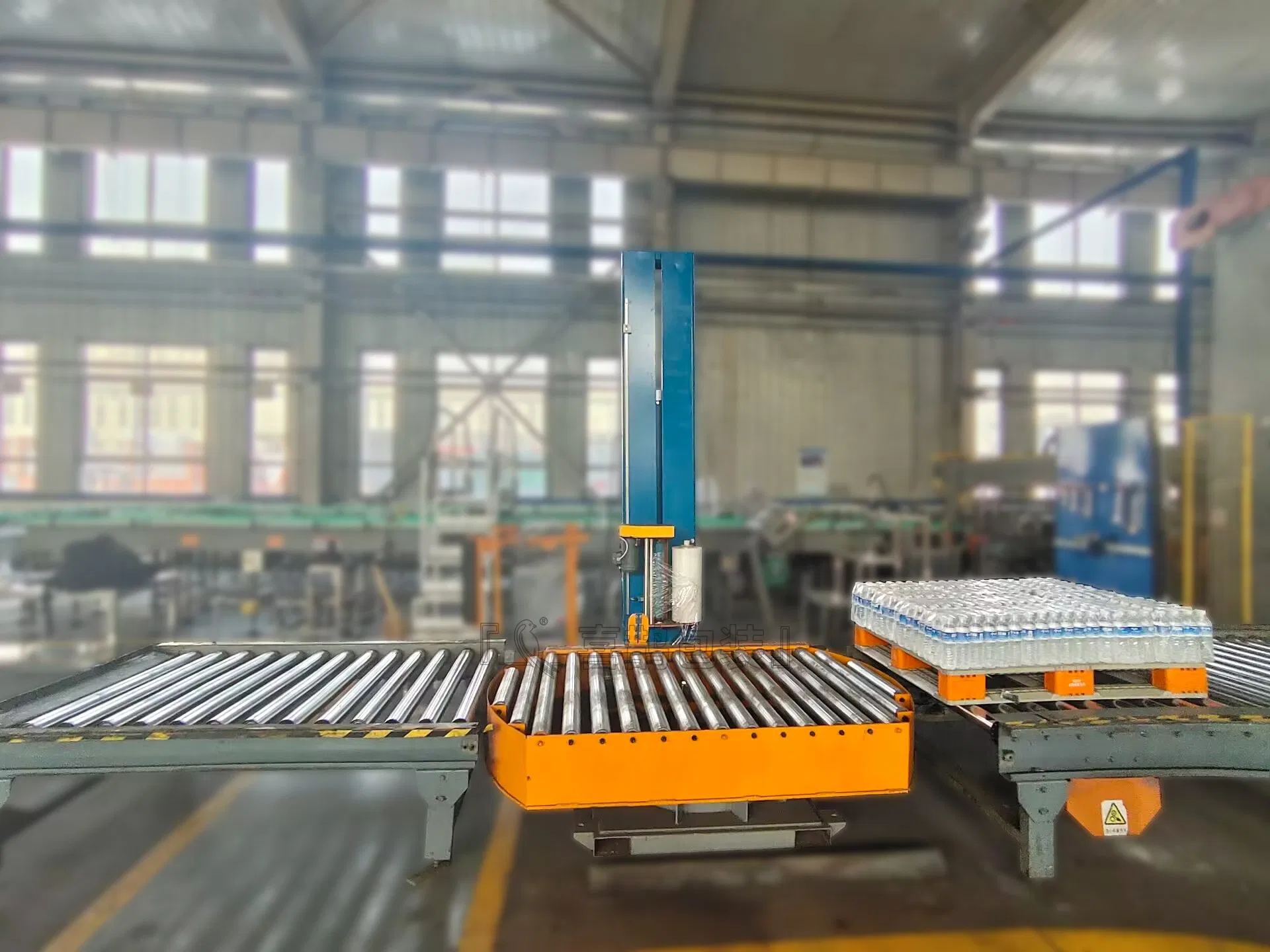

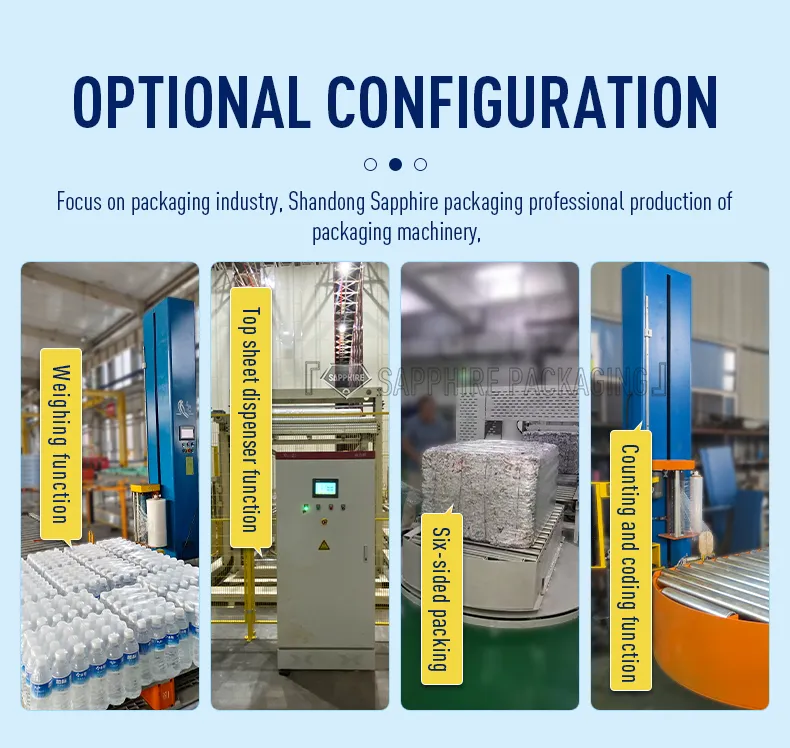

Conveyor Pallet Wrapping System Assembly line

Industry Capability & Profile

With over two decades of unwavering dedication in the manufacturing and R&D of packaging machinery, our production base boasts a highly developed and mature manufacturing system.

Our extensive portfolio features over 50 uniquely designed products across 6 distinct series, including Pallet Wrapping Machines, Vertical Coil Wrapping Machines, Horizontal Coil Wrapping Machines, 90° Upender Machines, Horizontal Wrapping Machines, and Heat Shrink Packaging Machines.

Adhering rigorously to stringent quality control guidelines, we ensure that every piece of equipment meets the highest standards, providing users with unparalleled peace of mind.

Our products enjoy robust export success across Asia, Southeast Asia, Europe, and various other regions. With extensive export experience and a strong customer base, we offer customized, safe, and efficient machines tailored precisely to your needs. We also provide OEM services. With our exceptional products and competitive pricing, we eagerly anticipate establishing long-term collaborations with you.

Premium Service & Support

One-Year Quality Guarantee: Our top-tier Quality Guarantee Period extends for one full year.
Overseas Technical Assistance: Overseas Engineer service is readily available to cater to your specific installation and operational needs.
Continuous Lifetime Support: We offer unwavering Technical Support via phone, email, or video assistance.
Flexible Resolution Policies: We assure our customers that if any issues arise within the Guarantee Period, we will promptly repair the products within 10 days, offer a full refund, or reproduce the products at no additional cost.

Compliance & Certifications

Packaging & Shipping

Frequently Asked Questions

Q1: What are the primary industries that use this pallet wrapping system?

A: This automatic pre-stretch wrapping system is widely applied in chemical, electrical & electronics, machinery, food, beverage, and paper-making industries, particularly for large-scale container cargo and bulk material shipping.

Q2: What is the packaging efficiency of the HZ1650F-ZX pallet wrapping machine?

A: The machine achieves a wrapping efficiency of 20 to 40 pallets per hour, utilizing an adjustable turntable rotation speed of 0-12 RPM to match varying processing requirements.

Q3: Can the wrapping system handle loads heavier than 2 Tons?

A: While the standard max load capacity is 2 tons (2T), customization options are available for cargo exceeding 3 tons. Masts taller than 2.4 meters can also be tailored and equipped with frontal support structures.

Q4: Does the wrapping system require manual film cutting?

A: No. The machine features an automatic upper and lower film mechanism with autonomous film feeding and cutting capabilities. Operators only need to install the initial film roll.

Q5: Can this pallet wrapper be controlled remotely by forklift operators?

A: Yes, it is equipped with a remote control device, allowing forklift operators to start, stop, and operate the automatic wrapping cycle without needing to leave the forklift cabin.

Q6: What after-sales and warranty terms are guaranteed for overseas buyers?

A: We provide a comprehensive one-year quality guarantee. During this period, if any issues arise, we promise quick repair solutions within 10 days, full refunds, or equipment reproduction. Ongoing technical support is also provided via call, email, or video.
